<h1 style="text-align:center;">
|
|
|
MachOne 多功能多尺度生物力学测试分析系统 之
|
|
|
</h1>
|
|
|
<p>
|
|
|
<h1 style="text-align:center;">
|
|
|
<span style="color:#E56600;">组织材料植入物塔接结合力测试分析系统 </span>
|
|
|
<br>-多载荷多物理场耦合微观力学性能原位测试系统
|
|
|
</h1>
|
|
|
<p style="text-align:center;">
|
|
|
<img src="/attached/image/20191118/20191118121939_148.jpg" alt="" /> </p>
|
|
|
<p align="left">通过粘合剂粘合在一起的两层材料被迫彼此滑动（wu剥离），从而在粘合剂层中引起剪切，并终使其破裂。 粘合剪切模量可以通过多种测试方法进行表征。 两种常见的方法是搭接（测试平面剪切以找到剪切模量和剪切强度）和对接（测试拉伸屈服以找到剪切模量和弹塑性参数）。 平面剪切测试意味着移动的压板在与粘结相同的平面中移动。 在这些配置下，样品被假定为一个完美的矩形，其顶部和底部表面完美地附着在两个平坦的基板上（防滑边界条件），尽管此配置也可以记录粘滑的力与位移数据 物理粘附。</p>
|
|
|
<p align="left">典型应用：</p>
|
|
|
<p align="left">1、夹芯夹层材料剪切性能测试（ASTM C273/C273M - Standard Test Method for Shear Properties of Sandwich Core Materials）</p>
|
|
|
<p align="left">2、ASTM D5656-拉伸载荷剪切作用下厚粘剂金属搭剪连接的应力应变行为测试</p>
|
|
|
<p align="left">3、ASTM F2664-评估细胞与生物材料表面附着力</p>
|
|
|
<p align="left">4、通过拉伸载荷测定搭接剪切状态下组织粘合剂强度特性</p>
|
|
|
<p align="left"> </p>
|
|
|

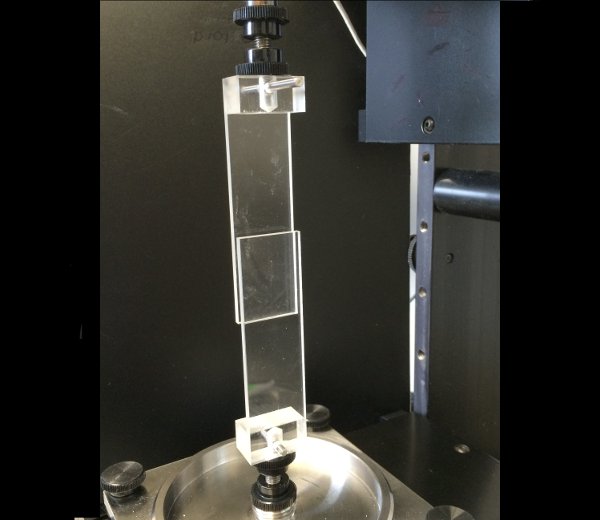

<p align="left"><strong>塔接夹具-低力（带有凝胶制备室）</strong></p>
|
|
|
<p align="left"><img src="/images/BMMT_MA133-1_Large (1).jpg" width="600" height="520"><img src="/images/BMMT_MA133-3_Large.jpg" width="600" height="520"></p>
|
|
|
<p align="left">测试胶粘剂的质量时，测试胶粘剂沿粘合界面的抗剪切力的重要性能。 在这种情况下，重要的是小化层之间的剥离，这可能会大大降低粘结的耐搭接剪切强度。 基于专为在硬质塑料和金属部件中实现牢固粘合而设计的夹具，这些夹具已针对测试生物材料或组织之间的粘合特性进行了化。 它带有一个特殊的固定器，该固定器旨在促进直接注入两个压板之间的水凝胶的原位制备，以大程度地减少暴露于空气中。 在水凝胶的情况下，还可以测量凝胶的剪切强度及其与压板材料的粘附性。</p>
|
|
|
<p align="left">点与特点<br>
|
|
|
该附件的设计便于清洁和消毒。<br>
|
|
|
设计用于与生理盐水溶液接触<br>
|
|
|
易于组装和安装在测试仪上<br>
|
|
|
由生物相容性材料制成<br>
|
|
|
由透明材料制成，方便组装</p>
|
|
|
<p align="left">技术指标：<br>
|
|
|
材质：亚克力<br>
|
|
|
高度：80毫米<br>
|
|
|
宽度：25毫米<br>
|
|
|
厚度：3毫米（凝胶成型）<br>
|
|
|
下附件：1 / 4-28外螺纹<br>
|
|
|
上附件：1 / 4-28外螺纹</p>
|
|
|
<p style="text-align:center;">
|
|
|
<img src="/attached/image/20191118/20191118122633_203.jpg" alt="" width="600" height="336" title="" align="" />
|
|
|
</p>
|
|
|
<p style="text-align:center;">
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"> </p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;"><span class="STYLE1"><strong>该系统是能模块化集成压缩、张力、剪切、摩擦、扭转和2D/3D压痕、3D轮廓及多力混合耦连测试的一体化微观力学测试装置。能对生物组织、聚合物、凝胶、生物材料、胶囊、粘合剂和食品进行精密可靠的机械刺激和表征。允许表征的机械性能包括刚度、强度、模量、粘弹性、塑性、硬度、附着力、肿胀和松弛位移控制运动。</strong></span>
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:36px;">
|
|
|
系统特点
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;">
|
|
|
<b>1、适用样品范围广：</b>
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;">
|
|
|
<b>1.1、从骨等硬组织材料到脑组织、眼角膜等软组织材料</b>
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#888888;font-size:14px;">
|
|
|
<b>1.2、从粗椎间盘的样品到j细纤维丝</b>
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
<b>2、通高量压痕测试分析</b>
|
|
|
</p>
|
|
|
<b>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
2.1、三维法向压痕映射非平面样品整个表面的力学特性
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
2.2、48孔板中压痕测试分析
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
3、力学类型测试分析功能齐
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
模块化<strong>集成压缩、张力、剪切、摩擦、扭转、穿刺、摩擦和2D/3D压痕、3D表面轮廓、3D厚度</strong>等各种力学类型支持,微观结构表征及动态力学分析研究
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
4、高分辨率:
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
4.1、位移分辨率达0.1um
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
4.2、力分辨率
|
|
|
达0.025mN
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
5、
|
|
|
行程范围广：50-250mm
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
6、体积小巧、可放入培养箱内
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
7
|
|
|
、高变分辨率成像跟踪分析
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
8、多轴向、多力偶联刺激
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
9、活性组织电位分布测试分析
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
10、产品成熟，文献量达
|
|
|
上千篇
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#ff0000;font-size:14px;">
|
|
|
<p>
|
|
|
<img title="" alt="" src="http://www.bio-goods.com/attached/image/20190728/20190728233302_695.jpg" width="1024" height="591" /><img title="" alt="" src="http://www.bio-goods.com/attached/image/20190728/20190728233303_504.jpg" width="1024" height="617" />
|
|
|
</p>
|
|
|
<p>
|
|
|
<br />
|
|
|
</p>
|
|
|
<p>
|
|
|
<br />
|
|
|
</p>
|
|
|
<p>
|
|
|
<img alt="" src="http://www.bio-goods.com/attached/image/20190728/20190728233339_413.jpg" /><img alt="" src="http://www.bio-goods.com/attached/image/20190728/20190728233339_582.jpg" />
|
|
|
</p>
|
|
|
<p>
|
|
|
<br />
|
|
|
</p>
|
|
|
<h1>
|
|
|
<b></b>
|
|
|
</h1>
|
|
|
</p>
|
|
|
<p style="text-align:justify;text-indent:28px;font-family:微软雅黑;color:#FF0000;font-size:14px;">
|
|
|
</p>
|
|
|
</b>
|
|
|
</p>
|
|
|
<p style="text-align:left;">
|
|
|
<span style="background-color:#E56600;font-size:18px;">结合黏合黏合力测试分析</span>
|
|
|
</p>
|
|
|
<p style="text-align:left;">
|
|
|
<span style="background-color:#E56600;font-size:18px;"><img src="/attached/image/20191118/20191118122311_168.jpg" alt="" /><img src="/attached/image/20191118/20191118122311_204.jpg" alt="" /><br />
|
|
|
</span>
|
|
|
</p>
|
|
|
<p style="text-align:left;">
|
|
|
<span style="background-color:#E56600;font-size:18px;">
|
|
|
<div class="grid-row pb-50 mt-100">
|
|
|
<p>
|
|
|
<h2 class="related-ressource-title" style="font-family:Montserrat, sans-serif;color:#0176C6;font-size:22px;">
|
|
|
<span style="font-size:18px;background-color:#E56600;"><span style="background-color:#FFFFFF;">点与特点:</span><br />
|
|
|
<span style="background-color:#FFFFFF;">该附件的设计便于清洁和消毒。</span><br />
|
|
|
<span style="background-color:#FFFFFF;">可以在生理盐水溶液中测试</span><br />
|
|
|
<span style="background-color:#FFFFFF;">易于组装和安装在测试仪上</span><br />
|
|
|
<span style="background-color:#FFFFFF;">由生物相容性材料制成</span><br />
|
|
|
<span style="background-color:#FFFFFF;">由透明材料制成，方便组装</span><br />
|
|
|
<br />
|
|
|
</span>
|
|
|
</h2>
|
|
|
<h2 class="related-ressource-title" style="font-family:Montserrat, sans-serif;color:#0176C6;font-size:22px;">
|
|
|
<span style="font-size:18px;background-color:#E56600;">结合黏合黏合力测试分析</span>相关文献<br />
|
|
|
</h2>
|
|
|
</p>
|
|
|
</div>
|
|
|
<div class="accordion-wrap" id="related_literature_deploy">
|
|
|
<div class="node" id="2403740000000100112" style="background:#292B2E;">
|
|
|
<div class="preface-wrap" style="font-size:16px;padding:0px 120px 0px 16px;color:#FFFFFF;font-family:montserratLight;">
|
|
|
<div class="preface" style="padding:16px 0px;">
|
|
|
<span style="color:#FF9900;">ASTM C273/C273M - Standard Test Method for Shear Properties of Sandwich Core MaterialsASTM International, West Conshohocken, PA, 2016, www.astm.org</span>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node-content" style="padding:16px;color:#292B2E;">
|
|
|
<div class="text-wrap" style="vertical-align:top;color:#5E6061;font-family:MontserratLight, sans-serif;">
|
|
|
<div>
|
|
|
<span style="color:#FF9900;">Significance and Use</span><br />
|
|
|
<br />
|
|
|
<span style="color:#FF9900;">5.1 The core shear properties are fundamental properties that are used in the design of sandwich panels. This test method provides information on the force-deflection behavior of sandwich constructions or cores when loaded in shear parallel to the plane of the facings. From a complete force-deflection curve, it is possible to compute core shear stress at...</span><a href="https://www.4dcell.com/publications/astm-c273-c273m---standard-test-method-for-shear-properties-of-sandwich-core-materials/" class="black more"><span style="color:#FF9900;">Read More</span></a>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="plus">
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node" id="2403740000000100126" style="background:#292B2E;">
|
|
|
<div class="preface-wrap" style="font-size:16px;padding:0px 120px 0px 16px;color:#FFFFFF;font-family:montserratLight;">
|
|
|
<div class="preface" style="padding:16px 0px;">
|
|
|
<span style="color:#FF9900;">ASTM D5656 - Standard Test Method for Thick-Adherend Metal Lap-Shear Joints for Determination of the Stress-Strain Behavior of Adhesives in Shear by Tension LoadingASTM International, West Conshohocken, PA, 2010, www.astm.org</span>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node-content" style="padding:16px;color:#292B2E;">
|
|
|
<div class="text-wrap" style="vertical-align:top;color:#5E6061;font-family:MontserratLight, sans-serif;">
|
|
|
<span style="color:#FF9900;">Significance and Use</span><br />
|
|
|
<br />
|
|
|
<span style="color:#FF9900;">This test method can be used to determine the stress-strain properties of an adhesive in shear and to establish the proportional-limit of the stress-stain relationship. This data may be useful for the design and analysis of adhesively bonded joints.</span><br />
|
|
|
<span style="color:#FF9900;">This test method is not intended to determine adhesion characteristics of an adhesive to a particular substrate;...</span><a href="https://www.4dcell.com/publications/astm-d5656---standard-test-method-for-thick-adherend-metal-lap-shear-joints-for-determination-of-the-stress-strain-behavior-of-adhesives-in-shear-by-tension-loading/" class="black more"><span style="color:#FF9900;">Read More</span></a>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="plus">
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node" id="2403740000000100147" style="background:#292B2E;">
|
|
|
<div class="preface-wrap" style="font-size:16px;padding:0px 120px 0px 16px;color:#FFFFFF;font-family:montserratLight;">
|
|
|
<div class="preface" style="padding:16px 0px;">
|
|
|
<span style="color:#FF9900;">ASTM F2664 - Standard Guide for Assessing the Attachment of Cells to Biomaterial Surfaces by Physical MethodsASTM International, West Conshohocken, PA, 2011, www.astm.org</span>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node-content" style="padding:16px;color:#292B2E;">
|
|
|
<div class="text-wrap" style="vertical-align:top;color:#5E6061;font-family:MontserratLight, sans-serif;">
|
|
|
<span style="color:#FF9900;">Significance and Use</span><br />
|
|
|
<br />
|
|
|
<span style="color:#FF9900;">Cell attachment or, lack of it, to biomaterials is a crcal factor affecting the performance of a device or implant. Cell attachment is a complicated, time-dependent, process involving significant morphological changes of the cell and deposon of a bed of extracellular matrix. Details of the adhesive bond that is formed have been reviewed by, for example,...</span><a href="https://www.4dcell.com/publications/astm-f2664---standard-guide-for-assessing-the-attachment-of-cells-to-biomaterial-surfaces-by-physical-methods/" class="black more"><span style="color:#FF9900;">Read More</span></a>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="plus">
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node" id="2403740000000100197" style="background:#292B2E;">
|
|
|
<div class="preface-wrap" style="font-size:16px;padding:0px 120px 0px 16px;color:#FFFFFF;font-family:montserratLight;">
|
|
|
<div class="preface" style="padding:16px 0px;">
|
|
|
<span style="color:#FF9900;">ASTM F2255-05 - Standard Test Method for Strength Properties of Tissue Adhesives in Lap-Shear by Tension LoadingASTM International, West Conshohocken, PA, 2015, www.astm.org</span>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node-content" style="padding:16px;color:#292B2E;">
|
|
|
<div class="text-wrap" style="vertical-align:top;color:#5E6061;font-family:MontserratLight, sans-serif;">
|
|
|
<div>
|
|
|
<span style="color:#FF9900;">Significance and Use</span>
|
|
|
</div>
|
|
|
<div>
|
|
|
<br />
|
|
|
</div>
|
|
|
<div>
|
|
|
<span style="color:#FF9900;">4.1 Materials and devices that function at least in part by adhering to living tissues are finding increasing use in surgical procedures either as adjuncts to sutures and staples, or as frank replacements for those devices in a wide variety of medical procedures. While the nature and magnitude of the forces involved varies greatly with indication...</span><a href="https://www.4dcell.com/publications/astm-f2255-05---standard-test-method-for-strength-properties-of-tissue-adhesives-in-lap-shear-by-tension-loading/" class="black more"><span style="color:#FF9900;">Read More</span></a>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="plus">
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node" id="2403740000000100198" style="background:#292B2E;">
|
|
|
<div class="preface-wrap" style="font-size:16px;padding:0px 120px 0px 16px;color:#FFFFFF;font-family:montserratLight;">
|
|
|
<div class="preface" style="padding:16px 0px;">
|
|
|
<span style="color:#FF9900;">MachOne - Lap Shear Testing (MA056-SOP13-D v2)Gilbert N and Quenneville E Inc. Laval (QC), Canada, Effective Date: December 19th, 2016</span>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node-content" style="padding:16px;color:#292B2E;">
|
|
|
<div class="text-wrap" style="vertical-align:top;color:#5E6061;font-family:MontserratLight, sans-serif;">
|
|
|
<span style="color:#FF9900;">Purpose: This procedure describes a standard method to realize a lap shear test on an adhesive between two substrates using the MachOne mechanical tester. </span><br />
|
|
|
<br />
|
|
|
<span style="color:#FF9900;">Scope: This procedure can be used for lap shear adhesion testing. Some parameters must be specified in an associated protocol/report: thickness of the substrates, composon of the adhesive (molecular weight, molecular...</span><a href="https://www.4dcell.com/publications/mach-1---lap-shear-testing-ma056-sop13-d-v2/" class="black more"><span style="color:#FF9900;">Read More</span></a>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="plus">
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
<div class="line" style="background:#FFFFFF;">
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node open" id="2403740000000100199" style="background:#FFFFFF;">
|
|
|
<div class="preface-wrap" style="font-size:16px;padding:0px 120px 0px 16px;color:#FFFFFF;font-family:montserratLight;">
|
|
|
<div class="preface" style="padding:16px 0px;color:#292B2E;">
|
|
|
<span style="color:#FF9900;">MachOne Analysis - Extraction of Mechanical Parameters Following Lap Shear Test (SW186-SOP09-D v2)Gilbert N and Quenneville E Inc. Laval (QC), Canada, Effective Date: December 19th, 2016.</span>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="node-content" style="padding:16px;color:#292B2E;">
|
|
|
<div class="text-wrap" style="vertical-align:top;color:#5E6061;font-family:MontserratLight, sans-serif;">
|
|
|
<div>
|
|
|
<span style="color:#FF9900;">Purpose </span><br />
|
|
|
<span style="color:#FF9900;">This procedure describes a method to extract mechanical parameters from MachOne result files generated following lap shear testing on an adhesive between two substrates as per MA056-SOP13-D. </span>
|
|
|
</div>
|
|
|
<div>
|
|
|
<br />
|
|
|
<span style="color:#FF9900;">Scope </span><br />
|
|
|
<span style="color:#FF9900;">This procedure can be applied using any MachOne result file obtained following a lap shear test on a sample. Some parameters must...</span><a href="https://www.4dcell.com/publications/mach-1-analysis---extraction-of-mechanical-parameters-following-lap-shear-test-sw186-sop09-d-v2/" class="black more"><span style="color:#FF9900;">Read More</span></a>
|
|
|
</div>
|
|
|
</div>
|
|
|
<div class="plus">
|
|
|
<div class="line" style="background:#292B2E;font-family:Montserrat, sans-serif;font-size:14px;">
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
</div>
|
|
|
