Ismatec泵系列现货促销
ISMATEC SA成立于1964年,享誉精度和可靠性。IDEX集团旗下的ISMATEC SA创建於1964年，其生产的紧密实验室设备和平面安装的OEM泵在市场和技术上都处于前列地位。单通道和高至24为多通道泵头、流速从0.4微升/分钟至13升/分钟不等。12滚柱泵头可以确保wu脉冲泵吸，同时特别设计的滚柱可以确保细胞敏感介质得以柔和处理。所以wu论是实验室、工业制造还是现场应用，wu论是*终用户还是原始设备制造商（OEM），Ismatec管式泵系统将是您里想选择。
二、ISMATEC产品介绍
1、ISMATEC管泵
技术参数：
●提供多达十几种不同的管道材料
对于多通道泵（多为24个通道），每个通道可以以不同的流速du立且同时的传输各种不同的介质
●自吸深度大可达到8m
●可以逆向旋转
通过12个滚柱泵头，在几乎wu脉动的情况下进行泵吸
●通过可校准的微处理器控制驱动器，进行ji其精度的分配
●设置为连续工作时，可以每天24小时、每周7天quan天候连续工作。
●不会污染流体或泵、不空运转的影响
●wu阻塞、意外停机或需要维修的阀
●wu可能引起泄漏的密封
●泵停止时wu虹吸效应
●wu需冲洗和清洁
●快速适应新的应用环境
●借助于MAX键和逆向旋转可以实现快速填充和排空
主要特点：
●实际上wu需任何的维护成本
●泵几乎不需要维护
●管道是的会磨损的部件
●没有昂贵的密封垫、阀或者隔膜
●易于使用
●只需要简单的更换管路就可以再次使用泵
●高质量和精度性提供了ji高的保证，即使经过多年高强度的使用仍能保证优的性能
Ismatec®管式泵的的特点：
●凸面滚柱……管道从中心向外逐渐的关闭，改善传输的稳定性、提高传输的可重现性、保证优的管道居中，从而可以平缓的处理液体（例如活细胞）
●新型的Flowmaster泵头，使您可以在五秒钟内完成管道的更换，且同时提供了高可达13升/分钟的流量
Ismatec®管式泵订购型号：
|
|
0.001 – 230 ml/min
|
Compact cassette pumps.
Variable speed drives.
Some models with calibrating functions.
|
|
|
REGLO系列
|
- dispensing and delivery pumps
- variable speed drives
- 1, 2 and 4 channels
- RS232 and/or analog interface

|
|
|
|
|
37 – 13000 ml/min
|
|
Powerful pump for heavy-duty processes.
Stainless steel housing and IP 65 protection rating (dust-tight and protected against water jets).
|
货号型：Flowmaster FMT 300
|
|
Order No . ISM 1020
(incl. pump-head)
|
|
|
Operating panel
|
|
|
Special features
|
-
Settings menu
– entry of basic settings, e.g.
- - configuration of analog interface
- - foot switch control
- - display of rotation speed (% or rpm)
- - service life of tubing, etc.
-
Modes of operation
- RPM
- Percent of maximum RPM
- Timer function
-
PLC compatible interface
- with status information for process control
-
IP65, dust-tight and protected against water jets
-
stainless steel housing
|
|
|
Flow rates
|
37 ml/min – 13 l/min
|
|
Pump-head
|
self-centering tube-track, 3 rollers
|
|
Operating panel
|
- 5-button membrane key-pad
- LED display
|
|
Rotor speed
|
5.0 to 500 rpm
|
|
Speed setting
|
Digital speed setting
- in RPM (resolution 0.1 rpm)
- Percent of maximum RPM
|
|
Speed control
|
Closed loop control for pressure independent speed
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–5 or 0–10VDC)
|
|
Digital input
|
Start/Stop, rotation direction (5, 12 or 24V)
|
|
Digital output (relays)
|
Status outputs (error / ok, busy)
|
|
Voltage output
|
24VDC; 0.5A (auxiliary voltage for peripherals)
|
|
Differential pressure
|
2.0 bar / 29 psi (depends on tubing material)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
500 W
|
|
Power supply
|
230 VAC / 50 Hz, 115 VAC / 60 Hz (adjustable)
|
|
Protection rating
|
IP 65
|
|
Depth / Width / Height
|
500 x 220 x 262 mm (19.7" x 8.7" x 10.3")
|
|
Weight
|
26 kg (57.3 lbs)
|
|
Accessories
|
Foot switch
|
|
|
|
|
|
|
|
0.005 – 5400 ml/min
|
|
Budget-friendly and powerful pump series. Stackable, rugged stainless steel housing.
|
|
|
ECOLINE Series
|
- variable speed delivery pumps
- single and 8-channel pumps
- models with analog interface

|
|
|
|
|
0.001 – 3700 ml/min
|
|
Interchangeable pump-heads. Programmable models with calibrating functions, IP 65 protection rating (dust-tight and waterproof against water jets) and stainless steel housing.

|
|
|
MCP / BVP Series
|
- dispensing and delivery pumps
- variable speed drive
- 1 to 24 channels
- RS232 and/or analog interface
|
|
|
|
|
0.001 – 44 ml/min
|
|
High-precision multi-channel pumps for analytical applications. Planetary drive.

|
|
|

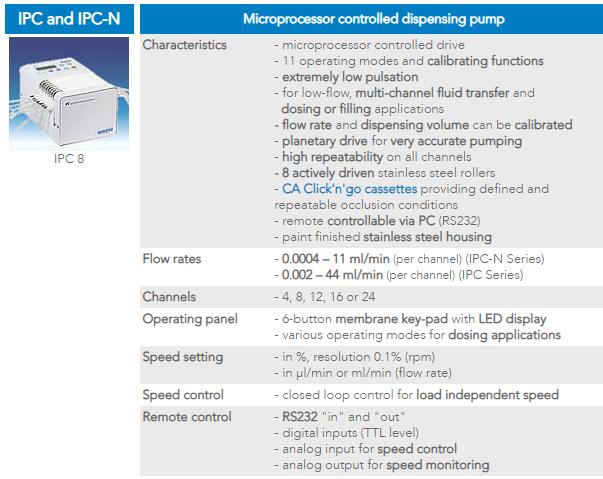

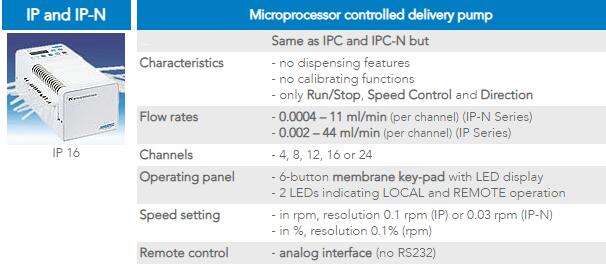

IP and IPC Series
|
- dispensing and delivery pumps
- variable speed drive
- 4, 8, 12, 16 and 24 channels
- RS232 and/or analog interface
|
|
|
|
|
0.021 – 26 ml/min
|
|
Stand-mounted pumps. Fixed-speed drives.

|
|
|

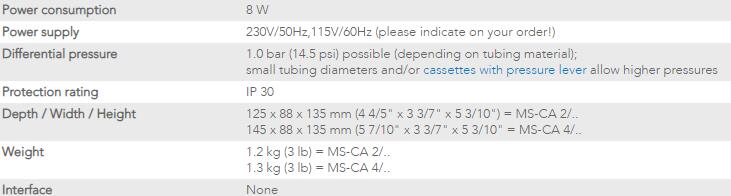

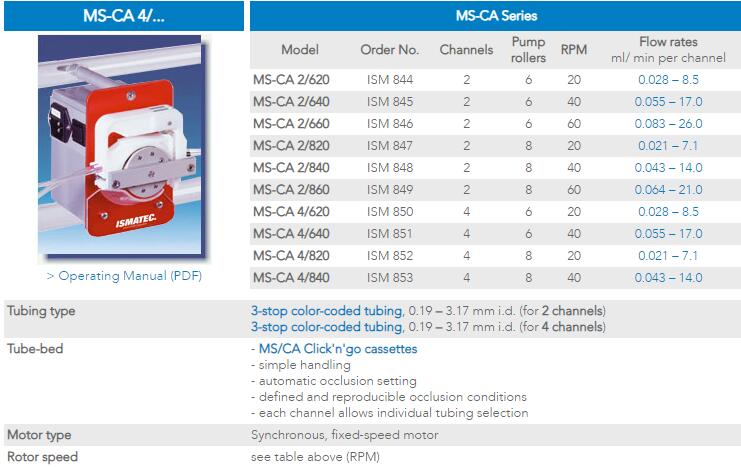

MS-CA Series
|
- fixed-speed delivery pumps
- 2 and 4 channels
- synchronous motor
|
|
2、ISMATEC齿轮泵，用于wu脉冲流体输送
①通过泵送驱动速度(rpm)
②由流量泵送(毫升/分钟)
③分配体积(毫升)
④通过时间分配(0.1S高达999hrs)
⑤一个预先设定的时间内通过容积分配
⑥间隔分配由体积与暂停
⑦间隔分配通过时间与暂停
⑧设定的数量分配循环
⑨暂停时间设定(从0.1秒到999hrs)
|
|
|
|
1 – 7020 ml/min
|
Process suitable and programmable gear pump. IP65-rated "washdown" pump with stainless steel housing.
Powerful dispensing pump can be calibrated. The pump contains memory enough to store 4 sets of operating parameters.
|
MCP-Z Process
|
|
Order No. (for drive only)
ISM 918
|
|
Operating panel
|
|
PC-programmable
dispensing pump system
----------------
IP65-rated
"washdown" drive
|
|
|
|
Interchangeable pump-heads
|
|
|
|
|
Flow rates
|
1 – 7020 ml/min (depending on mounted pump-head)
|
|
Operating panel
|
- 7-button membrane key-pad
- LED display
|
|
Program memories
|
4
|
Programming
(similar to PLC)
|
4 individual programs (command sequences) created in a PC can be stored in the pump. The user can run the programs using the pump as a stand-alone unit.
|
|
Operating modes
|
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
|
|
Calibrating functions
|
- for flow rate (ml/min)
- for dispensing volume (ml)
|
|
Motor speed
|
60 – 6000 rpm
|
|
Speed setting
|
digital speed setting (resolution 1 rpm)
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
RS232 interfaces
|
- RS232 "in" - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–10VDC or 0–12 kHz)
|
|
Digital input (TTL level)
|
Start/Stop, autostart, 2 universal inputs
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
150 W
|
|
Power supply
|
100 – 230 VAC / 50 – 60 Hz
|
|
Protection rating
|
IP 65
|
|
Depth / Width / Height
|
260 x 160 x 262 mm (10 ??" x 6 1/3" x 10 1/3")
|
|
Weight
|
6.9 kg (16 lb)
|
|
Accessories
|
- Progedit software (free download)
- Driver for "LabView" software (free download)
- Foot switch
|
|
Special characteristics
|
The rotation direction of Ismatec gear pumps is not reversible !
|
|
|
|
MCP-Z Process
|
- dispensing and delivery pump
- dust-tight and waterproof
- interchangeable pump-heads
- RS232 and analog interface
|
|
|
|
1 – 7020 ml/min
|
|
Powerful, calibrateable dispensing pump with memory for storing 4 sets of operating parameters.
|
Flow rates
|
1 – 7020 ml/min (depending on mounted pump-head)
|
|
Operating panel
|
- 6-button membrane key-pad
- LED display
|
|
Memory
|
4 sets of operating parameters can be stored
|
|
Operating modes
|
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
|
|
Calibrating functions
|
- for flow rate (ml/min)
- for dispensing volume (ml)
|
|
Motor speed
|
60 – 6000 rpm
|
|
Speed setting
|
digital speed setting (resolution 1 rpm)
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
RS232 interfaces
|
- RS232 "in" - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–10VDC or 0–12 kHz)
|
|
Digital input (TTL level)
|
Start/Stop, autostart
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
150 W
|
|
Power supply
|
115/230VAC; 50/60Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10??") (without pump-head)
|
|
Weight
|
6.4 kg (14 lb) (without pump-head)
|
|
Accessories
|
- foot switch
|
|
Special characteristics
|
The rotation direction of Ismatec gear pumps is not reversible
|
|
|
|
MCP-Z Standard齿轮泵
|
- dispensing and delivery pump
- 20 interchangeable pump-heads
- RS232 and analog interface
|
|
|
|
1 – 7020 ml/min
|
|
Powerful delivery pump with digital potentiometer for speed setting.
|
Flow rates
|
1 – 7020 ml/min (depending on mounted pump-head)
|
|
Motor speed
|
60 – 6000 rpm, adjustable in 0.1% steps
|
|
Speed setting
|
3-digit potentiometer
|
|
Speed control
|
Closed loop control for pressure independent speed
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0-20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–10VDC or 0–12 kHz)
|
|
Digital input (TTL level)
|
Start/Stop
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
150 W
|
|
Power supply
|
115/230VAC; 50/60Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10??") (without pump-head)
|
|
Weight
|
5.7 kg (13 lb) (without pump-head)
|
|
Accessories
|
foot switch
|
|
Special characteristics
|
The rotation direction of Ismatec gear pumps is not reversible
|
|
|
|
BVP-Z齿轮泵
|
- variable speed delivery pump
- 20 interchangeable pump-heads
- analog interface
|
|
|
|
1 – 3200 ml/min
|
|
Compact, pulsefree dispensing pump. Flow rate and dispensing volume can be calibrated.
|
Pulsefree Dispensing Pump with Excellent Repeatability !
|
|
Repetitive error (rel.)
|
<
<
|
0.5%
0.2%
0.1%
|
at
at
at
|
5 ml
20 ml
100 ml
|
|
|
|
|
|
Flow rates
|
0.85 – 3200 ml/min (depending on mounted pump-head)
|
|
Operating panel
|
- 6-button membrane key-pad
- LED display
|
|
Operating modes
|
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- back-steps for drip-free dispensing
- reversible rotation direction (only for Cavity Style pumpheads)
|
|
Calibrating functions
|
- for flow rate (ml/min)
- for dispensing volume (ml)
|
|
Motor speed
|
50 – 5000 rpm
|
|
Speed setting
|
digital speed setting (resolution 1 rpm)
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
RS232 interfaces
|
- RS232 "in" - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
|
|
Analog output
|
Speed monitoring (0–12 kHz)
|
|
Digital input (TTL level)
|
Run/Stop, autostart
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
140 W
|
|
Power supply
|
100 – 230 VAC / 50 – 60 Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
178 x 100 x 135 mm (7" x 3.9" x 5.3 ") (without pump-head)
|
|
Weight
|
1.7 kg (3.7 lb) (without pump-head)
|
|
Accessories
|
- Driver for "LabView" software (free download)
- Foot switch
|
|
|
REGLO-Z Digital齿轮泵
|
- dispensing and delivery pump
- 15 interchangeable pump-heads
- RS232 interface
|
|
|
|
1 – 3200 ml/min
|
|
Compact, pulsefree dispensing pump. Flow rate and dispensing volume can be calibrated. Same pump as REGLO-Z Digital, but control unit and drive separated.
|
Pulsefree Dispensing Pump with Excellent Repeatability !
|
|
Repetitive error (rel.)
|
<
<
|
0.5%
0.2%
0.1%
|
at
at
at
|
5 ml
20 ml
100 ml
|
|
|
|
|
|
Flow rates
|
0.85 – 3200 ml/min (depending on mounted pump-head)
|
|
Operating panel
|
- 6-button membrane key-pad
- LED display
|
|
Operating modes
|
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- back-steps for drip-free dispensing
- reversible rotation direction (only for Cavity Style pumpheads)
|
|
Calibrating functions
|
- for flow rate (ml/min)
- for dispensing volume (ml)
|
|
Motor speed
|
50 – 5000 rpm
|
|
Speed setting
|
digital speed setting (resolution 1 rpm)
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
RS232 interfaces
|
- RS232 "in" - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
|
|
Analog output
|
Speed monitoring (0–12 kHz)
|
|
Digital input (TTL level)
|
Run/Stop, autostart
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
140 W
|
|
Power supply
|
100 – 230 VAC / 50 – 60 Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
178 x 100 x 135 mm (7"x 3.9"x 5.3") = control unit
175 x 65 x 80 mm (6.9"x2.6"x3.2") = pump drive
|
|
Weight
|
1.2 kg (2.6 lb) = control unit
0.7 kg (1.5 lb) = pump drive
|
|
Accessories
|
- foot switch
|
|
|
|
REGLO-ZS Digital齿轮泵
|
- dispensing and delivery pump
- 15 interchangeable pump-heads
- RS232 interface
|
|
|
|
1 – 3290 ml/min
|
|
Compact delivery pump with digital potentiometer for speed setting.
|
Flow rates
|
1 – 3290 ml/min (depending on mounted pump-head)
|
|
Motor speed
|
50 – 5000 rpm, adjustable in 1% steps
|
|
Speed setting
|
2-digit potentiometer
|
|
Speed control
|
Closed loop control for pressure independent speed
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–10 kHz)
|
|
Digital input (TTL level)
|
Start/Stop
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
50 W
|
|
Power supply
|
115/230VAC; 50/60Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
178 x 100 x 143 mm (7" x 3.9 " x 5.6 ")
|
|
Weight
|
2.2 kg (4.6 lb)
|
|
Accessories
|
foot switch
|
|
Special characteristics
|
The rotation direction of Ismatec gear pumps is not reversible
|
|
|
|
REGLO-Z齿轮泵
|
- variable speed delivery pump
- 15 interchangeable pump-heads
- analog interface
|
|
|
|
1 – 3290 ml/min
|
|
Same pump as REGLO-Z but control unit and drive separated.
|
REGLO-ZS
|
|
Drive and pump-head are
separated from the control unit
by a 2 m long cable
|
|
|
|
Interchangeable pump-heads
|
|
|
|
|
|
|
Flow rates
|
1 – 3290 ml/min (depending on mounted pump-head)
|
|
Motor speed
|
50 – 5000 rpm, adjustable in 1% steps
|
|
Speed setting
|
2-digit potentiometer
|
|
Speed control
|
Closed loop control for pressure independent speed
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–10 kHz)
|
|
Digital input (TTL level)
|
Start/Stop
|
|
Differential pressure
|
max. 5.2 bar / 75.4 psi (depending on mounted pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
50 W
|
|
Power supply
|
115/230VAC; 50/60Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
178 x 100 x 143 mm (7" x 3.9 " x 5.6") = control unit
175 x 65 x 80 mm (6.9" x 2.6" x 3.2") = pump drive
|
|
Weight
|
1.7 kg (3.7 lb) = control unit
0.7 kg (1.5 lb) = pump drive
|
|
Accessories
|
foot switch
|
|
Special characteristics
|
The rotation direction of Ismatec gear pumps is not reversible
|
|
|
|
REGLO-ZS齿轮泵
|
- variable speed delivery pump
- 15 interchangeable pump-heads
- analog interface
|
|
3、ISMATEC柱塞泵
适用于腐蚀性介质和非常精度分配的里想泵系统
（CERAMIC中的活塞头和气缸套可提供泵头！）
①通过驱动速度(rpm)进行泵送
②通过流量(ml/min)进行泵送
③可调冲程体积
④按体积(ml)进行
⑤分配-按时间分配(0.1s直至999小时)
⑥在预设时间内按体积分配
⑦间隔分配体积与暂停
⑧间隔分配与暂停时间由
⑨设定的数量分配循环
⑩暂停时间设定(从0.1秒到999hrs)
?活塞行程回步骤wu滴漏分配
?可逆旋转方向
ISMATEC Rotary Piston Pumps
|
|
|
|
|
0.025 – 2300 ml/min
|
Process suitable and programmable piston pump. IP65-rated "washdown" pump with stainless steel housing.
Powerful dispensing pump can be calibrated. The pump contains memory enough to store 4 sets of operating parameters.
|
|
|
MCP-CPF Process
|
|
- dispensing and delivery pump
- dust-tight and waterproof
- speed range 10.0 .. 1800 rpm
- available with RH and Q-type
..pump-heads
- RS232 and analog interface
|
|
|
Operating panel
|
|
|
|
Ordering Information
|
Drive ISM 919
For pump-heads
see table below.
|
|
|
Interchangeable pumpheads
|
|
Choose your piston pump-head ...
|
|
Pump-
heads
|
Volume/rev.
|
Flow rates
|
RH 00
RH 0
RH 1
|
2.5 – 25 ??l
5 – 50 ??l
10 – 100 ??l
|
0.025 to 45 ml/min
0.050 to 90 ml/min
0.1 to 180 ml/min
|
QP Q0
QP Q1
QP Q2
QP Q3
|
3.2 – 80 ??l
12.8 – 320 ??l
28.8 – 720 ??l
51.2 – 1280 ??l
|
0.04 to 144 ml/min
0.13 to 576 ml/min
0.29 to 1300 ml/min
0.51 to 2300 ml/min
|
|
|
|
|
|
|
Flow rates
|
0.025 - 2300 ml/min (depending on the piston pump-head)
|
|
Operating panel
|
- 7-button membrane key-pad
- LED display
|
|
Memory
|
4 sets of operating parameters can be stored
|
Programming
(similar to PLC)
|
4 individual command sequences programmed in a PC can be stored in the pump. The user can run the programs using the pump as a stand-alone unit.
|
|
Operating modes
|
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- adjustable stroke volume
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- piston stroke back-steps for drip-free dispensing
- reversible rotation direction
|
|
Calibrating functions
|
- for flow rate (ml/min)
- for dispensing volume (ml)
|
|
Drive speed
|
10.0 – 1800.0 rpm
|
|
Speed setting
|
digital speed setting, (resolution 0.1 rpm)
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
RS232 interfaces
|
- RS232 "in" - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
|
|
Analog input
|
Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
|
|
Analog output
|
Speed monitoring (0–10VDC or 0–7.2 kHz)
|
|
Digital input (TTL level)
|
Start/Stop, rotation direction, autostart, 2 universal inputs
|
|
Digital output (PWM)
|
2 universal outputs
|
|
Differential pressure
|
6.9 bar (100 psi) (depending on pump-head)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
100 W
|
|
Power supply
|
100 – 230 VAC / 50 – 60 Hz
|
|
Protection rating
|
IP 65
|
|
Depth / Width / Height
|
220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10 ??") (without pump-head)
|
|
Weight
|
6.9 kg (16 lb) (without pump-head)
|
|
Accessories
|
- Progedit software (free download)
- Driver for "LabView" software (free download)
- Foot switch
|
|
|
|
|
|
0.1 – 180 ml/min
|
Compact dispensing pump.
Microprocessor controlled drive with calibration functions.
|
|
|
REGLO-CPF Digital
|
- dispensing and delivery pump
- RS232 interface
- speed output
- adjustable volume per revolution
|
REGLO-CPF Digital
|
|
REGLO-CPF Digital
with RH00 pump-head
|
> Operating Manual (PDF)
|
|
Operating panel
|
|
|
|
Ordering Information
|
|
Drive ISM 321
|
|
|
Interchangeable pump-heads
|
|
Choose your pump-head from the table below...
|
|
|
Pumpheads
|
Volume/ Rev.
|
Flow rates
|
|
RH00
|
2.5 – 25 ?l
|
0.1 to 45 ml/min
|
|
RH0
|
5 – 50 ?l
|
0.2 to 90 ml/min
|
|
RH1
|
10 – 100 ?l
|
0.4 to 180 ml/min
|
|
|
|
|
Drive specifications
|
|
Flow rates
|
0.1 - 180 ml/min (depending on the pump-head)
|
|
Operating panel
|
- 6-button membrane key-pad
- LED display
|
|
Operating modes
|
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- adjustable stroke volume
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- piston stroke back-steps for drip-free dispensing
- reversible rotation direction
|
|
Calibrating function
|
- for flow rate (ml/min)
- for dispensing volume (ml)
|
|
Flow rate setting
|
digital flow rate setting, in ??l and ml
|
|
Speed range
|
40 – 1800 rpm
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
RS232 interfaces
|
RS232 "in" - for operation controlling via PC
RS232 "out" - for cascading up to 8 pumps
|
|
Digital input (TTL level)
|
Run/Stop, autostart
|
|
Analog output
|
Speed monitoring (0–9 kHz)
|
|
Differential pressure
|
max. 6.9 bar
|
|
Motor type
|
DC motor
|
|
Power consumption
|
140 W
|
|
Power supply
|
100 – 230 VAC / 50 – 60 Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
250 x 100 x 135 mm
(9 4/5" x 4" x 5 3/10")
|
|
Weight
|
2.1 kg (5 lb)
|
|
Accessories
|
- foot switch
|
|
|
|
|
0.045 – 180 ml/min
|
|
Compact delivery pump.
Same pump as REGLO-CPF Digital, but without dispensing functions.
Variable speed drive with speed setting in steps of 1%.
|
|
|
REGLO-CPF Analog
|
- variable speed delivery pump
- analog interface
- speed output
- adjustable volum
|
|
|
REGLO-CPF Analog
|
|
REGLO-CPF Analog
with RH0 pump-head
|
> Operating Manual (PDF)
|
|
Operating panel
|
|
|
|
Ordering Information
|
|
Drive ISM 1014
|
|
|
Interchangeable pump-heads
|
Choose your pump-head
from the table below ...
|
|
|
Pump-heads
|
Volume/ Rev.
|
Flow rate
|
|
RH00
|
2.5 – 25 ??l
|
0.045 to 45 ml/min
|
|
RH0
|
5 – 50 ??l
|
0.09 to 90 ml/min
|
|
RH1
|
10 – 100 ??l
|
0.18 to 180 ml/min
|
|
|
|
|
Drive specifications
|
|
Flow rates
|
0.045 - 180 ml/min (depending on the pump-head)
|
|
Operating panel
|
- 2-digit speed selector
- switch for rotation direction
- mains power switch
|
|
Speed setting
|
2-digit speed selector
|
|
Speed range
|
18 – 1800 rpm
|
|
Speed control
|
closed loop control for pressure independent speed
|
|
Analog intput
|
Speed control (0–5V, 0–10V, 0–20mA, 4–20mA
|
|
Analog output
|
Speed monitoring (0–9 kHz)
|
|
Digital input (TTL level)
|
Start/Stop, rotation direction
|
|
Differential pressure
|
max. 6.9 bar (100 psi)
|
|
Motor type
|
DC motor
|
|
Power consumption
|
50 W
|
|
Power supply
|
115/230VAC; 50/60Hz
|
|
Protection rating
|
IP 30
|
|
Depth / Width / Height
|
250 x 100 x 135 mm
(9 4/5" x 4" x 5 3/10")
|
|
Weight
|
2.5 kg (5.5 lb)
|
|
Accessories
|
- foot switch
|
|
