SynVivo Cell Impedance Analyzer ，SynVivo细胞阻抗分析仪
型号:304001
联系人:李先生
联系电话:18618101725
品牌:synvivo

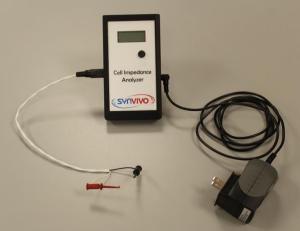

SynVivo®细胞阻抗分析仪
旨在测量在SynVivo IMN2-Z芯片设备中培养的细胞之间的阻抗（电阻）变化。 SynVivo®细胞阻抗分析仪可实时监测500、1,000和10,000 Hz频率下的细胞变化。
该系统非常适合wu创且wu标签的细胞间紧密连接形成监测，为wu错误操作提供了强大而简便的协议。 它标配电源适配器和微型抓取器，可与SynVivo IMN2-Z设备一起使用。

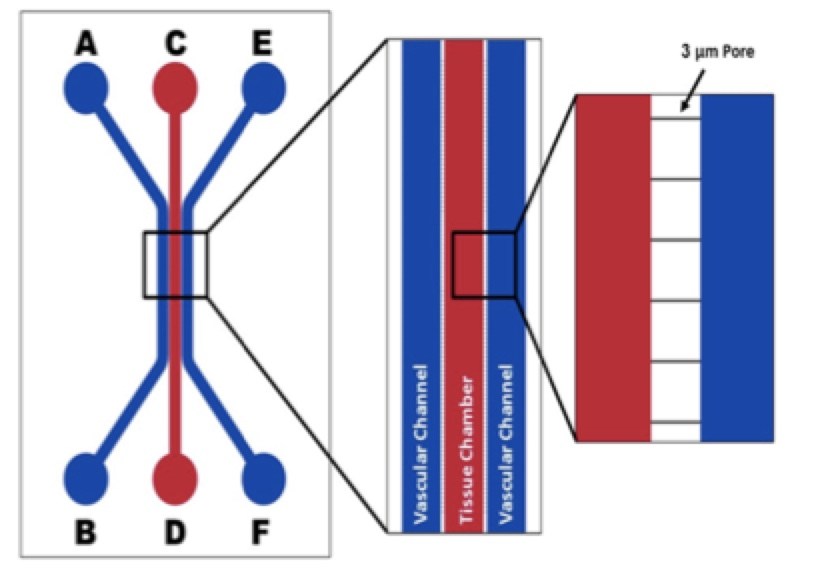

培养芯片如下：
|
Idealized Co-Culture
Network Chip (200μm OC, 50μm slit spacing, 3um wide slit, 50μ travel, 100μm
depth)
|
|
102006
|
|
Idealized Co-Culture
Network Chip (200μm OC, 50μm slit spacing, 3um wide slit, 100μ travel, 100μm
depth)
|
|
102016
|
|
Idealized Co-Culture
Network Chip (200μm OC, 50μm slit spacing, 2um wide slit, 50μ travel, 100μm
depth)
|
|
102017
|
|
Idealized Co-Culture
Network Chip (200μm OC, 50μm slit spacing, 2um wide slit, 100μ travel, 100μm
depth)
|
|
108011
|
|
Idealized Co-Culture
Network Chip (500um-500um-500um Channel Width; 50um Travel, 3um slits-50um
Separation, 100um Depth)
|
|
108012
|
|
Idealized Co-Culture
Network Chip (200um-500um-200um Channel Widths; 50um Travel-3um Height
Barrier: 3um slits-50um Separation, 100um Depth)
|
| Note: Does not include other required consumables such as tubing, clamps, syringes, needles, cells, media and matrix. |
| Laboratory equipment required includes incubators, inverted microscopes, and syringe pumps. |
|
|
|
Idealized Co-Culture
Network Chip (200um OC, Pillars, 8um Gap, 50um Travel—–3/100 um)
|
|
102012
|
|
Idealized Co-Culture
Network Chip (200um OC, Pillars, 8um Gap, 50um Travel—–8/100 um)
|
|
103001
|
|
Idealized Co-Culture
Network Chip (200μm OC, Pillars, 3 um gap, 50μ travel, 100μm depth)
|
|
103003
|
|
Idealized Co-Culture
Network Chip (200μm OC, Pillars, 8 um gap, 50μ travel, 100μm depth)
|
|
103004
|
|
Idealized Co-Culture
Network Chip (200μm OC, Pillars, 8 um gap, 100μ travel, 100μm depth)
|
|
103005
|
|
Idealized Co-Culture
Network Chip (200μm OC, 50um Slit spacing, 3um slit gap, 100μ travel, 100μm
depth)
|
|
103006
|
|
Idealized Co-Culture
Network Chip (200μm OC, 50um Slit spacing, 2um slit gap, 100μ travel, 100μm
depth)
|
|
103007
|
|
Idealized Co-Culture
Network Chip (100um OC, 50um Slit spacing, 2um slit width, 50um travel)
|
|
108013
|
|
Idealized Co-Culture
Network Chip (200um-500um-200um Channel Widths; 50um Travel-3um Height
Barrier: Pillars, 100um Depth)
|
| Note: Does not include other required consumables such as tubing, clamps, syringes, needles, cells, media and matrix. |
| Laboratory equipment required includes incubators, inverted microscopes, and syringe pumps. |
