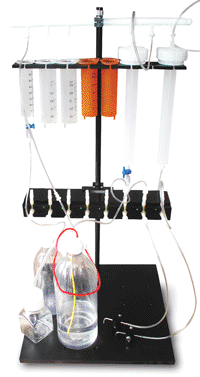

Complete 8/16-Channel Automated Perfusion System with
programmable timers and channel sequences for precise timing during
manual operation
Specifications: |
Valve Fitting: | Luer-locks |
Remote control: | Wireless |
Manifold: | 8-channel,
can be reduced down to 1-channel |
Height: | up to 3ft. adjustable, for gravity driven solution flow |
Solution cylinders: | 60ml x8 syringes |
Tubing: | 100ft. polyethylene tubing, fits
perfusion manifold directly;
50ft. Tygon tubing, fits provided barbed luer connectors for
syringes |
Tubing Fitting: | barbed luer-locks and ferrule-type to connect to solution cylinders
and between Tygon & polyethylene tubing |
Anti-vibration mounting: | a. 1x1 ft. stand,
b. magnetic stand,
c. M8 threaded surfaces |
Designed for animal physiology and cell research applications. Easy to use solenoid valves with luer fitting.
Wide orifices will maintain high flow rates. The system comes with manifold that
fits to perfusion chambers for cultured cells/tissue
slices, Petri dish and oocytes. Includes soft Tygon,
polyethylene tubing and fitting to connect to pinch tubing. Includes 60ml
syringes/reservoirs. Includes easy disconnect luer fitting for tubing and included syringes.
Compatible with data acquisition and imaging systems, compatible with LabView, MatLab, pClamp, IPlab, PatchMaster, Metamorh, MetaFluor.
The included unique flexible stand provides vibration-free
operation and includes both a stand and a
small magnetic base. The magnetic base does not take a lot of space from your
set-up, but allows to position perfusion solutions near your sample.
The post consists of 0.5 in. O.D., 1 foot long aluminum parts and
can be extended to 3 feet high. An 1.5 in. flowerette head screw
will fix the syringes on the post, making a traditional syringe holder. Comes with
60ml syringes, stop-cocks, and fitting. The holder can be also mounted on threaded
M8 surfaces.
Complete 16-Channel Pinch Valves Perfusion System
To form a 16-channel setup, this system includes two sets of the above parts, included with the 8-channel system, which can be operated by the same 16-channel controller.
16-channel valve controller
Both system come with a
16-channel controller. The controller opens valves through
- manual buttons
- wireless remote control
- optically isolated digital or TTL signals generated by a computer or other equipment
- analog signal
- RS232 port (or USB connection) for software control
The controller can operate in
AUTO Memory mode, to
program timers and channels sequences
for precise timing during manual operation;
INHIBIT mode with manual and external controls allows you to
switch all channels OFF at once, if required.
The controller has an
option for valves control by Binary Encoding using only 2-4 digital
inputs, in case if a limited number of digital outputs are available
in your system. The RS232 port allows automation of solution
switching and integration with data acquisition and imaging systems.
ANALOG output can be configured to monitor channel switching
during manual operation.
SET output is used to switch an
outflow unit ON automatically every time perfusion is ON.
RS232 port allows software control by any imaging or data acquisition
setup. Can be upgraded to USB/RS232 adapter.
Includes 12V output internal 120/220V power supply.
Specifications (controller): |
Channels: | 16 |
Controls: | optically
isolated digital signals and TTL, Analog input, RS232 software command |
Manual Overdrive: | Manual
touch-pad switches, override electronical inputs |
Remote control: | Wireless |
Auto Memory: | To
program timers and channels sequences for precise timing
during manual operation |
Code mode: | Use only 4 TTL inputs to encode all channels |
Close mode: | Inhibits all outputs to the valves, manual and electronical inputs |
Analog and SET outputs: | To switch outflow units
CFPS-1U and for telegraph
output |
Custom modifications: | Additional features can be added or modified on request |
Dimensions: | 2.5 x 12 x 9 in. |
Power: | 120/240 VAC external power supply |
Click on catalog numbers below to purchase online.
Download PDF manual.
Download PDF catalog.
|
|
Bioscience Tools
|
PRICES AND OPTIONS |
PS-8SE |
|
Economy 8-Channel Perfusion System. Includes programmable 16-channel
controller and solenoid valves (without SH-1A syringe holder, manifold, tubing and fitting).
|
PS-8S |
|
Complete 8-Channel Perfusion System. Includes programmable 16-channel controller,
solenoid valves, SH-1A syringe holder, manifold, tubing and fitting.
|
PS-V8S |
|
Additional solenoid valves, set of 8, mounted inside an aluminum box to use with perfusion systems.
For use with PC-16 controller.
|
PS-S8
|
|
Replacement 60ml syringes (containers) for perfusion systems, set of x8
|
PS-16S |
|
Complete 16-Channel Perfusion System. Includes programmable 16-channel controller,
solenoid valves, SH-1A syringe holders, manifold, tubing and fitting.
|
|
|
)
)
