Product Detail

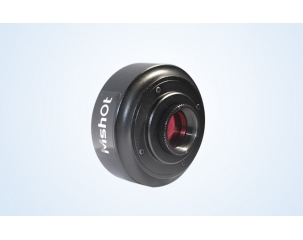

9.0MP CMOS Camera MD90

CMOS camera MD90 is a color digital camera in 9.0 megapixels, it can be connected to any standard trinocular bio-microscope, stereo microscope and metallurgical microscope.

The digital camera has the advantages of high transmission speed, good color rendition, clear image and easy storage, etc. MD90 CMOS microscope camera is widely used in the field of industrial quality management, teaching research, material analysis, clinical examination and machine vision, etc. This digital camera makes the complex work become easy, interesting and can be finished efficiently.

Features of CMOS camera MD90:
•Hi-speed USB2.0 interface, up to 480Mb/s;
•Real 9.0 megapixel progressive scan color CMOS image sensor, no compression, no interpolation;
•Wide dynamic range, supports static image capture (JPG, BMP);
•Plug and play, no external power supply;
•Support standard C-mount lenses and all kinds of customized lenses, rigid and durable aluminum shell.

Performance Benefits of CMOS camera MD90:
1.9.0 mega physical pixels, the images are more exquisite and very clear even magnified.
2.Plug and play, easy to connect by USB2.0 interface without additional acquisition devices, real-time uncompressed video data and capture of images. Applicable to the shooting of any standard biological, stereo and metallurgical microscopes.
3.Software is in easy operation, high compatibility, compact interface, you only need 5 minutes to achieve self-operation. Automatic mode control of exposure speed, contrast, brightness, saturation and image size. Design with plug and play modularity in excellent human machine interface. Users can easily do camera shooting operation on a computer screen.
4.Strong sharing capability, data can be stored and edited. The images can be shown on the computer screen, achieve real-time image observation and edit, process, store, transmit data simultaneously. If use the projector together with this device, it turns to an electronic multimedia teaching composition and presentation system, which can improve the equipment utilization, sharing capability and mutual exchange. It makes the operating atmosphere more humanization.
5.Support video function, compression mode can be selected as the storage format, easy to save and transfer.

Parameters :

Sensor	1/ 2.3〞color CMOS, 9 Megapixels	Sensitivity	0.44 V/lux-sec (550nm)
Resolution	3488x2616(12bit)	Data Interface	USB2.0 (480 Mbit / sec)
Pixels Size	1.75μm x 1.75μm	Power Supply	DC 5V ± 5%
Frame Rate	2fps 3488 x 2616	Electricity	≈200 MA
Frame Rate	30 fps640x480	White Balance	Manual/Auto
Shutter	Electronic	Exposure control	10μs–32ms,Auto exposure
S/N Ratio	40.5dB	Software	Display/Capture/Video, etc
Scanning Mode	Progressive scanning	Operating Temp	-30°C ~ 70°C
