pcDNA4/V5-HisA载体基本信息

出品公司: Invitrogen

载体名称: pcDNA4/His A

质粒类型: 哺乳动物表达载体；cDNA表达载体

高拷贝/低拷贝: 高拷贝

克隆方法: 多克隆位点，限制性内切酶

启动子: CMV

载体大小: 5097 bp

5 测序引物及序列: T7 Forward: 5’-TAATACGACTCACTATAGGG-3’

3 测序引物及序列: BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3

载体标签: His Tag (C-端）, Xpress Epitope Tag（C-端）

载体抗性: 氨苄青霉素

筛选标记: Zeocin

克隆菌株: TOP10,JM109等

宿主细胞（系）: 常规细胞系，如293、Hela等

备注: pcDNA4/His A 载体是哺乳动物表达载体，适用于cDNA的表达与克隆；
CMV启动子驱动目的基因的高水平表达；
pcDNA4/His A,B,C的区别仅在于多克隆位点处；
pcDNA4/His 载体易于克隆到其它载体上。

产品目录号: V861-20

稳定性: 瞬表达或稳表达

组成型/诱导型: 组成型

病毒/非病毒: 非病毒

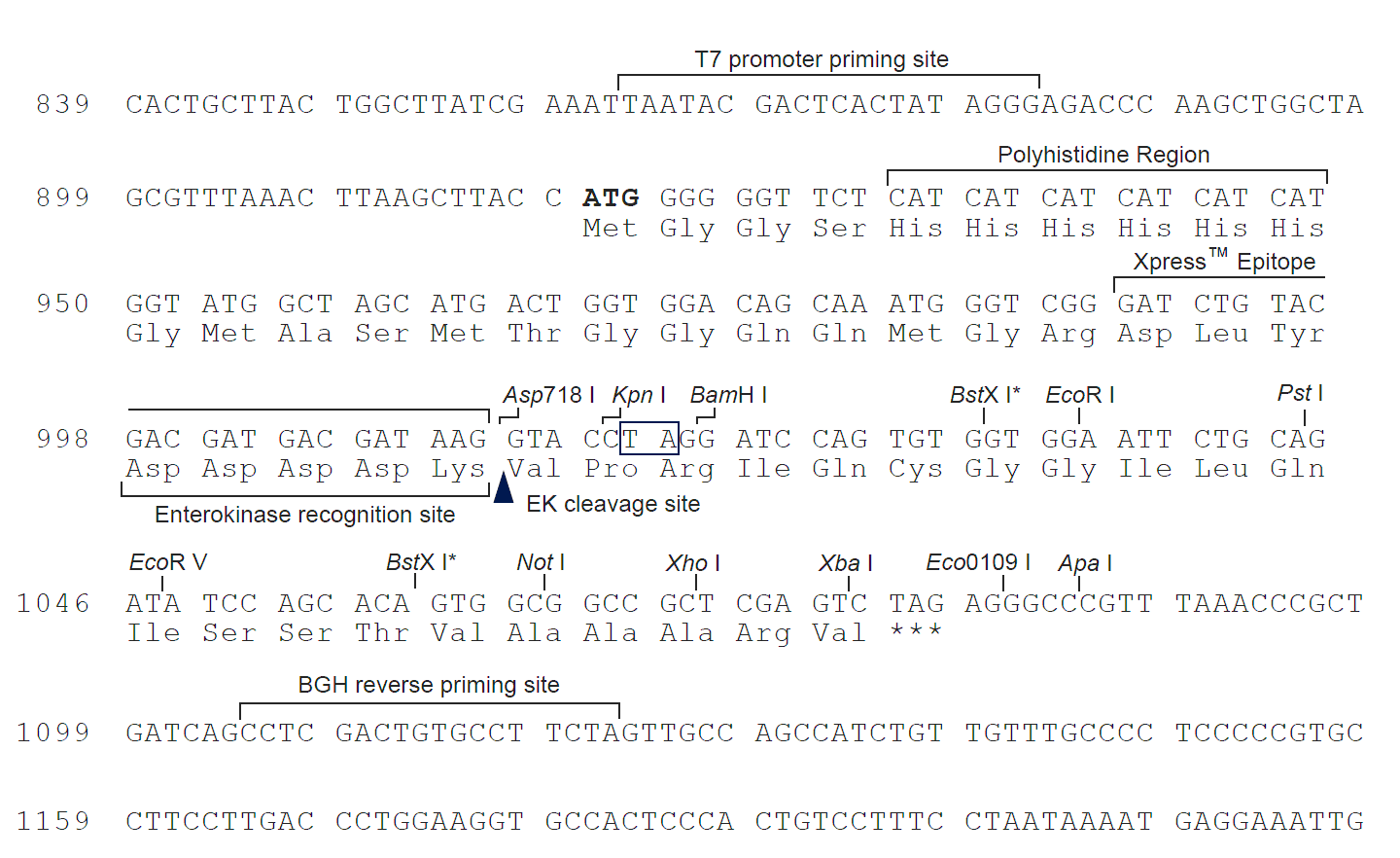

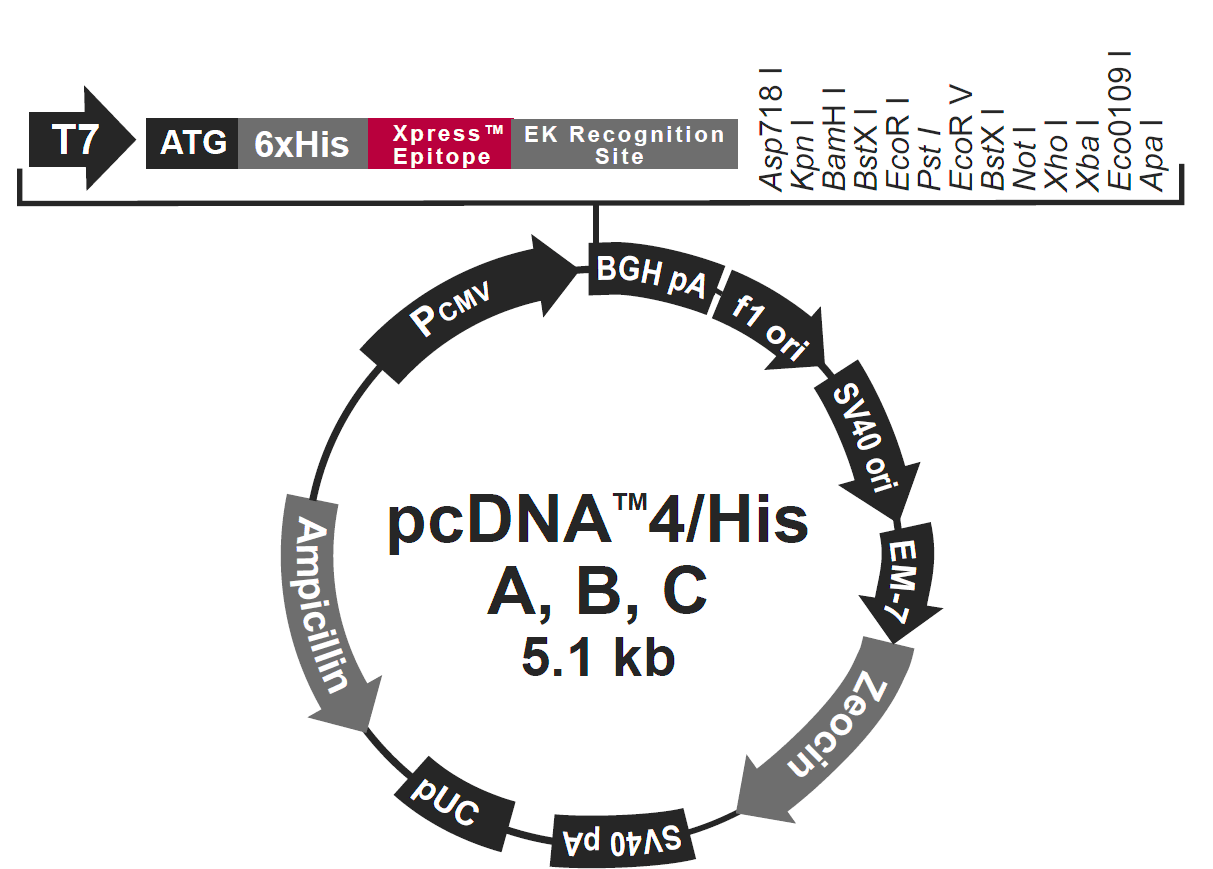

pcDNA4/V5-HisA载体质粒图谱和多克隆位点信息

pcDNA4/V5-HisA载体简介

pcDNA4/V5-HisA载体序列

LOCUS       pcDNA4/His A	5097 bp 	DNA	SYNDEFINITION  pcDNA4/His AACCESSION   KEYWORDS    SOURCE        ORGANISM  other sequences; artificial sequences; vectors.FEATURES             Location/Qualifiers     source          1..5097                     /organism="pcDNA4/His A"                     /mol_type="other DNA"     promoter        236..852                     /label="CMV_immearly_promoter"     misc_feature    315..602                     /label="CAG_enhancer"     misc_feature    769..789                     /label="CMV_fwd_primer"     promoter        863..881                     /label="T7_promoter"     misc_feature    952..970                     /label="Xpress_fwd_primer"     misc_feature    953..985                     /label="T7_leader"     misc_feature    989..1012                     /label="Xpress_EK"     misc_feature    complement(1105..1122)                     /label="BGH_rev_primer"     terminator      1108..1335                     /label="bGH_PA_terminator"     rep_origin      1398..1704                     /label="f1_origin"     misc_feature    complement(1818..1838)                     /label="pBABE_3_primer"     misc_feature    complement(1824..2039)                     /label="SV40_enhancer"     promoter        1836..2104                     /label="SV40_promoter"     rep_origin      2003..2080                     /label="SV40_origin"     misc_feature    2065..2084                     /label="SV40pro_F_primer"     promoter        2198..2265                     /label="EM7_promoter"     misc_feature    2266..2640                     /label="sh_ble"     gene            2266..2637                     /label="bleo"                     /gene="bleo"     terminator      2773..2892                     /label="SV40_PA_terminator"     misc_feature    2861..2880                     /label="EBV_rev_primer"     promoter        complement(2936..2954)                     /label="M13_reverse_primer"     misc_feature    complement(2953..2975)                     /label="M13_pUC_rev_primer"     promoter        complement(2989..3018)                     /label="lac_promoter"     gene            complement(4101..4961)                     /label="Ampicillin"                     /gene="Ampicillin"     CDS             complement(4101..4961)                     /label="ORF frame 2"                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA                     EIGASLIKHW*"     promoter        complement(5003..5031)                     /label="AmpR_promoter"                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA                     EIGASLIKHW*"ORIGIN    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC  901 GTTTAAACTT AAGCTTACCA TGGGGGGTTC TCATCATCAT CATCATCATG GTATGGCTAG  961 CATGACTGGT GGACAGCAAA TGGGTCGGGA TCTGTACGAC GATGACGATA AGGTACCTAG 1021 GATCCAGTGT GGTGGAATTC TGCAGATATC CAGCACAGTG GCGGCCGCTC GAGTCTAGAG 1081 GGCCCGTTTA AACCCGCTGA TCAGCCTCGA CTGTGCCTTC TAGTTGCCAG CCATCTGTTG 1141 TTTGCCCCTC CCCCGTGCCT TCCTTGACCC TGGAAGGTGC CACTCCCACT GTCCTTTCCT 1201 AATAAAATGA GGAAATTGCA TCGCATTGTC TGAGTAGGTG TCATTCTATT CTGGGGGGTG 1261 GGGTGGGGCA GGACAGCAAG GGGGAGGATT GGGAAGACAA TAGCAGGCAT GCTGGGGATG 1321 CGGTGGGCTC TATGGCTTCT GAGGCGGAAA GAACCAGCTG GGGCTCTAGG GGGTATCCCC 1381 ACGCGCCCTG TAGCGGCGCA TTAAGCGCGG CGGGTGTGGT GGTTACGCGC AGCGTGACCG 1441 CTACACTTGC CAGCGCCCTA GCGCCCGCTC CTTTCGCTTT CTTCCCTTCC TTTCTCGCCA 1501 CGTTCGCCGG CTTTCCCCGT CAAGCTCTAA ATCGGGGGCT CCCTTTAGGG TTCCGATTTA 1561 GTGCTTTACG GCACCTCGAC CCCAAAAAAC TTGATTAGGG TGATGGTTCA CGTAGTGGGC 1621 CATCGCCCTG ATAGACGGTT TTTCGCCCTT TGACGTTGGA GTCCACGTTC TTTAATAGTG 1681 GACTCTTGTT CCAAACTGGA ACAACACTCA ACCCTATCTC GGTCTATTCT TTTGATTTAT 1741 AAGGGATTTT GCCGATTTCG GCCTATTGGT TAAAAAATGA GCTGATTTAA CAAAAATTTA 1801 ACGCGAATTA ATTCTGTGGA ATGTGTGTCA GTTAGGGTGT GGAAAGTCCC CAGGCTCCCC 1861 AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCAGGT GTGGAAAGTC 1921 CCCAGGCTCC CCAGCAGGCA GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAT 1981 AGTCCCGCCC CTAACTCCGC CCATCCCGCC CCTAACTCCG CCCAGTTCCG CCCATTCTCC 2041 GCCCCATGGC TGACTAATTT TTTTTATTTA TGCAGAGGCC GAGGCCGCCT CTGCCTCTGA 2101 GCTATTCCAG AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA GGCTTTTGCA AAAAGCTCCC 2161 GGGAGCTTGT ATATCCATTT TCGGATCTGA TCAGCACGTG TTGACAATTA ATCATCGGCA 2221 TAGTATATCG GCATAGTATA ATACGACAAG GTGAGGAACT AAACCATGGC CAAGTTGACC 2281 AGTGCCGTTC CGGTGCTCAC CGCGCGCGAC GTCGCCGGAG CGGTCGAGTT CTGGACCGAC 2341 CGGCTCGGGT TCTCCCGGGA CTTCGTGGAG GACGACTTCG CCGGTGTGGT CCGGGACGAC 2401 GTGACCCTGT TCATCAGCGC GGTCCAGGAC CAGGTGGTGC CGGACAACAC CCTGGCCTGG 2461 GTGTGGGTGC GCGGCCTGGA CGAGCTGTAC GCCGAGTGGT CGGAGGTCGT GTCCACGAAC 2521 TTCCGGGACG CCTCCGGGCC GGCCATGACC GAGATCGGCG AGCAGCCGTG GGGGCGGGAG 2581 TTCGCCCTGC GCGACCCGGC CGGCAACTGC GTGCACTTCG TGGCCGAGGA GCAGGACTGA 2641 CACGTGCTAC GAGATTTCGA TTCCACCGCC GCCTTCTATG AAAGGTTGGG CTTCGGAATC 2701 GTTTTCCGGG ACGCCGGCTG GATGATCCTC CAGCGCGGGG ATCTCATGCT GGAGTTCTTC 2761 GCCCACCCCA ACTTGTTTAT TGCAGCTTAT AATGGTTACA AATAAAGCAA TAGCATCACA 2821 AATTTCACAA ATAAAGCATT TTTTTCACTG CATTCTAGTT GTGGTTTGTC CAAACTCATC 2881 AATGTATCTT ATCATGTCTG TATACCGTCG ACCTCTAGCT AGAGCTTGGC GTAATCATGG 2941 TCATAGCTGT TTCCTGTGTG AAATTGTTAT CCGCTCACAA TTCCACACAA CATACGAGCC 3001 GGAAGCATAA AGTGTAAAGC CTGGGGTGCC TAATGAGTGA GCTAACTCAC ATTAATTGCG 3061 TTGCGCTCAC TGCCCGCTTT CCAGTCGGGA AACCTGTCGT GCCAGCTGCA TTAATGAATC 3121 GGCCAACGCG CGGGGAGAGG CGGTTTGCGT ATTGGGCGCT CTTCCGCTTC CTCGCTCACT 3181 GACTCGCTGC GCTCGGTCGT TCGGCTGCGG CGAGCGGTAT CAGCTCACTC AAAGGCGGTA 3241 ATACGGTTAT CCACAGAATC AGGGGATAAC GCAGGAAAGA ACATGTGAGC AAAAGGCCAG 3301 CAAAAGGCCA GGAACCGTAA AAAGGCCGCG TTGCTGGCGT TTTTCCATAG GCTCCGCCCC 3361 CCTGACGAGC ATCACAAAAA TCGACGCTCA AGTCAGAGGT GGCGAAACCC GACAGGACTA 3421 TAAAGATACC AGGCGTTTCC CCCTGGAAGC TCCCTCGTGC GCTCTCCTGT TCCGACCCTG 3481 CCGCTTACCG GATACCTGTC CGCCTTTCTC CCTTCGGGAA GCGTGGCGCT TTCTCATAGC 3541 TCACGCTGTA GGTATCTCAG TTCGGTGTAG GTCGTTCGCT CCAAGCTGGG CTGTGTGCAC 3601 GAACCCCCCG TTCAGCCCGA CCGCTGCGCC TTATCCGGTA ACTATCGTCT TGAGTCCAAC 3661 CCGGTAAGAC ACGACTTATC GCCACTGGCA GCAGCCACTG GTAACAGGAT TAGCAGAGCG 3721 AGGTATGTAG GCGGTGCTAC AGAGTTCTTG AAGTGGTGGC CTAACTACGG CTACACTAGA 3781 AGAACAGTAT TTGGTATCTG CGCTCTGCTG AAGCCAGTTA CCTTCGGAAA AAGAGTTGGT 3841 AGCTCTTGAT CCGGCAAACA AACCACCGCT GGTAGCGGTG GTTTTTTTGT TTGCAAGCAG 3901 CAGATTACGC GCAGAAAAAA AGGATCTCAA GAAGATCCTT TGATCTTTTC TACGGGGTCT 3961 GACGCTCAGT GGAACGAAAA CTCACGTTAA GGGATTTTGG TCATGAGATT ATCAAAAAGG 4021 ATCTTCACCT AGATCCTTTT AAATTAAAAA TGAAGTTTTA AATCAATCTA AAGTATATAT 4081 GAGTAAACTT GGTCTGACAG TTACCAATGC TTAATCAGTG AGGCACCTAT CTCAGCGATC 4141 TGTCTATTTC GTTCATCCAT AGTTGCCTGA CTCCCCGTCG TGTAGATAAC TACGATACGG 4201 GAGGGCTTAC CATCTGGCCC CAGTGCTGCA ATGATACCGC GAGACCCACG CTCACCGGCT 4261 CCAGATTTAT CAGCAATAAA CCAGCCAGCC GGAAGGGCCG AGCGCAGAAG TGGTCCTGCA 4321 ACTTTATCCG CCTCCATCCA GTCTATTAAT TGTTGCCGGG AAGCTAGAGT AAGTAGTTCG 4381 CCAGTTAATA GTTTGCGCAA CGTTGTTGCC ATTGCTACAG GCATCGTGGT GTCACGCTCG 4441 TCGTTTGGTA TGGCTTCATT CAGCTCCGGT TCCCAACGAT CAAGGCGAGT TACATGATCC 4501 CCCATGTTGT GCAAAAAAGC GGTTAGCTCC TTCGGTCCTC CGATCGTTGT CAGAAGTAAG 4561 TTGGCCGCAG TGTTATCACT CATGGTTATG GCAGCACTGC ATAATTCTCT TACTGTCATG 4621 CCATCCGTAA GATGCTTTTC TGTGACTGGT GAGTACTCAA CCAAGTCATT CTGAGAATAG 4681 TGTATGCGGC GACCGAGTTG CTCTTGCCCG GCGTCAATAC GGGATAATAC CGCGCCACAT 4741 AGCAGAACTT TAAAAGTGCT CATCATTGGA AAACGTTCTT CGGGGCGAAA ACTCTCAAGG 4801 ATCTTACCGC TGTTGAGATC CAGTTCGATG TAACCCACTC GTGCACCCAA CTGATCTTCA 4861 GCATCTTTTA CTTTCACCAG CGTTTCTGGG TGAGCAAAAA CAGGAAGGCA AAATGCCGCA 4921 AAAAAGGGAA TAAGGGCGAC ACGGAAATGT TGAATACTCA TACTCTTCCT TTTTCAATAT 4981 TATTGAAGCA TTTATCAGGG TTATTGTCTC ATGAGCGGAT ACATATTTGA ATGTATTTAG 5041 AAAAATAAAC AAATAGGGGT TCCGCGCACA TTTCCCCGAA AAGTGCCACC TGACGTC//
