载体基本信息

出品公司: Invitrogen

载体名称: pcDNA4/His B

质粒类型: 哺乳动物表达载体；cDNA表达载体

高拷贝/低拷贝: 高拷贝

克隆方法: 多克隆位点，限制性内切酶

启动子: CMV

载体大小: 5098 bp

5 测序引物及序列: T7 Forward: 5’-TAATACGACTCACTATAGGG-3’

3 测序引物及序列: BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3

载体标签: His Tag (C-端）, Xpress Epitope Tag（C-端）

载体抗性: 氨苄青霉素

筛选标记: Zeocin

克隆菌株: TOP10,JM109等

宿主细胞（系）: 常规细胞系，如293、Hela等

备注: pcDNA4/His B 载体是哺乳动物表达载体，适用于cDNA的表达与克隆；
CMV启动子驱动目的基因的高水平表达；
pcDNA4/His B,B,C的区别仅在于多克隆位点处；
pcDNA4/His 载体易于克隆到其它载体上。

产品目录号: V861-20

稳定性: 瞬表达或稳表达

组成型/诱导型: 组成型

病毒/非病毒: 非病毒

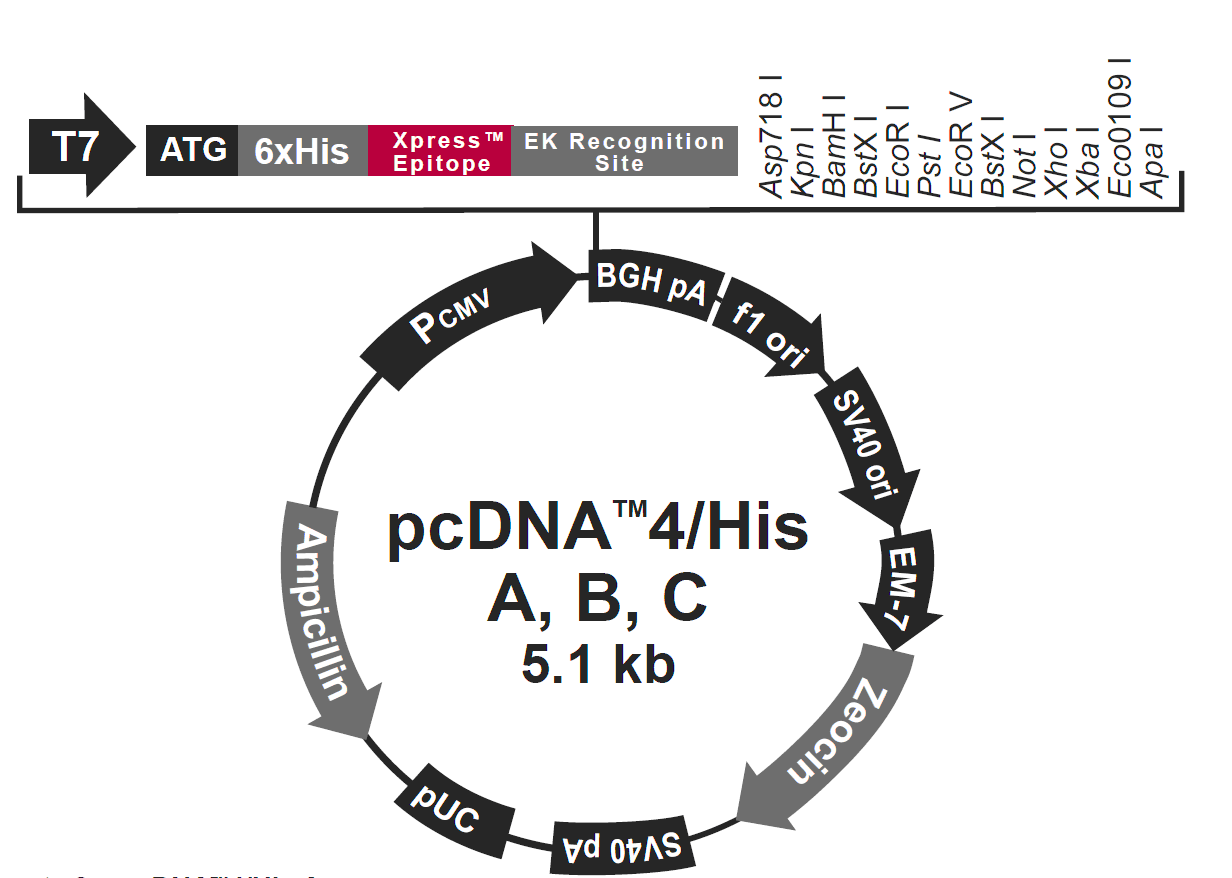

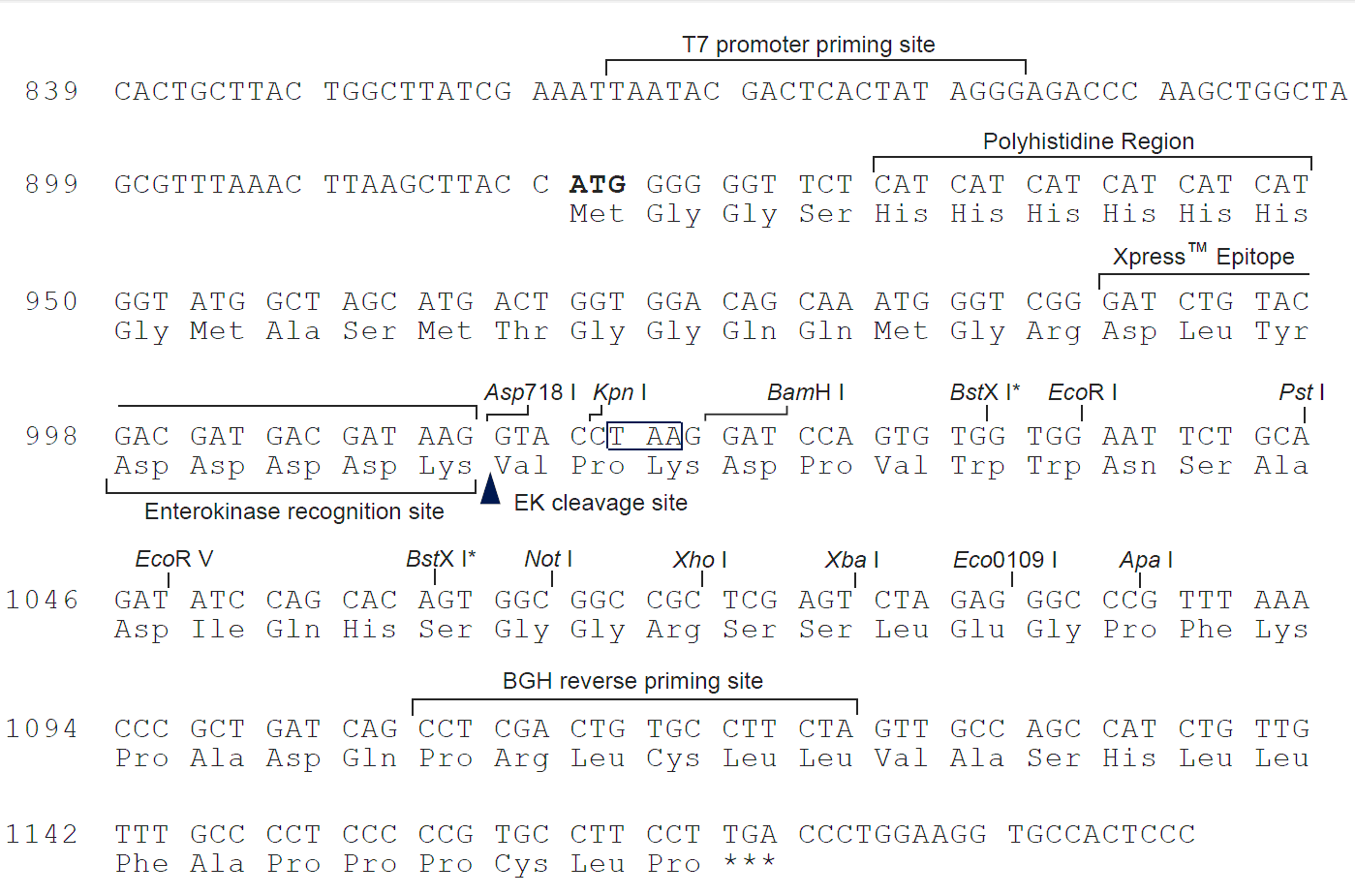

载体质粒图谱和多克隆位点信息

载体简介

载体序列

LOCUS       pcDNA4/His B	5098 bp 	DNA	SYNDEFINITION  pcDNA4/His BACCESSION   KEYWORDS    SOURCE        ORGANISM  other sequences; artificial sequences; vectors.FEATURES             Location/Qualifiers     source          1..5098                     /organism="pcDNA4/His B"                     /mol_type="other DNA"     promoter        236..852                     /label="CMV_immearly_promoter"     misc_feature    315..602                     /label="CAG_enhancer"     misc_feature    769..789                     /label="CMV_fwd_primer"     promoter        863..881                     /label="T7_promoter"     misc_feature    952..970                     /label="Xpress_fwd_primer"     misc_feature    953..985                     /label="T7_leader"     misc_feature    989..1012                     /label="Xpress_EK"     misc_feature    complement(1106..1123)                     /label="BGH_rev_primer"     terminator      1109..1336                     /label="bGH_PA_terminator"     rep_origin      1399..1705                     /label="f1_origin"     misc_feature    complement(1819..1839)                     /label="pBABE_3_primer"     misc_feature    complement(1825..2040)                     /label="SV40_enhancer"     promoter        1837..2105                     /label="SV40_promoter"     rep_origin      2004..2081                     /label="SV40_origin"     misc_feature    2066..2085                     /label="SV40pro_F_primer"     promoter        2199..2266                     /label="EM7_promoter"     misc_feature    2267..2641                     /label="sh_ble"     gene            2267..2638                     /label="bleo"                     /gene="bleo"     terminator      2774..2893                     /label="SV40_PA_terminator"     misc_feature    2862..2881                     /label="EBV_rev_primer"     promoter        complement(2937..2955)                     /label="M13_reverse_primer"     misc_feature    complement(2954..2976)                     /label="M13_pUC_rev_primer"     promoter        complement(2990..3019)                     /label="lac_promoter"     gene            complement(4102..4962)                     /label="Ampicillin"                     /gene="Ampicillin"     CDS             complement(4102..4962)                     /label="ORF frame 2"                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA                     EIGASLIKHW*"     promoter        complement(5004..5032)                     /label="AmpR_promoter"                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA                     EIGASLIKHW*"ORIGIN    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC  901 GTTTAAACTT AAGCTTACCA TGGGGGGTTC TCATCATCAT CATCATCATG GTATGGCTAG  961 CATGACTGGT GGACAGCAAA TGGGTCGGGA TCTGTACGAC GATGACGATA AGGTACCTAA 1021 GGATCCAGTG TGGTGGAATT CTGCAGATAT CCAGCACAGT GGCGGCCGCT CGAGTCTAGA 1081 GGGCCCGTTT AAACCCGCTG ATCAGCCTCG ACTGTGCCTT CTAGTTGCCA GCCATCTGTT 1141 GTTTGCCCCT CCCCCGTGCC TTCCTTGACC CTGGAAGGTG CCACTCCCAC TGTCCTTTCC 1201 TAATAAAATG AGGAAATTGC ATCGCATTGT CTGAGTAGGT GTCATTCTAT TCTGGGGGGT 1261 GGGGTGGGGC AGGACAGCAA GGGGGAGGAT TGGGAAGACA ATAGCAGGCA TGCTGGGGAT 1321 GCGGTGGGCT CTATGGCTTC TGAGGCGGAA AGAACCAGCT GGGGCTCTAG GGGGTATCCC 1381 CACGCGCCCT GTAGCGGCGC ATTAAGCGCG GCGGGTGTGG TGGTTACGCG CAGCGTGACC 1441 GCTACACTTG CCAGCGCCCT AGCGCCCGCT CCTTTCGCTT TCTTCCCTTC CTTTCTCGCC 1501 ACGTTCGCCG GCTTTCCCCG TCAAGCTCTA AATCGGGGGC TCCCTTTAGG GTTCCGATTT 1561 AGTGCTTTAC GGCACCTCGA CCCCAAAAAA CTTGATTAGG GTGATGGTTC ACGTAGTGGG 1621 CCATCGCCCT GATAGACGGT TTTTCGCCCT TTGACGTTGG AGTCCACGTT CTTTAATAGT 1681 GGACTCTTGT TCCAAACTGG AACAACACTC AACCCTATCT CGGTCTATTC TTTTGATTTA 1741 TAAGGGATTT TGCCGATTTC GGCCTATTGG TTAAAAAATG AGCTGATTTA ACAAAAATTT 1801 AACGCGAATT AATTCTGTGG AATGTGTGTC AGTTAGGGTG TGGAAAGTCC CCAGGCTCCC 1861 CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCAGG TGTGGAAAGT 1921 CCCCAGGCTC CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG TCAGCAACCA 1981 TAGTCCCGCC CCTAACTCCG CCCATCCCGC CCCTAACTCC GCCCAGTTCC GCCCATTCTC 2041 CGCCCCATGG CTGACTAATT TTTTTTATTT ATGCAGAGGC CGAGGCCGCC TCTGCCTCTG 2101 AGCTATTCCA GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT AGGCTTTTGC AAAAAGCTCC 2161 CGGGAGCTTG TATATCCATT TTCGGATCTG ATCAGCACGT GTTGACAATT AATCATCGGC 2221 ATAGTATATC GGCATAGTAT AATACGACAA GGTGAGGAAC TAAACCATGG CCAAGTTGAC 2281 CAGTGCCGTT CCGGTGCTCA CCGCGCGCGA CGTCGCCGGA GCGGTCGAGT TCTGGACCGA 2341 CCGGCTCGGG TTCTCCCGGG ACTTCGTGGA GGACGACTTC GCCGGTGTGG TCCGGGACGA 2401 CGTGACCCTG TTCATCAGCG CGGTCCAGGA CCAGGTGGTG CCGGACAACA CCCTGGCCTG 2461 GGTGTGGGTG CGCGGCCTGG ACGAGCTGTA CGCCGAGTGG TCGGAGGTCG TGTCCACGAA 2521 CTTCCGGGAC GCCTCCGGGC CGGCCATGAC CGAGATCGGC GAGCAGCCGT GGGGGCGGGA 2581 GTTCGCCCTG CGCGACCCGG CCGGCAACTG CGTGCACTTC GTGGCCGAGG AGCAGGACTG 2641 ACACGTGCTA CGAGATTTCG ATTCCACCGC CGCCTTCTAT GAAAGGTTGG GCTTCGGAAT 2701 CGTTTTCCGG GACGCCGGCT GGATGATCCT CCAGCGCGGG GATCTCATGC TGGAGTTCTT 2761 CGCCCACCCC AACTTGTTTA TTGCAGCTTA TAATGGTTAC AAATAAAGCA ATAGCATCAC 2821 AAATTTCACA AATAAAGCAT TTTTTTCACT GCATTCTAGT TGTGGTTTGT CCAAACTCAT 2881 CAATGTATCT TATCATGTCT GTATACCGTC GACCTCTAGC TAGAGCTTGG CGTAATCATG 2941 GTCATAGCTG TTTCCTGTGT GAAATTGTTA TCCGCTCACA ATTCCACACA ACATACGAGC 3001 CGGAAGCATA AAGTGTAAAG CCTGGGGTGC CTAATGAGTG AGCTAACTCA CATTAATTGC 3061 GTTGCGCTCA CTGCCCGCTT TCCAGTCGGG AAACCTGTCG TGCCAGCTGC ATTAATGAAT 3121 CGGCCAACGC GCGGGGAGAG GCGGTTTGCG TATTGGGCGC TCTTCCGCTT CCTCGCTCAC 3181 TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA TCAGCTCACT CAAAGGCGGT 3241 AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG AACATGTGAG CAAAAGGCCA 3301 GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA GGCTCCGCCC 3361 CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC CGACAGGACT 3421 ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG CGCTCTCCTG TTCCGACCCT 3481 GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA AGCGTGGCGC TTTCTCATAG 3541 CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG GCTGTGTGCA 3601 CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC TTGAGTCCAA 3661 CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA TTAGCAGAGC 3721 GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG CCTAACTACG GCTACACTAG 3781 AAGAACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT ACCTTCGGAA AAAGAGTTGG 3841 TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT GGTTTTTTTG TTTGCAAGCA 3901 GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT CTACGGGGTC 3961 TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT TATCAAAAAG 4021 GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT AAATCAATCT AAAGTATATA 4081 TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT GAGGCACCTA TCTCAGCGAT 4141 CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC GTGTAGATAA CTACGATACG 4201 GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC GCTCACCGGC 4261 TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA GTGGTCCTGC 4321 AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG GAAGCTAGAG TAAGTAGTTC 4381 GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTACA GGCATCGTGG TGTCACGCTC 4441 GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA TCAAGGCGAG TTACATGATC 4501 CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG TCAGAAGTAA 4561 GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC TTACTGTCAT 4621 GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA ACCAAGTCAT TCTGAGAATA 4681 GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAATA CGGGATAATA CCGCGCCACA 4741 TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT TCGGGGCGAA AACTCTCAAG 4801 GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA ACTGATCTTC 4861 AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC AAAATGCCGC 4921 AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC ATACTCTTCC TTTTTCAATA 4981 TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA TACATATTTG AATGTATTTA 5041 GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC CTGACGTC//
