载体基本信息

出品公司: Invitrogen

载体名称: pcDNA4/His C

质粒类型: 哺乳动物表达载体；cDNA表达载体

高拷贝/低拷贝: 高拷贝

克隆方法: 多克隆位点，限制性内切酶

启动子: CMV

载体大小: 5096 bp

5 测序引物及序列: T7 Forward: 5’-TAATACGACTCACTATAGGG-3’

3 测序引物及序列: BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3

载体标签: His Tag (C-端）, Xpress Epitope Tag（C-端）

载体抗性: 氨苄青霉素

筛选标记: Zeocin

克隆菌株: TOP10,JM109等

宿主细胞（系）: 常规细胞系，如293、Hela等

备注: pcDNA4/His C 载体是哺乳动物表达载体，适用于cDNA的表达与克隆；
CMV启动子驱动目的基因的高水平表达；
pcDNA4/His C,B,C的区别仅在于多克隆位点处；
pcDNA4/His 载体易于克隆到其它载体上。

产品目录号: V861-20

稳定性: 瞬表达或稳表达

组成型/诱导型: 组成型

病毒/非病毒: 非病毒

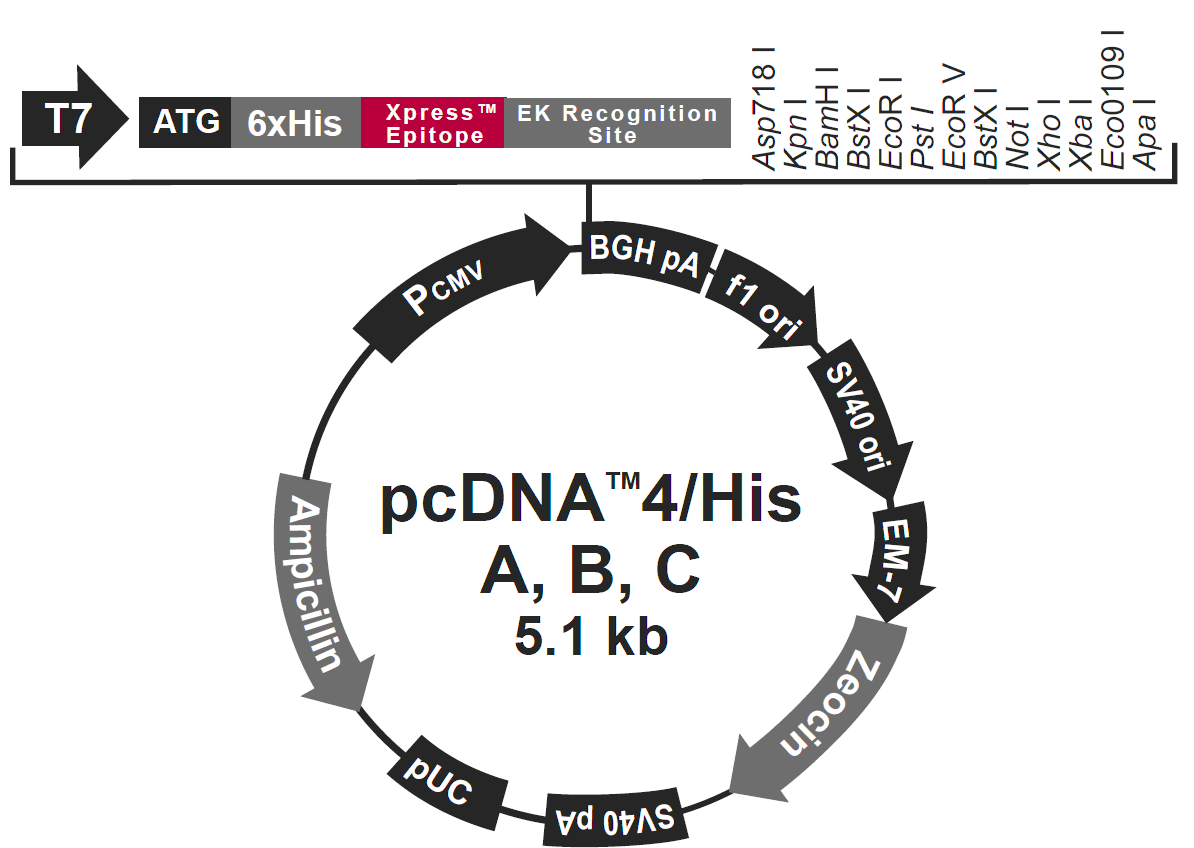

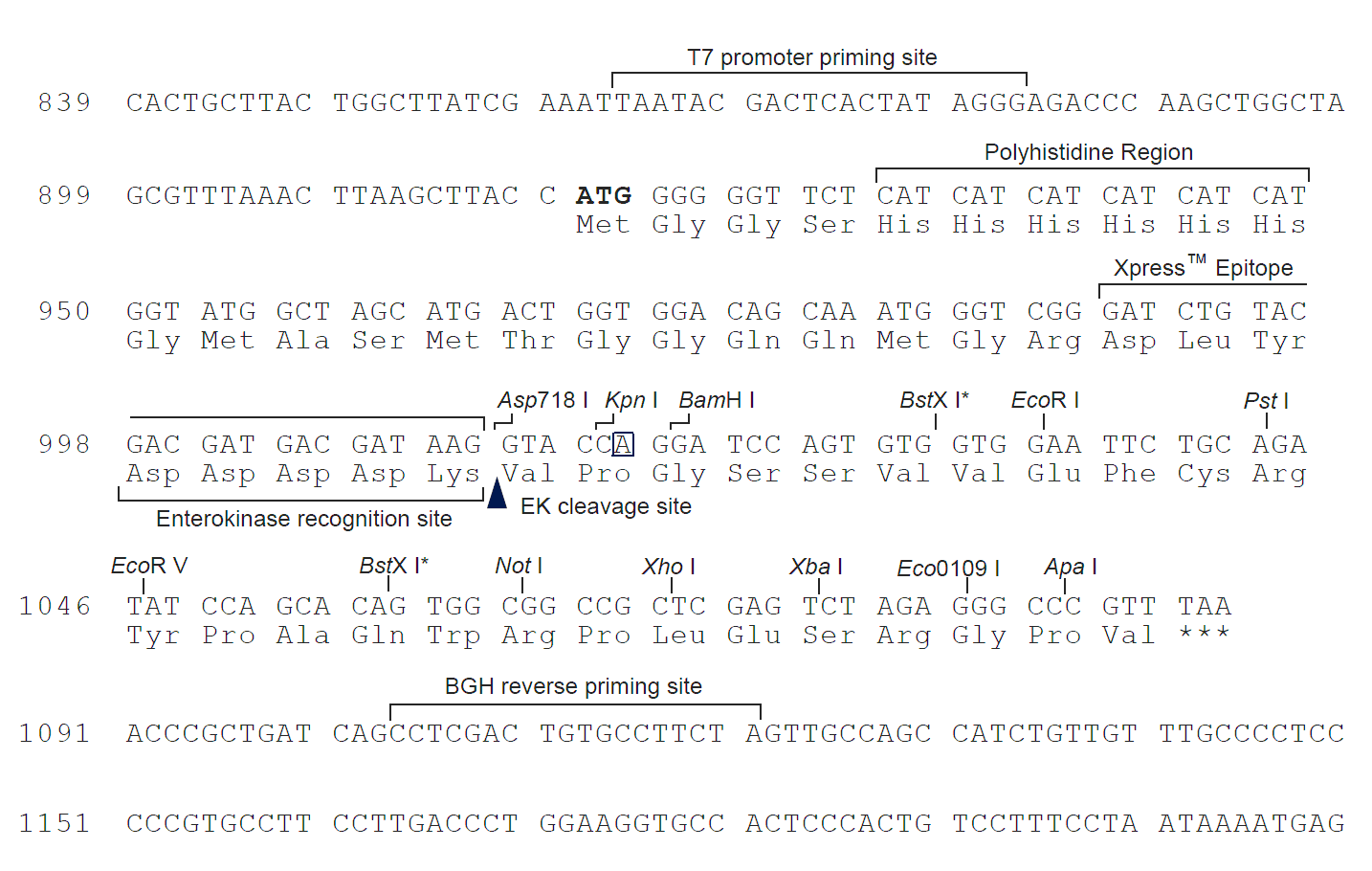

载体质粒图谱和多克隆位点信息

载体简介

载体序列

LOCUS       pcDNA4/His C	5096 bp 	DNA	SYNDEFINITION  pcDNA4/His CACCESSION   KEYWORDS    SOURCE        ORGANISM  other sequences; artificial sequences; vectors.FEATURES             Location/Qualifiers     source          1..5096                     /organism="pcDNA4/His C"                     /mol_type="other DNA"     promoter        236..852                     /label="CMV_immearly_promoter"     misc_feature    315..602                     /label="CAG_enhancer"     misc_feature    769..789                     /label="CMV_fwd_primer"     promoter        863..881                     /label="T7_promoter"     misc_feature    952..970                     /label="Xpress_fwd_primer"     misc_feature    953..985                     /label="T7_leader"     misc_feature    989..1012                     /label="Xpress_EK"     misc_feature    complement(1104..1121)                     /label="BGH_rev_primer"     terminator      1107..1334                     /label="bGH_PA_terminator"     rep_origin      1397..1703                     /label="f1_origin"     misc_feature    complement(1817..1837)                     /label="pBABE_3_primer"     misc_feature    complement(1823..2038)                     /label="SV40_enhancer"     promoter        1835..2103                     /label="SV40_promoter"     rep_origin      2002..2079                     /label="SV40_origin"     misc_feature    2064..2083                     /label="SV40pro_F_primer"     promoter        2197..2264                     /label="EM7_promoter"     misc_feature    2265..2639                     /label="sh_ble"     gene            2265..2636                     /label="bleo"                     /gene="bleo"     terminator      2772..2891                     /label="SV40_PA_terminator"     misc_feature    2860..2879                     /label="EBV_rev_primer"     promoter        complement(2935..2953)                     /label="M13_reverse_primer"     misc_feature    complement(2952..2974)                     /label="M13_pUC_rev_primer"     promoter        complement(2988..3017)                     /label="lac_promoter"     gene            complement(4100..4960)                     /label="Ampicillin"                     /gene="Ampicillin"     CDS             complement(4100..4960)                     /label="ORF frame 2"                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA                     EIGASLIKHW*"     promoter        complement(5002..5030)                     /label="AmpR_promoter"                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA                     EIGASLIKHW*"ORIGIN    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC  901 GTTTAAACTT AAGCTTACCA TGGGGGGTTC TCATCATCAT CATCATCATG GTATGGCTAG  961 CATGACTGGT GGACAGCAAA TGGGTCGGGA TCTGTACGAC GATGACGATA AGGTACCAGG 1021 ATCCAGTGTG GTGGAATTCT GCAGATATCC AGCACAGTGG CGGCCGCTCG AGTCTAGAGG 1081 GCCCGTTTAA ACCCGCTGAT CAGCCTCGAC TGTGCCTTCT AGTTGCCAGC CATCTGTTGT 1141 TTGCCCCTCC CCCGTGCCTT CCTTGACCCT GGAAGGTGCC ACTCCCACTG TCCTTTCCTA 1201 ATAAAATGAG GAAATTGCAT CGCATTGTCT GAGTAGGTGT CATTCTATTC TGGGGGGTGG 1261 GGTGGGGCAG GACAGCAAGG GGGAGGATTG GGAAGACAAT AGCAGGCATG CTGGGGATGC 1321 GGTGGGCTCT ATGGCTTCTG AGGCGGAAAG AACCAGCTGG GGCTCTAGGG GGTATCCCCA 1381 CGCGCCCTGT AGCGGCGCAT TAAGCGCGGC GGGTGTGGTG GTTACGCGCA GCGTGACCGC 1441 TACACTTGCC AGCGCCCTAG CGCCCGCTCC TTTCGCTTTC TTCCCTTCCT TTCTCGCCAC 1501 GTTCGCCGGC TTTCCCCGTC AAGCTCTAAA TCGGGGGCTC CCTTTAGGGT TCCGATTTAG 1561 TGCTTTACGG CACCTCGACC CCAAAAAACT TGATTAGGGT GATGGTTCAC GTAGTGGGCC 1621 ATCGCCCTGA TAGACGGTTT TTCGCCCTTT GACGTTGGAG TCCACGTTCT TTAATAGTGG 1681 ACTCTTGTTC CAAACTGGAA CAACACTCAA CCCTATCTCG GTCTATTCTT TTGATTTATA 1741 AGGGATTTTG CCGATTTCGG CCTATTGGTT AAAAAATGAG CTGATTTAAC AAAAATTTAA 1801 CGCGAATTAA TTCTGTGGAA TGTGTGTCAG TTAGGGTGTG GAAAGTCCCC AGGCTCCCCA 1861 GCAGGCAGAA GTATGCAAAG CATGCATCTC AATTAGTCAG CAACCAGGTG TGGAAAGTCC 1921 CCAGGCTCCC CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCATA 1981 GTCCCGCCCC TAACTCCGCC CATCCCGCCC CTAACTCCGC CCAGTTCCGC CCATTCTCCG 2041 CCCCATGGCT GACTAATTTT TTTTATTTAT GCAGAGGCCG AGGCCGCCTC TGCCTCTGAG 2101 CTATTCCAGA AGTAGTGAGG AGGCTTTTTT GGAGGCCTAG GCTTTTGCAA AAAGCTCCCG 2161 GGAGCTTGTA TATCCATTTT CGGATCTGAT CAGCACGTGT TGACAATTAA TCATCGGCAT 2221 AGTATATCGG CATAGTATAA TACGACAAGG TGAGGAACTA AACCATGGCC AAGTTGACCA 2281 GTGCCGTTCC GGTGCTCACC GCGCGCGACG TCGCCGGAGC GGTCGAGTTC TGGACCGACC 2341 GGCTCGGGTT CTCCCGGGAC TTCGTGGAGG ACGACTTCGC CGGTGTGGTC CGGGACGACG 2401 TGACCCTGTT CATCAGCGCG GTCCAGGACC AGGTGGTGCC GGACAACACC CTGGCCTGGG 2461 TGTGGGTGCG CGGCCTGGAC GAGCTGTACG CCGAGTGGTC GGAGGTCGTG TCCACGAACT 2521 TCCGGGACGC CTCCGGGCCG GCCATGACCG AGATCGGCGA GCAGCCGTGG GGGCGGGAGT 2581 TCGCCCTGCG CGACCCGGCC GGCAACTGCG TGCACTTCGT GGCCGAGGAG CAGGACTGAC 2641 ACGTGCTACG AGATTTCGAT TCCACCGCCG CCTTCTATGA AAGGTTGGGC TTCGGAATCG 2701 TTTTCCGGGA CGCCGGCTGG ATGATCCTCC AGCGCGGGGA TCTCATGCTG GAGTTCTTCG 2761 CCCACCCCAA CTTGTTTATT GCAGCTTATA ATGGTTACAA ATAAAGCAAT AGCATCACAA 2821 ATTTCACAAA TAAAGCATTT TTTTCACTGC ATTCTAGTTG TGGTTTGTCC AAACTCATCA 2881 ATGTATCTTA TCATGTCTGT ATACCGTCGA CCTCTAGCTA GAGCTTGGCG TAATCATGGT 2941 CATAGCTGTT TCCTGTGTGA AATTGTTATC CGCTCACAAT TCCACACAAC ATACGAGCCG 3001 GAAGCATAAA GTGTAAAGCC TGGGGTGCCT AATGAGTGAG CTAACTCACA TTAATTGCGT 3061 TGCGCTCACT GCCCGCTTTC CAGTCGGGAA ACCTGTCGTG CCAGCTGCAT TAATGAATCG 3121 GCCAACGCGC GGGGAGAGGC GGTTTGCGTA TTGGGCGCTC TTCCGCTTCC TCGCTCACTG 3181 ACTCGCTGCG CTCGGTCGTT CGGCTGCGGC GAGCGGTATC AGCTCACTCA AAGGCGGTAA 3241 TACGGTTATC CACAGAATCA GGGGATAACG CAGGAAAGAA CATGTGAGCA AAAGGCCAGC 3301 AAAAGGCCAG GAACCGTAAA AAGGCCGCGT TGCTGGCGTT TTTCCATAGG CTCCGCCCCC 3361 CTGACGAGCA TCACAAAAAT CGACGCTCAA GTCAGAGGTG GCGAAACCCG ACAGGACTAT 3421 AAAGATACCA GGCGTTTCCC CCTGGAAGCT CCCTCGTGCG CTCTCCTGTT CCGACCCTGC 3481 CGCTTACCGG ATACCTGTCC GCCTTTCTCC CTTCGGGAAG CGTGGCGCTT TCTCATAGCT 3541 CACGCTGTAG GTATCTCAGT TCGGTGTAGG TCGTTCGCTC CAAGCTGGGC TGTGTGCACG 3601 AACCCCCCGT TCAGCCCGAC CGCTGCGCCT TATCCGGTAA CTATCGTCTT GAGTCCAACC 3661 CGGTAAGACA CGACTTATCG CCACTGGCAG CAGCCACTGG TAACAGGATT AGCAGAGCGA 3721 GGTATGTAGG CGGTGCTACA GAGTTCTTGA AGTGGTGGCC TAACTACGGC TACACTAGAA 3781 GAACAGTATT TGGTATCTGC GCTCTGCTGA AGCCAGTTAC CTTCGGAAAA AGAGTTGGTA 3841 GCTCTTGATC CGGCAAACAA ACCACCGCTG GTAGCGGTGG TTTTTTTGTT TGCAAGCAGC 3901 AGATTACGCG CAGAAAAAAA GGATCTCAAG AAGATCCTTT GATCTTTTCT ACGGGGTCTG 3961 ACGCTCAGTG GAACGAAAAC TCACGTTAAG GGATTTTGGT CATGAGATTA TCAAAAAGGA 4021 TCTTCACCTA GATCCTTTTA AATTAAAAAT GAAGTTTTAA ATCAATCTAA AGTATATATG 4081 AGTAAACTTG GTCTGACAGT TACCAATGCT TAATCAGTGA GGCACCTATC TCAGCGATCT 4141 GTCTATTTCG TTCATCCATA GTTGCCTGAC TCCCCGTCGT GTAGATAACT ACGATACGGG 4201 AGGGCTTACC ATCTGGCCCC AGTGCTGCAA TGATACCGCG AGACCCACGC TCACCGGCTC 4261 CAGATTTATC AGCAATAAAC CAGCCAGCCG GAAGGGCCGA GCGCAGAAGT GGTCCTGCAA 4321 CTTTATCCGC CTCCATCCAG TCTATTAATT GTTGCCGGGA AGCTAGAGTA AGTAGTTCGC 4381 CAGTTAATAG TTTGCGCAAC GTTGTTGCCA TTGCTACAGG CATCGTGGTG TCACGCTCGT 4441 CGTTTGGTAT GGCTTCATTC AGCTCCGGTT CCCAACGATC AAGGCGAGTT ACATGATCCC 4501 CCATGTTGTG CAAAAAAGCG GTTAGCTCCT TCGGTCCTCC GATCGTTGTC AGAAGTAAGT 4561 TGGCCGCAGT GTTATCACTC ATGGTTATGG CAGCACTGCA TAATTCTCTT ACTGTCATGC 4621 CATCCGTAAG ATGCTTTTCT GTGACTGGTG AGTACTCAAC CAAGTCATTC TGAGAATAGT 4681 GTATGCGGCG ACCGAGTTGC TCTTGCCCGG CGTCAATACG GGATAATACC GCGCCACATA 4741 GCAGAACTTT AAAAGTGCTC ATCATTGGAA AACGTTCTTC GGGGCGAAAA CTCTCAAGGA 4801 TCTTACCGCT GTTGAGATCC AGTTCGATGT AACCCACTCG TGCACCCAAC TGATCTTCAG 4861 CATCTTTTAC TTTCACCAGC GTTTCTGGGT GAGCAAAAAC AGGAAGGCAA AATGCCGCAA 4921 AAAAGGGAAT AAGGGCGACA CGGAAATGTT GAATACTCAT ACTCTTCCTT TTTCAATATT 4981 ATTGAAGCAT TTATCAGGGT TATTGTCTCA TGAGCGGATA CATATTTGAA TGTATTTAGA 5041 AAAATAAACA AATAGGGGTT CCGCGCACAT TTCCCCGAAA AGTGCCACCT GACGTC//
