pTrcHis2A载体基本信息

出品公司:	Invitrogen
别名:	pTrcHis2A, pTrcHis2 A
质粒类型:	大肠杆菌表达载体
表达水平:	高拷贝
启动子:	Trc
克隆方法:	多克隆位点，限制性内切酶
载体大小:	4406 bp
5 测序引物及序列:	pTrcHis-F: gaggtatatattaatgtatcg
3 测序引物及序列:	pTrcHis-R:GATTTAATCTGTATCAGG
载体标签:	C-His, C-Myc
载体抗性:	Ampicillin
备注:	Hosts: E.coli NM522, E.coli INValphaF. Related vectors: pSE420. 适合高效表达真核基因。
产品目录号:	V365-20
稳定性:	瞬时表达 Transient
组成型:	组成型 Constitutive
病毒/非病毒:	非病毒

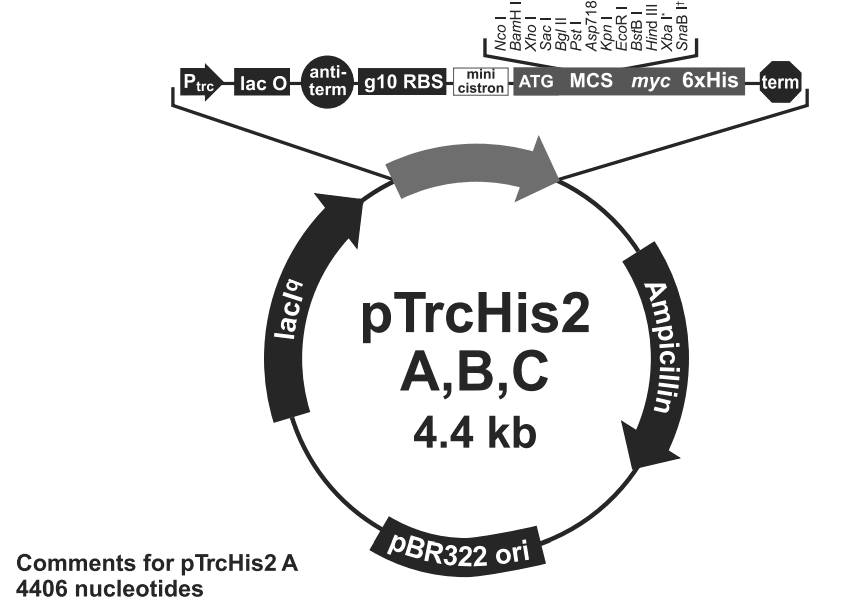

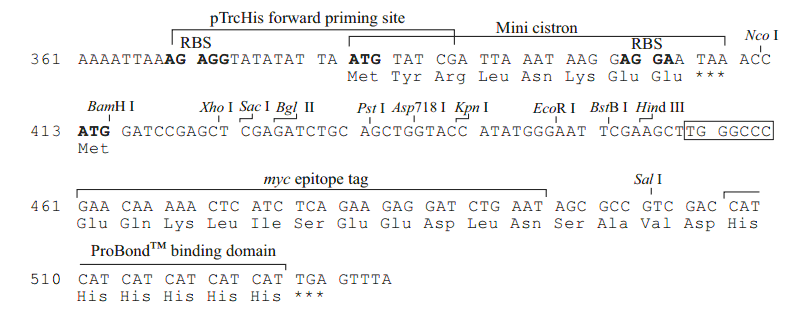

pTrcHis2A载体质粒图谱和多克隆位点信息

pTrcHis2A载体简介

The pTrcHis2 plasmids are pBR322-derived expression vectors designed for efficient recombinant protein expression and purification in E. coli. High levels of expression are possible using the trc (trp-lac) promoter (Egon et al., 1983) and the rrnB anti-termination region (Li et al., 1984). The trc promoter contains the –35 region of the trp promoter together with the –10 region of the lac promoter (Brosius et al., 1985; Egon et al., 1983; Mulligan et al., 1985). To regulate expression, the gene encoding Lac repressor (lacIq) is provided in the pTrcHis2 vectors, allowing regulation of the trc promoter regardless of whether the host strain contains a gene encoding the Lac repressor.

Isopropyl-Beta-D-thiogalactopyranoside (IPTG) is used to induce expression of your gene. Translation is enhanced by the bacteriophage T7 gene 10 translation enhancer and a minicistron that provides highly efficient translational restart into the open reading frame of the multiple cloning site. DNA inserts are positioned downstream and in frame with the initiation ATG and a C-terminal fusion peptide. The C-terminal peptide encodes the myc epitope and six histidine residues that function as a metal binding site in the expressed protein.

pTrcHis2A载体序列

LOCUS       pTrcHis2 A    4406 bp     DNA circular    SYN
DEFINITION  pTrcHis2 A
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|

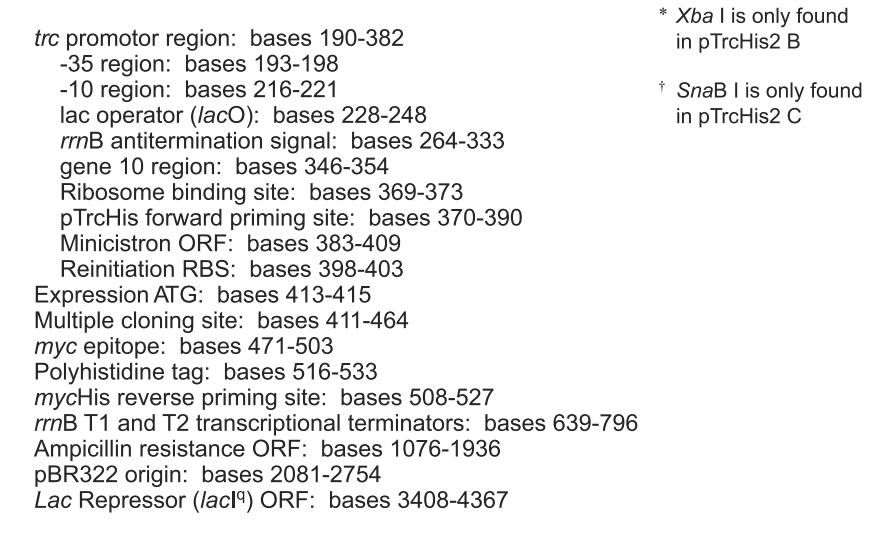

FEATURES             Location/Qualifiers
     source          1..4406
                     /organism="pTrcHis2 A"
                     /mol_type="other DNA"
     misc_feature    235..257
                     /label="M13_pUC_rev_primer"
     misc_feature    264..333
                     /label="rrnB_ATS"
     misc_feature    370..390
                     /label="pTrcHis_fwd_primer"
     misc_feature    383..409
                     /label="minicis"
     misc_feature    complement(589..606)
                     /label="pBAD_rev_primer"
     misc_feature    complement(589..606)
                     /label="pTrcHis_rev_primer"
     terminator      639..796
                     /label="rrnB_terminator"
     terminator      762..805
                     /label="rrnB_T1_terminator"
     terminator      937..964
                     /label="rrnB_T2_terminator"
     promoter        1006..1034
                     /label="AmpR_promoter"
     gene            1076..1936
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             1076..1936
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      2091..2710
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    3107..3129
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    3276..4367
                     /label="lacI"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             3408..4367
                     /label="ORF frame 3"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPSTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
ORIGIN
    1 GTTTGACAGC TTATCATCGA CTGCACGGTG CACCAATGCT TCTGGCGTCA GGCAGCCATC
   61 GGAAGCTGTG GTATGGCTGT GCAGGTCGTA AATCACTGCA TAATTCGTGT CGCTCAAGGC
  121 GCACTCCCGT TCTGGATAAT GTTTTTTGCG CCGACATCAT AACGGTTCTG GCAAATATTC
  181 TGAAATGAGC TGTTGACAAT TAATCATCCG GCTCGTATAA TGTGTGGAAT TGTGAGCGGA
  241 TAACAATTTC ACACAGGAAA CAGCGCCGCT GAGAAAAAGC GAAGCGGCAC TGCTCTTTAA
  301 CAATTTATCA GACAATCTGT GTGGGCACTC GACCGGAATT ATCGATTAAC TTTATTATTA
  361 AAAATTAAAG AGGTATATAT TAATGTATCG ATTAAATAAG GAGGAATAAA CCATGGATCC
  421 GAGCTCGAGA TCTGCAGCTG GTACCATATG GGAATTCGAA GCTTGGGCCC GAACAAAAAC
  481 TCATCTCAGA AGAGGATCTG AATAGCGCCG TCGACCATCA TCATCATCAT CATTGAGTTT
  541 AAACGGTCTC CAGCTTGGCT GTTTTGGCGG ATGAGAGAAG ATTTTCAGCC TGATACAGAT
  601 TAAATCAGAA CGCAGAAGCG GTCTGATAAA ACAGAATTTG CCTGGCGGCA GTAGCGCGGT
  661 GGTCCCACCT GACCCCATGC CGAACTCAGA AGTGAAACGC CGTAGCGCCG ATGGTAGTGT
  721 GGGGTCTCCC CATGCGAGAG TAGGGAACTG CCAGGCATCA AATAAAACGA AAGGCTCAGT
  781 CGAAAGACTG GGCCTTTCGT TTTATCTGTT GTTTGTCGGT GAACGCTCTC CTGAGTAGGA
  841 CAAATCCGCC GGGAGCGGAT TTGAACGTTG CGAAGCAACG GCCCGGAGGG TGGCGGGCAG
  901 GACGCCCGCC ATAAACTGCC AGGCATCAAA TTAAGCAGAA GGCCATCCTG ACGGATGGCC
  961 TTTTTGCGTT TCTACAAACT CTTTTTGTTT ATTTTTCTAA ATACATTCAA ATATGTATCC
 1021 GCTCATGAGA CAATAACCCT GATAAATGCT TCAATAATAT TGAAAAAGGA AGAGTATGAG
 1081 TATTCAACAT TTCCGTGTCG CCCTTATTCC CTTTTTTGCG GCATTTTGCC TTCCTGTTTT
 1141 TGCTCACCCA GAAACGCTGG TGAAAGTAAA AGATGCTGAA GATCAGTTGG GTGCACGAGT
 1201 GGGTTACATC GAACTGGATC TCAACAGCGG TAAGATCCTT GAGAGTTTTC GCCCCGAAGA
 1261 ACGTTTTCCA ATGATGAGCA CTTTTAAAGT TCTGCTATGT GGCGCGGTAT TATCCCGTGT
 1321 TGACGCCGGG CAAGAGCAAC TCGGTCGCCG CATACACTAT TCTCAGAATG ACTTGGTTGA
 1381 GTACTCACCA GTCACAGAAA AGCATCTTAC GGATGGCATG ACAGTAAGAG AATTATGCAG
 1441 TGCTGCCATA ACCATGAGTG ATAACACTGC GGCCAACTTA CTTCTGACAA CGATCGGAGG
 1501 ACCGAAGGAG CTAACCGCTT TTTTGCACAA CATGGGGGAT CATGTAACTC GCCTTGATCG
 1561 TTGGGAACCG GAGCTGAATG AAGCCATACC AAACGACGAG CGTGACACCA CGATGCCTGT
 1621 AGCAATGGCA ACAACGTTGC GCAAACTATT AACTGGCGAA CTACTTACTC TAGCTTCCCG
 1681 GCAACAATTA ATAGACTGGA TGGAGGCGGA TAAAGTTGCA GGACCACTTC TGCGCTCGGC
 1741 CCTTCCGGCT GGCTGGTTTA TTGCTGATAA ATCTGGAGCC GGTGAGCGTG GGTCTCGCGG
 1801 TATCATTGCA GCACTGGGGC CAGATGGTAA GCCCTCCCGT ATCGTAGTTA TCTACACGAC
 1861 GGGGAGTCAG GCAACTATGG ATGAACGAAA TAGACAGATC GCTGAGATAG GTGCCTCACT
 1921 GATTAAGCAT TGGTAACTGT CAGACCAAGT TTACTCATAT ATACTTTAGA TTGATTTAAA
 1981 ACTTCATTTT TAATTTAAAA GGATCTAGGT GAAGATCCTT TTTGATAATC TCATGACCAA
 2041 AATCCCTTAA CGTGAGTTTT CGTTCCACTG AGCGTCAGAC CCCGTAGAAA AGATCAAAGG
 2101 ATCTTCTTGA GATCCTTTTT TTCTGCGCGT AATCTGCTGC TTGCAAACAA AAAAACCACC
 2161 GCTACCAGCG GTGGTTTGTT TGCCGGATCA AGAGCTACCA ACTCTTTTTC CGAAGGTAAC
 2221 TGGCTTCAGC AGAGCGCAGA TACCAAATAC TGTCCTTCTA GTGTAGCCGT AGTTAGGCCA
 2281 CCACTTCAAG AACTCTGTAG CACCGCCTAC ATACCTCGCT CTGCTAATCC TGTTACCAGT
 2341 GGCTGCTGCC AGTGGCGATA AGTCGTGTCT TACCGGGTTG GACTCAAGAC GATAGTTACC
 2401 GGATAAGGCG CAGCGGTCGG GCTGAACGGG GGGTTCGTGC ACACAGCCCA GCTTGGAGCG
 2461 AACGACCTAC ACCGAACTGA GATACCTACA GCGTGAGCTA TGAGAAAGCG CCACGCTTCC
 2521 CGAAGGGAGA AAGGCGGACA GGTATCCGGT AAGCGGCAGG GTCGGAACAG GAGAGCGCAC
 2581 GAGGGAGCTT CCAGGGGGAA ACGCCTGGTA TCTTTATAGT CCTGTCGGGT TTCGCCACCT
 2641 CTGACTTGAG CGTCGATTTT TGTGATGCTC GTCAGGGGGG CGGAGCCTAT GGAAAAACGC
 2701 CAGCAACGCG GCCTTTTTAC GGTTCCTGGC CTTTTGCTGG CCTTTTGCTC ACATGTTCTT
 2761 TCCTGCGTTA TCCCCTGATT CTGTGGATAA CCGTATTACC GCCTTTGAGT GAGCTGATAC
 2821 CGCTCGCCGC AGCCGAACGA CCGAGCGCAG CGAGTCAGTG AGCGAGGAAG CGGAAGAGCG
 2881 CCTGATGCGG TATTTTCTCC TTACGCATCT GTGCGGTATT TCACACCGCA TATGGTGCAC
 2941 TCTCAGTACA ATCTGCTCTG ATGCCGCATA GTTAAGCCAG TATACACTCC GCTATCGCTA
 3001 CGTGACTGGG TCATGGCTGC GCCCCGACAC CCGCCAACAC CCGCTGACGC GCCCTGACGG
 3061 GCTTGTCTGC TCCCGGCATC CGCTTACAGA CAAGCTGTGA CCGTCTCCGG GAGCTGCATG
 3121 TGTCAGAGGT TTTCACCGTC ATCACCGAAA CGCGCGAGGC AGCAGATCAA TTCGCGCGCG
 3181 AAGGCGAAGC GGCATGCATT TACGTTGACA CCATCGAATG GTGCAAAACC TTTCGCGGTA
 3241 TGGCATGATA GCGCCCGGAA GAGAGTCAAT TCAGGGTGGT GAATGTGAAA CCAGTAACGT
 3301 TATACGATGT CGCAGAGTAT GCCGGTGTCT CTTATCAGAC CGTTTCCCGC GTGGTGAACC
 3361 AGGCCAGCCA CGTTTCTGCG AAAACGCGGG AAAAAGTGGA AGCGGCGATG GCGGAGCTGA
 3421 ATTACATTCC CAACCGCGTG GCACAACAAC TGGCGGGCAA ACAGTCGTTG CTGATTGGCG
 3481 TTGCCACCTC CAGTCTGGCC CTGCACGCGC CGTCGCAAAT TGTCGCGGCG ATTAAATCTC
 3541 GCGCCGATCA ACTGGGTGCC AGCGTGGTGG TGTCGATGGT AGAACGAAGC GGCGTCGAAG
 3601 CCTGTAAAGC GGCGGTGCAC AATCTTCTCG CGCAACGCGT CAGTGGGCTG ATCATTAACT
 3661 ATCCGCTGGA TGACCAGGAT GCCATTGCTG TGGAAGCTGC CTGCACTAAT GTTCCGGCGT
 3721 TATTTCTTGA TGTCTCTGAC CAGACACCCA TCAACAGTAT TATTTTCTCC CATGAAGACG
 3781 GTACGCGACT GGGCGTGGAG CATCTGGTCG CATTGGGTCA CCAGCAAATC GCGCTGTTAG
 3841 CGGGCCCATT AAGTTCTGTC TCGGCGCGTC TGCGTCTGGC TGGCTGGCAT AAATATCTCA
 3901 CTCGCAATCA AATTCAGCCG ATAGCGGAAC GGGAAGGCGA CTGGAGTGCC ATGTCCGGTT
 3961 TTCAACAAAC CATGCAAATG CTGAATGAGG GCATCGTTCC CACTGCGATG CTGGTTGCCA
 4021 ACGATCAGAT GGCGCTGGGC GCAATGCGCG CCATTACCGA GTCCGGGCTG CGCGTTGGTG
 4081 CGGATATCTC GGTAGTGGGA TACGACGATA CCGAAGACAG CTCATGTTAT ATCCCGCCGT
 4141 CAACCACCAT CAAACAGGAT TTTCGCCTGC TGGGGCAAAC CAGCGTGGAC CGCTTGCTGC
 4201 AACTCTCTCA GGGCCAGGCG GTGAAGGGCA ATCAGCTGTT GCCCGTCTCA CTGGTGAAAA
 4261 GAAAAACCAC CCTGGCGCCC AATACGCAAA CCGCCTCTCC CCGCGCGTTG GCCGATTCAT
 4321 TAATGCAGCT GGCACGACAG GTTTCCCGAC TGGAAAGCGG GCAGTGAGCG CAACGCAATT
 4381 AATGTGAGTT AGCGCGAATT GATCTG
//
