3 Models
DCF-3000FX - Ferrous Only Model
DCN-3000FX - Non-Ferrous Only Model

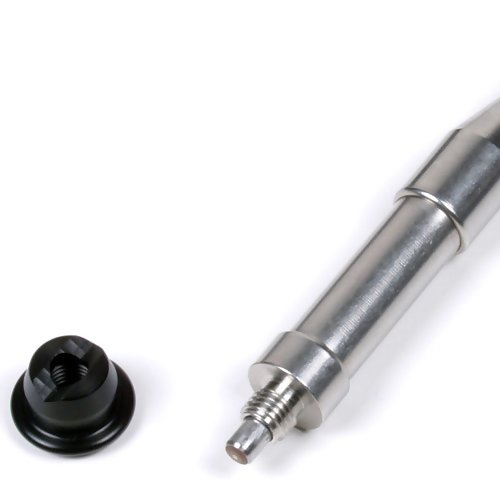

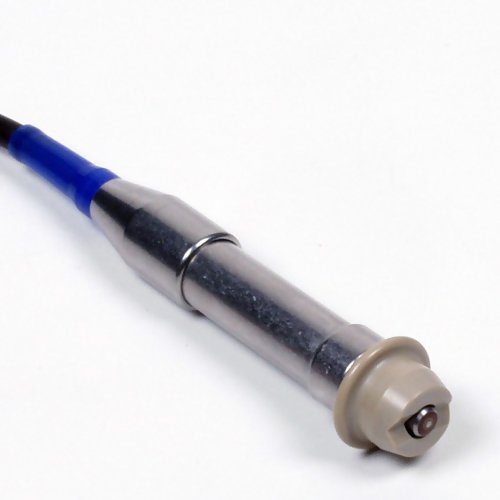

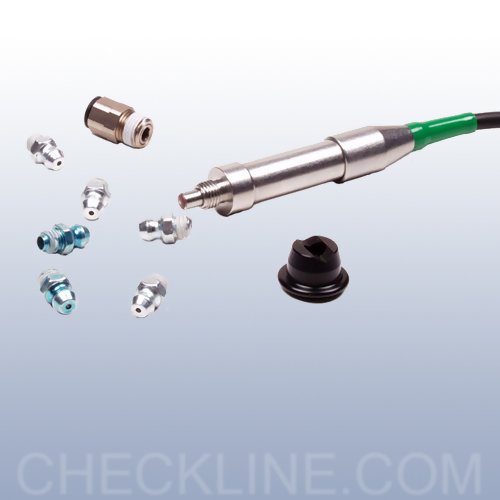

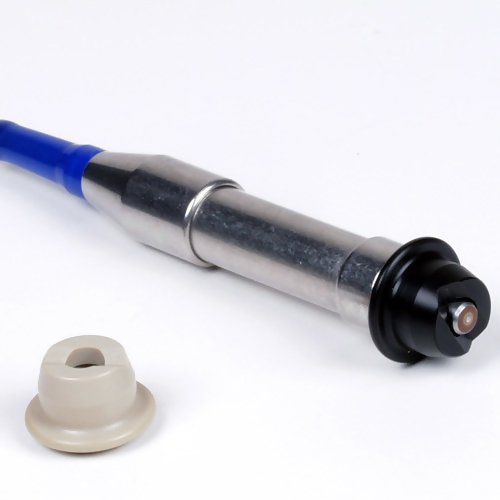

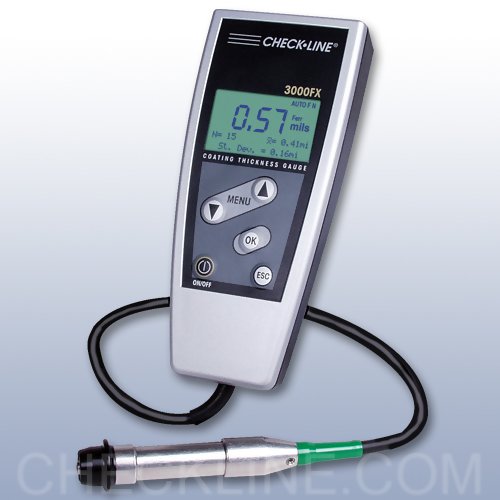

DCFN-3000FX - Combination Ferrous & Non-Ferrous Model The 3000FX Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for varnish, paint and electroplated coatings on iron/steel and varnish, paint and anodising coatings on non-ferrous metals and on austenitic stainless steels All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear. A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts. Where to use the 3000FX coating thickness gauge Series?
Wherever coatings are applied – whether on visual and aesthetic grounds, to prevent corrosion protection, or for functional and mechanical reasons – the coating thickness represents an essential quality feature. The 3000FX Series is ideal for speedy, non-destructive and exceptionally precise coating thickness measurement.
Features
- The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
- The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
- Data transfer to a printer or PC takes place via an infra-red interface
- Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading
- The 3000FX Series identifies the substrate and activates the appropriate measuring procedure
- Menu in a choice of three languages ensures ease of operation
- The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces
- Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F
- NIST Certificate Included at no additional cost
- 1 Year Warranty
Photo Gallery
Complete Kit

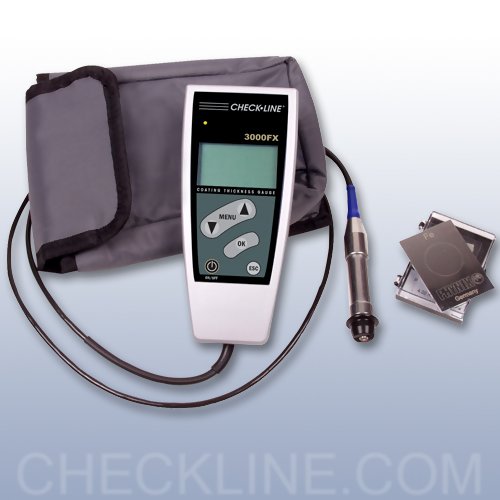

The 3000FX Series coating thickness gauge is supplied as a complete kit with gauge, ferrous and or non-ferrous zero plate(model dependent), 2 calibration standards, 2 AA batteries, soft carrying pouch, instruction manual and calibration certificate.
Specifications
| Measuring principle | magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous) | | Range | 0 - 60.00 mils
0 - 1500 µm | | Accuracy | ±0.04 mils / 1µm + 1% of reading | | Resolution | Refer to RESOLUTION TABLE, above | | Display | back-light, 4-digit alphanumeric, digit height 10mm | | Minimum Measuring Area | 0.2" x 0.2" (5 mm x 5 mm) | | Minimum Curvature Radius | convex: 0.12" (3 mm), concave: 0.2" (5 mm) | | Minimum Substrate Thickness | Ferrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 µm | | Calibration | factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value | | Memory | 80 readings | | Statistics Program | Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings | | Data Output | Infrared IrDA Standard | | Operating Temp. | 32 °F - 122 °F / 0 °C - 50 °C | | Surface Temp. | 5° F - 140° F / -15° C - 60° C (standard)
5° - 302° F / 15° - 150° C (w/optional footer) | | Storage Temp. | -4 °F to 140 °F / -20 °C to +60 °C | | Power | 2 AA 1.5V | | Dimensions | 5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm) | | Weight | 7 oz (200 g) (gauge + probe) | | Protection Class | IP 52 (proof against dust and dripping water) | | Standards | DIN, ISO, ASTM, BS | | Warranty | 1 Year | | Calibration Certificate | Included |
Related Products
Dimensions
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.12" (3 mm) | | Minimum Radius for Concave Surfaces | 0.2" (5 mm) | | Minimum Headroom | 4" (100 mm) | | Minimum Sample Diameter | 0.2" (5 mm) | | Minimum Substrate Thickness - F | 20 mils (0.5 mm) | | Minimum Substrate Thickness - NFe | 2 mils (50 µm) |
Resolution Table
| Mils | | 0.00 - 9.99 mils | 0.01 mils | | 10.00 - 24.98 mils | 0.02 mils | | 25.00 - 49.95 mils | 0.05 mils | | 50.0 - 99.9 mils | 0.1 mils | | Microns (µm) | | 0.0 - 99.9 µm | 0.1 µm | | 100.0 - 249.8 µm | 0.2 µm | | 250.0 - 499.5 µm | 0.5 µm | | 500 - 999 µm | 1 µm | | 1.000 - 1.998 mm | 0.002 mm |
