General purpose gauge measures a variety of materials
Range: 0.025 - 6.00 inches - 0.60 - 150.00 mm
Resolution:0.001" (0.01 mm)
Datalogging: NO
Measuring Range in Steel 0.025 - 6.00 inches
0.60 - 150.0 mm

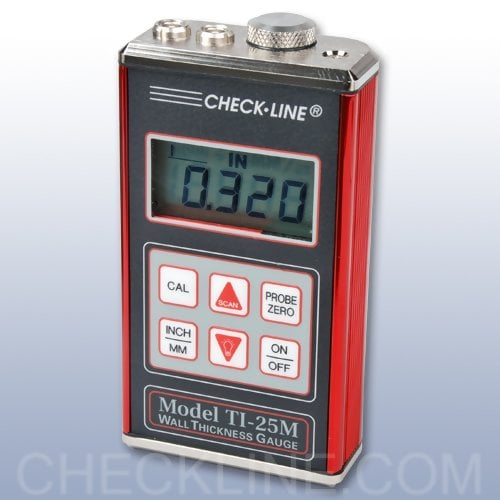

The TI-25M Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The TI-25M Ultrasonic Thickness Gauge can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The TI-25M Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions

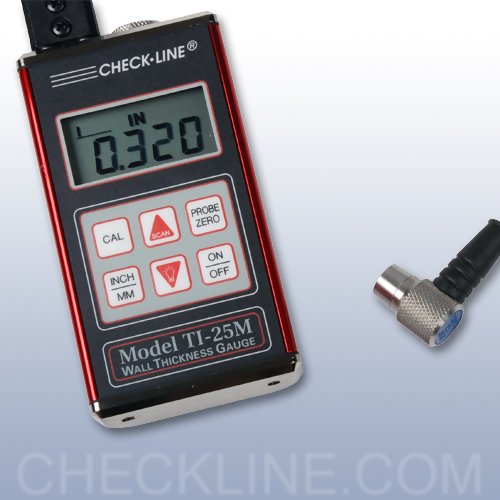

Photo Gallery
Features
Resolution of 0.001 inch (0.01 mm)
Large, back-lit LCD display retains last reading
Simple operator controls virtually eliminate training
Special-purpose probes are offered for a variety of applications
Switch-selected units for inches or mm
For underwater surveying, probe cable lengths up to 50 feet are optionally
CE Certified
Includes NIST Calibration Certificate

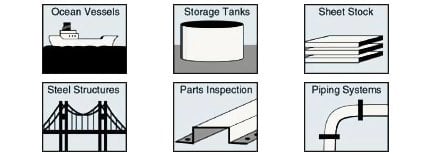

Typical Applications
Measuring Limits
Minimum Radius for Convex Surfaces
0.350" (8.89 mm)
Minimum Radius for Concave Surfaces
3" (76.2 mm)
Minimum Headroom
1" (25.0 mm)
Minimum Sample Diameter
0.150" (3.8 mm)
Minimum Substrate Thickness - F
na
Minimum Substrate Thickness - NFe
na
Specifications
Range in Steel
0.025-6.00" (0.60-150.0 mm)
Resolution
.001" (0.01 mm)
Display
4½ - Digit, 0.5" Back-lit LCD
Velocity Range
6,500-33,000 ft./sec (2000-10,000 m/sec.)
Probe
7.5 MHz, 0.25" Diameter (6.35 mm)
Cable
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
7 ounces (196 g)
Size
2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories Included
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty
Gauge: 5 Years Probes: 90 Days
Special Purpose Models
Model
Description
TI-25M-H
High Temperature for surfaces up to 650° F or 343° C. Transducer is 0.5" 5.0 MHz, range .050" to 19.99"
TI-25M-107
Cast Iron / Plastics
TI-25M-HW
Heavy Wall (0.040-19.999")
Complete Kit

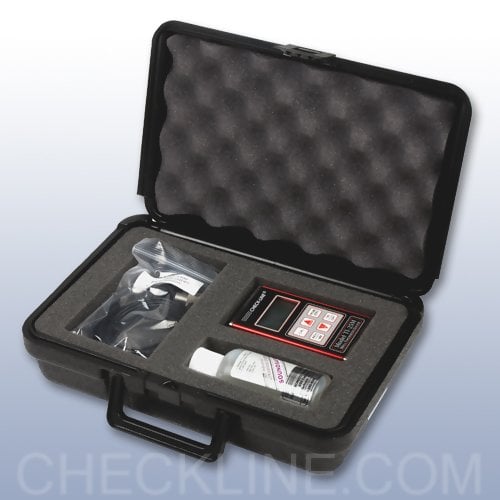

The TI-25M Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carryingcase
Typical Applications
