Measuring Range: 0 - 10 mm / 0 - 0.4 inch
Resolution: 0.01 mm / 0.001 inch The 500-JD digital thickness gauge features an easy to read LCD display along with the high accuracy. The user can select to display thickness in inches or mm. The 500-JD model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Features
- Operating by lifting device - self closing
- Resolution 0.001 inch(0.01 mm)
- Easy to read LCD Display
- User selectable units mm and inch
- RS 232 output for data collection
- Dial gauge model: Sylvac S 229

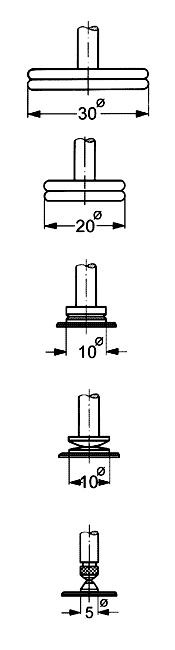

Feeler Shape
| To order, please indicate the desired feeler, e.g. 500-JD-B for gauge with feeler >b<. this means that not all feelers are included in the package> | | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge | | Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard | | Feeler: C For soft leather, cardboard, paper, foils, etc. | | Feeler: D For hard leather, plywood, fiberboard, etc. | | Feeler: E For sheet metal, etc. |
Specifications
| Resolution | 0.01 mm / 0.001 inch | | Measuring range | 0 - 10 mm / 0.4 inch | | Depth of jaw | 50 mm / 2 inch | | Display | LCD 6 digit, 8.5 mm high | | Measuring principle | Capacitive (Sylvac) | | Measuring pressure | < 1.4 N | | Feeler shape | a,b,c,d or e | | Lifting device | Operating by lifting device - self closing | | Data output | RS 232, optical coupling | | Power supply | Battery, 3 V Lithium, CR 2032 | | Temperature range | 10 - 45°C | | Weight, net | 300 g |
