世联博研公司现货供应Abq Industrial品牌订货号为的Checkline MTT-10 Digital Textile / Leather Thickness Gauge,Checkline MTT-10数码纺织/皮革厚度计产品

产品名称

Checkline MTT-10 Digital Textile / Leather Thickness Gauge,Checkline MTT-10数码纺织/皮革厚度计

产品货号

产品价格

现货询价，电话：010-67529703

产品规格

产品品牌

Abq Industrial

产品概述

产品详情

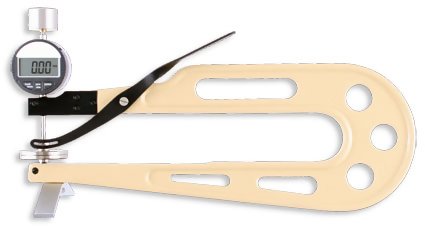

Checkline MTT-10 Digital Textile / Leather Thickness Gauge

Measures material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc.

Offered in either 300 mm (12") or 500 mm (20") Jaw Depth for measurement of wide samples

300 Series for 300mm Jaw Depth (12")
500 Series for 500mm Jaw Depth (20")

Measuring Range: 0 - 10 mm (0 - 0.400")
with option 25MM: 0 - 25 mm (0 - 1.000")

Resolution: 0.01 mm (0.001")

The MTT-10 is a digital dial thickness gauge designed for the accurate thickness measurement of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. It is offered with two different jaw depths providing clearance to measure wide samples. The combination of feeler diameter and load weight generate a specific "pressure" as required by many standardized test standard necessary in order to get reliable and repeatable measurements such as fabric, felt, textiles and similar compressible materials.

The instrument does not meet the DIN, EN and ISO standards.

The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.

line
Specifications for Common Applications
line

According to DIN EN ISO 5084 (Measuring face 20 cm² / Druck 0.1 kPa and 1 kPa)
For fleece according to DIN EN ISO 9073-2 (Measuring face 25 cm² / pressure 0.1 kPa and 0.5 kPa)
For geomaterials according to DIN EN ISO 964-1 (Measuring face 25 cm² / pressure 2 kPa and 20 kPa, not 200 kPa)
For non-woven textiles according to DIN 53855 (Measuring face 10 cm² und 25 cm² / various pressures according to standard)

line
Available Models
line

Model	Standard	Application	Feeler Ø	Feeler shape cm²	Pressure
MTT-10-T	similar to DIN EN ISO 5084	Textiles and Non- woven textiles	50.42	20	1 kPA
MTT-10-V	similar to DIN EN ISO 9073-2	Standard fleece	56.42	25	0.5 kPA
MTT-10-L	similar to DIN 53326 (new 2589)	Leather	10	0.785	50 kPA

line
Specifications
line

Measuring Range	0 - 10 mm 0 - 25 mm (with 25MM option only)
Resolution	0.01 mm
Depth of Jaws	300 mm (300 Series) 500 mm (500 Series)rf
Display	LCD 4 Digit, 8 mm tall
Pressure	Refer to table below (gauge, feeler, weight)
Feeler shape	50.5 mm Ø = 20 cm²

line
Related Products
line

6000GP Series
General Purpose Models

line

6000MP Series
Micro Probe Models

Micro Probe for measuring thin coatings, small parts or hard to reach areas or spots

line
Downloads
line

Checkline MTT-10 Textile / Leather Thickness Gauge - Instruction Manual

line
Buy Now
line

Check the items you would like to purchase then click "Add To Cart"
	Item	Price
	Checkline MTT-10-300-T Digital Thickness Gauge for Textiles and Non-Wovens with 300 mm Jaw Depth	$595.00
	Checkline MTT-10-300-V Digital Thickness Gauge for Fleece with 300 mm Jaw Depth	$595.00
	Checkline MTT-10-300-L Digital Thickness Gauge for Leather with 300 mm Jaw Depth	$595.00
	Checkline MTT-10-300-G Digital Thickness Gauge, 0-10mm for GEO-TEXTILE with 300 mm Jaw Depth	$595.00
	Checkline MTT-10-500-T Digital Thickness Gauge for Textiles and Non-Wovens with 500 mm Jaw Depth	$595.00
	Checkline MTT-10-500-V Digital Thickness Gauge for Fleece with 500 mm Jaw Depth	$595.00
	Checkline MTT-10-500-L Digital Thickness Gauge for Leather with 500 mm Jaw Depth	$595.00
	Checkline MTT-10-500-G Digital Thickness Gauge, 0-10mm for GEO-TEXTILE with 500 mm Jaw Depth	$595.00
