Digital Thickness Gauge
Resolution: 0.001 inch / 0.01 mm
8" (200 mm) Jaw Depth
The digital thickness gauge serie has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.
The 200-JD-25 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Specifications for Common Applications
Operating by lifting device - self closing
Resolution 0.01 mm (0.001 inch)
Includes swing-out foot for on-table operation
Dial gauge model: Sylvac S229
User selectable units mm and inch
RS 232 output for datacollection
Easy to read LCD Display
Tension Ranges
Model
Range
Resolution
Depth of Jaw
200-JD-25
1 in
25 mm
0.001 in
0.01 mm
8 in (200 mm)

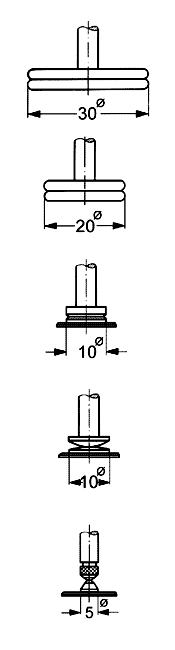

Feeler Shape
To order, please indicate the desired feeler, e.g. 500-JD-B for gauge with feeler >b<. this means that not all feelers are included in the package>
Feeler: A
For rubber, felt*, soft materials*, non wovens*, etc.
*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge
Feeler: B
For rubber, felt*, soft materials*, non wovens*, etc.
*Meets no DIN EN ISO standard
Feeler: C
For soft leather, cardboard, paper, foils, etc.
Feeler: D
For hard leather, plywood, fiberboard, etc.
Specifications
Resolution
0.01 mm / 0.001 inch
Measuring range
0 - 25 mm / 1 inch
Depth of jaws
200 mm
Display:
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery, 3 V Lithium, CR 2032
Temperature range
10-45°C
Weight, net
700 g
Complete Kit
Thickness gauge with battery and transport packing case.
