世联博研公司现货供应Abq Industrial品牌订货号为的Checkline JD-50R Digital Thickness Gauge,Checkline JD-50R数字测厚仪产品

产品名称

Checkline JD-50R Digital Thickness Gauge,Checkline JD-50R数字测厚仪

产品货号

产品价格

现货询价，电话：010-67529703

产品规格

产品品牌

Abq Industrial

产品概述

产品详情

Checkline JD-50R Digital Thickness Gauge

Digital Running Diameter and Thickness Gauges

Measuring Range: 0 - 10 mm / 0 - 0.4 inch

Resolution: 0.001 inch / 0.01 mm

2" (50 mm) Jaw Depth

Measuring Range: 0 - 10 mm / 0 - 0.4 inch
Resolution: 0.01 mm (0.001") or 0.001 mm (0.0001")

Ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, make these dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foils, ribbon, narrow fabrics, etc. - without stopping the manufacturing process.

line
Features
line

Easy to read digital display
Precision steel rollers for wire speeds up to 500 ft/min
Lightweight and compact
Available with or without roller flanges
Metric and inch units, selectable
USB Data Output (requires optional cable, DCPRMD-USB)
Traceable certificate optionally available

line
Specifications
line

Model	Measuring Range		Resolution		Lower Roller Flanges
Model	Metric	Inch	Metric	Inch	Lower Roller Flanges
JD50R	0 - 10 mm	0 - 0.4"	0.01 mm	0.001"	Yes
JD50RO	0 - 10 mm	0 - 0.4"	0.01 mm	0.001"	No

Jaw depth		2 inches (50 mm)
Spring force		3.6 ozf (1 Newton)
Scale diameter		2.25 inches (50 mm)
Roller width		0.34 inches (8.70mm)
Maximum line speed		164 yd/min (150 m/min)

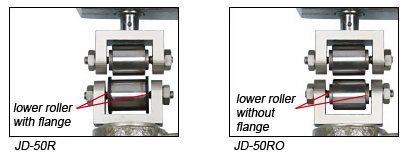

Note: For ribbon and narrow fabric material, use models without flanges

line
Related Products
line

J-CC
Connecting Cable

line

TSTG
Table Stand for Thickness Gauge

Table stand for thickness gauges

line
Downloads
line

Checkline JD-50R Digital Thickness Gauge - Instruction Manual

line
Buy Now
line

Check the items you would like to purchase then click "Add To Cart"
	Item	Price
	Checkline JD-50R Digital Running Diameter/Thickness Gauge, 0 - 10 mm / 0 - 0.400 in, with flanges	$895.00
	Checkline JD-50RO Digital Thickness Gauge without Flanges, Measuring Range 0 - 10 mm	$895.00
	Accessories	PRICE
	NISTCAL Traceable Calibration Certificate - Only for models WITHOUT Flanges	$100.00
	TSTG Table Stand for Thickness Gauge	$89.00
	DCPRMD-USB Data Output Cable for data transfer to PC	$165.00
