Measuring Range: 0 - 30 mm / 0 - 1.00 inch
Jaw Depth: 200 mm / 7.87 inch
Resolution: 0.1 mm / 0.001 inch The K-200 thickness gauge features an easy to read analog display along with the high accuracy. The K-200 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing. The K-200 is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.

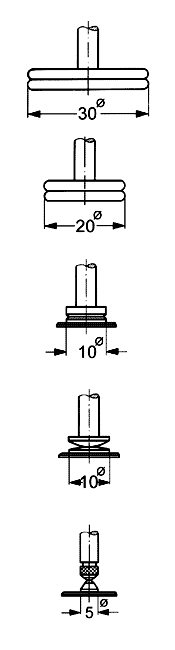

Feeler Shape
| To order, please indicate the desired feeler, e.g. K-200-B for gauge with feeler >b<. this means that not all feelers are included in the package> | | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge | | Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard | | Feeler: C For soft leather, cardboard, paper, foils, etc. | | Feeler: D For hard leather, plywood, fiberboard, etc. | | Feeler: E For sheet metal, etc. |
Specifications
| Resolution | 0.001 inch (0.1 mm) | | Measuring Range | 0 - 1.00 inch (0 - 30 mm) | | Depth Of Jaw | 7.87 in (200 mm) | | Scale Diameter | 2.12 in (54 mm) | | Measuring Pressure | 1.8 N (On request: 0.9/2.5 N) | | Feeler Shape | A/B/C/D/E | | Measuring Principle | Self closing | | Weight, net (gross) | 700 g (750 g) |
Complete Kit
| The K-200 comes complete with guage in transport packing case. | |
