THE TI-25M-UWM HAS BEEN REPLACED BY THE TI-UMX2 Underwater Ultrasonic Thickness Gauge
Underwater enclosure allows operation at depths to 300 feet
Range:
0.050 - 19.99 inches - 1.27 - 508.0 mm
Resolution: 0.001" (0.01 mm)
Datalogging: NO
Measuring Range in Steel
0.050 - 19.99 inches
1.27 - 508.0 mm The TI-25M-UWM Underwater Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 300 feet (91.44 m). TI-25M-UWM Underwater Wall Thickness Gages can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
Photo Gallery
Features
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- 300 feet depth rating
- Clear plexiglass construction, Stainless steel connectors, latches, and control bar
- Switch-selected units for inches or mm
- CE Certified
- NEW Elastic wrist strap secures the gauge during dives

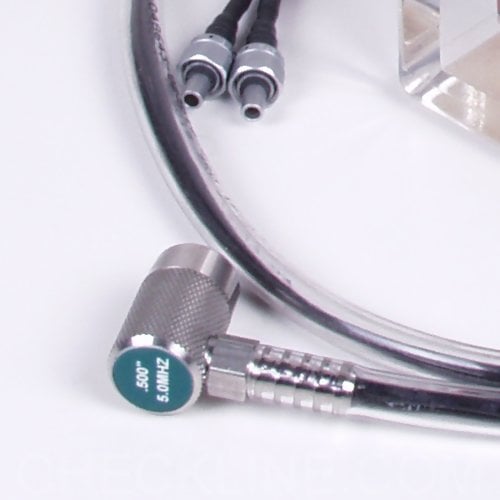

Specifications | Range in Steel | 0.050-19.99" (1.27 - 508.0 mm) | | Resolution | .001" (0.01 mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Velocity Range | 6,500-33,000 ft./sec (2000-10,000 m/sec.) | | Probe | 5 MHz, 0.5" Diameter | | Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. | | Battery Type | Two AA batteries | | Battery Life | 200 hours | | Weight | 2.8 pounds | | Size | 3.5 x 7.5 x 2.75"
(63.5 W x 190.5 H x 69.85 D mm) | | Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probe: 90 Days
Enclosure: 1 year |
Complete Kit TI-25M-UWM Underwater Ultrasonic Thickness Gages are supplied as a complete kit including gauge, underwater enclosure, underwater transducer, coupling fluid, instruction manual and calibration certificate in a foam lined hard plastic carrying case.
