The new DHT-2 Textile Moisture Meter instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material. 17 stored measurement scales for the following materials: wool ,rayon, cotton, linen, nylon, acrylic, polyester, 50% wool-50%cotton, 60% cotton-40% PES, 70%pac-30% wool, 67%pac-33% cotton, 70%PES-30% wool, 70%pes-30%rayon, 67% PES-33% cotton, 50% PES-50% cotton, 50%PES- 50% rayon, 50%pes-50%pac The DHT-2 Moisture Meter is supplied with probe holder, connection cable in carrying case, needle probes 414 & 418
Measuring principle: The moisture content is determined by measuring the electrical conductivity of the material, which always is proportional to the content of the moisture. Click Here for Conversion Tables
Photo Gallery
Features
- Instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material
- Easy to use for many applications
- 17 stored measurement scales
- Portable, battery-operated

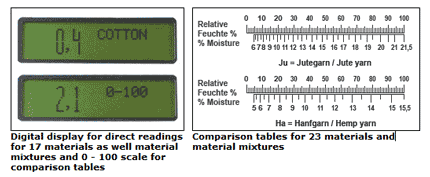

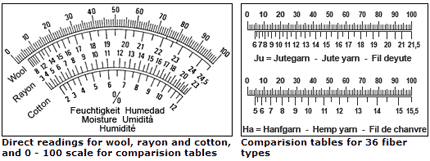

- 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
- High accuracy and repeatability
Optional Electrodes
418- 8-pin electrode 6 cm long for spools and bobbins
| |
414- 2-pin electrode 10 cm long for hanks
| |
412- 2-pins electrode 30 cm long for cotton and wool bales
| |
416- Roller electrode for fabrics
| |
422- Set of 2 different calibration electrodes with fixed moisture values. Needed for varification and re-adjusting of the instrument
| |
428- To measure room temperature °C and RH %. Useful parameters to check the balance condition of the materialunder testing. Length 170 mm, weight 60 g
| |
Specifications
| Accuracy | ±1% | | Accuracy of Reading | 0.1 | | Dimensions | 6.3" x 3.3" x 1.9" (160 x 83 x 30mm) | | Weight | 7 lbs (300 grams) | | Power Supply | 9V battery | | Auto Power Off | 2 minutes |
Complete Kit

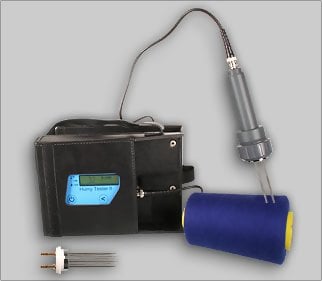

Moisture Meter supplied with probe holder, connection cable, probes 414 and 418 in carrying case.
