Motorized Test Stand with FORCE CONTROL

500lb Capacity

MX-500 Motorized Vertical Test Stand

MX-500 motorized test stands offer advanced force testing. The combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.

Speed control, quick return and emergency stop are standard features.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.

Features
line

One stand for both compression (push) and tension (pull) tests

Stroke: 13"

Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control

Maximum load 500 lb

Combination of ball screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.

Wide speed range: 0.2 – 7 in/min (optional speed ranges available)

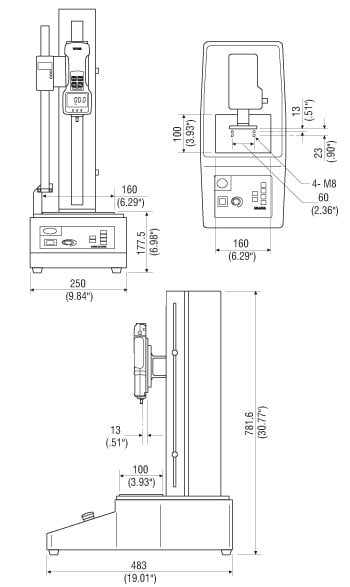

Dimensions
line

Related Products
line

ZP Digital Force Gauge with USB Output
Overload protection 200 % full scale

___________________________________________

Z2 Digital Force Gauge
Output signals (RS 232 C, analog and Mitutoyo Digimatic)

___________________________________________

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges
Full SPC and graphing capabilities Automates your data collection Provides a running log of all measurements along with a chart of the data as well as statistical information

___________________________________________

DB-1X - DB2-X Data Input Button
Send data to the PC spread sheet with the touch of a button Select different acquisition rates Zero the gauge

___________________________________________

LP-99 Lexan Safety Shield
Helps protect personnel from injury by containing debris during testing

___________________________________________

NIST CAL

Specifications
line

Capacity	500 lbs
Stroke	13"
Travel Rate	0.2 – 7 in/min
Dimensions	See Dimensions above
Compatible Gauges	DS2, Z2, ZP, ZPH and DPSH
Warranty	2 years
