ACT-220 Automatic Wire Crimp Pull Tester with Load Holding
产品货号
产品价格
现货询价，电话：010-67529703
产品规格
产品品牌
Abq Industrial
产品概述
产品详情
Description
Price:
Automatic Wire Crimp Tester with ELelectro-luminescent display, measures up to 220 lbf
±0.5% Accuracy
1,500 Data Memory
2 Year Warranty

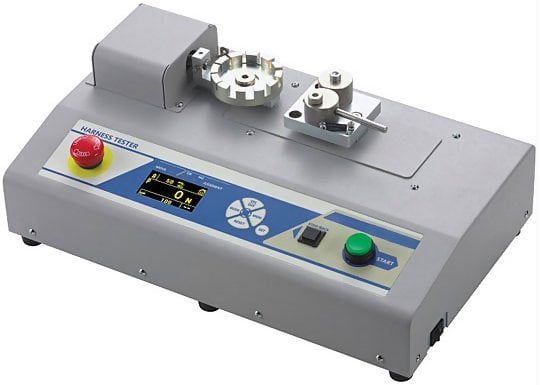

The ACT-220 Automatic Wire Crimp Tester is designed to measure the strength of wire crimps, up to 220 lbf (1000 N). Standard load-holding feature allows pulls to set a target load and holds it for a user set amount of time for non-destructive testing.
The tester conforms with UL 486A-B as well as other ASTM, MIL, ANSI/EIA, NASA, IEC and JIS crimp testing standards. See the specifications table for more details.
The wire terminal grip has 12 slots which accommodate wire diameters from 18 AWG to 1 AWG (1-8 mm OD). Smaller test fixtures are also available.
Simplify Your Wire Crimp Testing
Press the green button to automatically test a crimped on wire terminal. After the test is completed, the tester will automatically return to the starting position. The peak force is held on the display and pass fail LED indicators allow for easy GO/NO GO testing. Each reading saved into memory has a date and time stamp. Up to 1,500 results can be saved and recalled from memory. Test configuration is intuitive. Select units, destructive or non destructive testing, hold duration, hold value (non-destructive) and test speed. Save up to 26 individual wire crimp test profiles in the internal memory for quick and efficient testing of multiple sample types.
What’s Included?
The ACT-220 includes the ACT Logger data acquisition software. ACT Logger downloads data from the tester memory and/or captures peak data while testing via the USB output. All tester programming can be set from the software.
All ACT-220 (ACT-1000N) Automatic Wire Crimp Tester include a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge.
Photo Gallery
Video
Features
Destructive and nondestructive test modes
Force hold duration up to 999 seconds in 1 second increments
Color-coded LED indicators for Go/No Go testing
Selectable digital speeds 10/25/50/100 mm/min
Save up to 26 test configurations in memory
EL electro luminescent display is highly visible in the dark or bright sunlight
Time and date stamp
Selectable units: lbf, kgf, and N
1,500 data memory for recall or download (RS-232C output)
Kit includes, terminal grip, wire cam grip, ACT Logger data acquisition software, USB cable, calibration cert traceable to NIST
Many optional crimp attachments available
Specifications
Resolution
0.1 lbf, 1N, 0.1 kgf
Accuracy
±0.5% F.S. ±1 digit
Force Units
lbf, N, kgf (selectable)
Overload Rating
Approx. 150% F.S.
Speed Ranges
10/25/50/100 mm/min or 0.5, 1.0, 2.0, 4.0 in/min (Selectable)
Hold Duration
up to 999 seconds in 1 second increments
Stroke
Approx. 50mm
Sample Diameters
12 slots, 1 to 8mm
Sample Length
100mm (4") or more
Test Modes
BREAK (destructive)/KEEP (non-destructive) modes
Test Profiles
Saves up to 26 patterns (A to Z)
Internal Memory
1500 data
Outputs
USB/RS232C (for printer output)/Judgment signal (OK/NG)
Operating Conditions
0° to 40° Celsius, 20 to 80%RH
Standards
ACT-220 meets test conditions of wire crimp test standards. Review the details of the following standards: UL 486A-486B, ASTM B913, ANSI/EIA-364-38B, MIL-DTL-22520G, NASA-STD-8739.4
