Manual Wire Terminal Pull Tester
Capacity 220 lbs / 100 kg / 1000 N

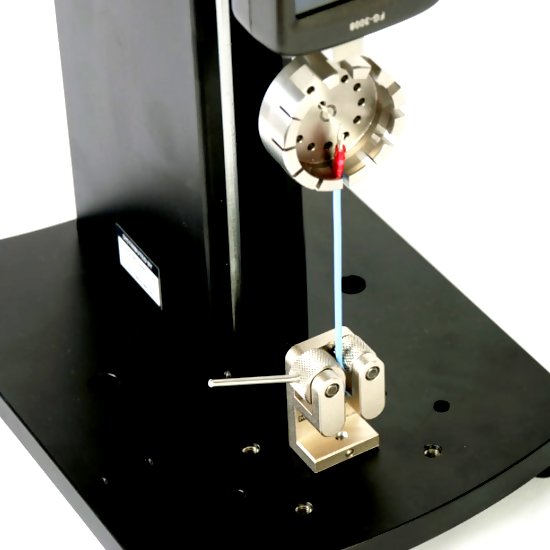

The WTT Wire Terminal Pull Tester precisely measures the pull off force of crimped on wire terminals up to 220 lbs / 100 kg. The system consists of a manual hand-wheel test stand, digital force gauge and wire gripping fixtures for wire diameters up to 0.24 inches / 6mm.
Photo Gallery
Features

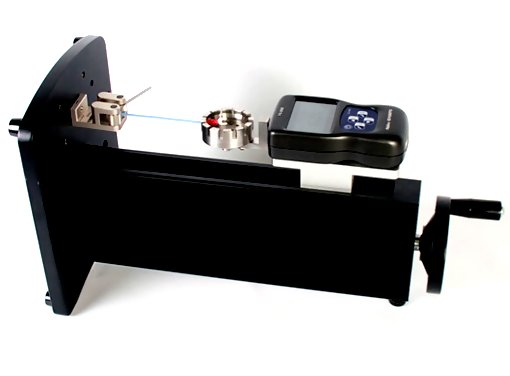

Vertical or Horizontal operation
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
500 reading memory
Supplied with Factory Calibration Certificate, NIST Traceable Cert is Optional
Includes Data Logging Software
USB and RS232 Output
User selectable measuring units (lbs / Kg / N)
Complete System
The WTT is sold as a complete test system that includes the following items
FG-3000 - Digital Force Gauge
FGS-250W - Manual Test Stand
G1002 - Wire Cam Grip
G1076-M6 - Wire Terminal Grip
Specifications
Capacity
WTT-100: 110 Lb / 50 kg / 500 N
WTT-200: 220 Lb / 100 Kg / 1000 N
Resolution
WTT-100: 0.1 Lb / 0.01 Kg / 0.1 N
WTT-200: 0.1 Lb / 0.1 Kg / 1 N
Accuracy
± 0.3% F.S.
Stroke
9" (230 mm) without attachments installed
Overload Capacity
150% of F.S. (LCD flashes beyond 110% of F.S.)
Display Update Rate
10 times/second
Memory
500 readings
Power
Internal Ni-MH rechargeable batterie, Universal Power adapter included
Battery Life
Approximately 16 hours continuous use per full charge
Outputs
USB, RS-232; High & Low Limit NPN’s
Operating Temperature
14 to 104°F (-10 to 40°C)
Dimensions
9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight
19 lbs / 8.6 Kg
Warranty
1 Year
