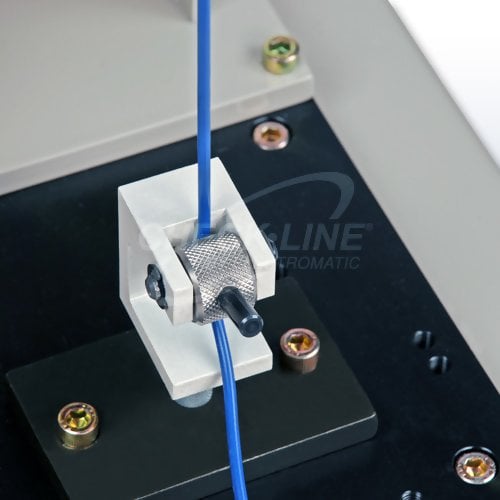

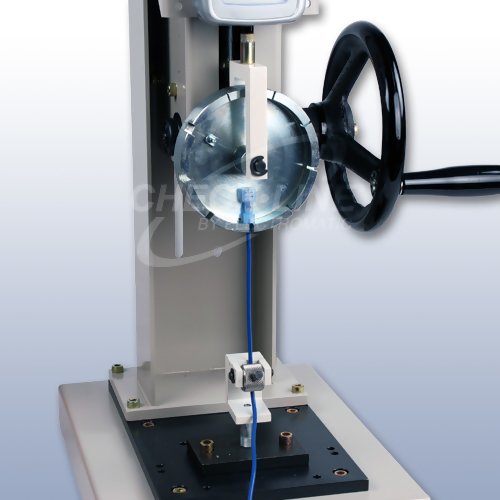

The Shimpo WTT-FGS Wire Terminal Tester is designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end. It is ideal for obtaining accurate, consistent results up to 110lbs

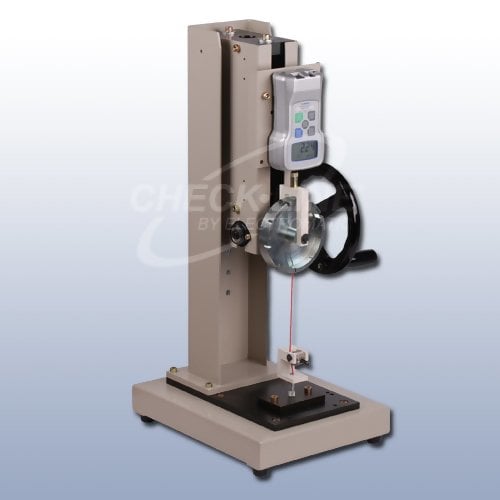

The WTT-FGS system is an easy to solution suitable for a vast majority of terminal testing applications. The system consists of the following:

• Test Stand: FGS-100H
• Force Gauge: FGV-100XY
• Wire terminal tester: FG-M6WTER100

Photo Gallery

Features

• Versatile bottom mounting plate accepts standard and custom-made attachments
• Precision gear movements
• Sturdy, all steel construction
• Constant Linear Motion

Specifications

Related Products

FGS-100H Manual Hand Wheel Operated Test Stand Versatile bottom mounting plate accepts standard and custom-made attachments

FGV-XY Digital Force Gauge with USB Output Accuracy of ±0.2% providing superb repeatability USB, RS-232 & Analog Outputs-- all included! 3 different outputs for data transfer provides maximum flexibility

FG-M6WTER100 Wire Terminal Test Fixture
