世联博研公司现货供应Abq Industrial品牌订货号为的Imada KV-11-S Micro Movement Test Stand产品

Price:

Imada KV-11-S Micro-Movement Hand Wheel Test Stand with Digital Distance Meter (Force gauge sold separately)

For compression tests only

Maximum Load 11 lbf (5 kgf)

The Imada KV-11-S Hand Wheel Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The standard model KV-11-S includes a highly accurate digital distance meter. Both models accept any force gauge with a maximum capacity of 11 lbf (5 kgf).

line
Features
line

For compression tests only
Reduced backlash and fine movement for highly precise measurements

line
Specifications
line

Capacity	11 lbf (5 kgf)
Stroke	2.75" (69.85 mm)
Travel Rate	0.4" (1 mm) per revolution of hand wheel
Dimensions	Refer to dimensions above
Compatible Gauges	ZT-Series and DS2
Warranty	2 years

line

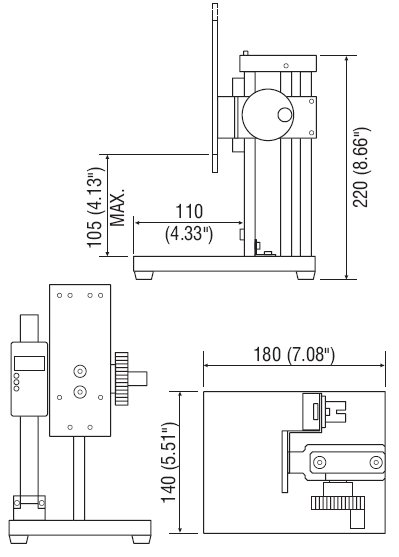

Dimensions
line

dimensions

line
Distance Meter Specifications
line

Display	Push button for inch/mm, zero set and on/off
Resolution	0.0005"/0.01 mm
Accuracy	0.1% of reading or 0.005"/0.1mm, whichever is greater

line
