The ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force. Use the ES30 with a MG series force gauge and grips to create a complete testing solution.

Upgradeable to a motorized test stand by installing a motor drive kit.

*Force Gauge and Grips Not Included

Features

• 200lb Capacity
• Precision hand wheel operation
• Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
• 3 Year Warranty
• Removable base plate with 25 #10-32 threaded holes for fixture mounting
• Upgradeable to a motorized test stand by installing a motor drive kit

Specifications

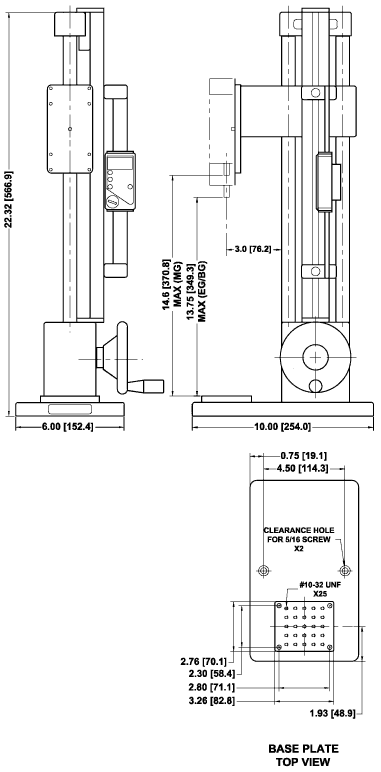

Dimensions
