High Precision Mechanical Force Gauge

25 Ranges up 100lbs / 50 Kg / 500 N

Intrinsically Safe for use in hazardous environments

Accuracy of ± 0.2%
23 Ranges Available

Rugged construction and excellent accuracy make these force gauges ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

line
Features
line

Ideal for push / pull measurements in all environments
Real Time force display with peak capture
Free manufacturer´s calibration report
Full set of accessories and carrying case included
Zero Tare Ring to zero the gauge in each position
Hand-held use or can be mounting a on test stand
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty

line

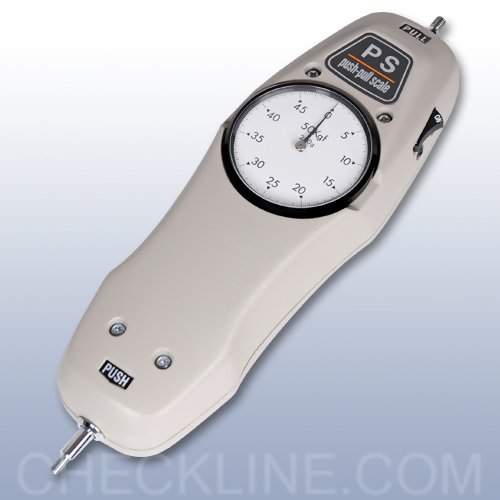

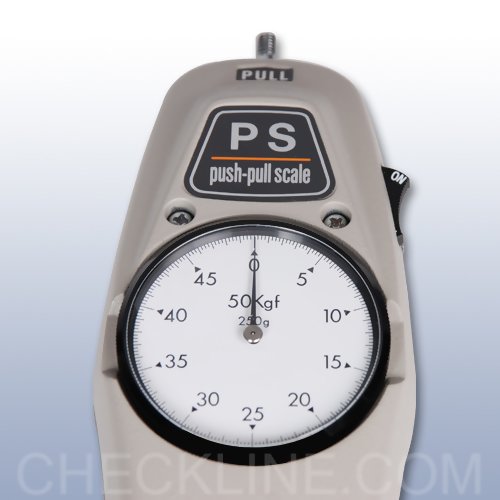

Photo Gallery
line

line
Force Ranges
line

Model	Capacity (resolution)
PS-2	2 lb (0.01 lb)
PS-5	5 lb (0.025 lb)
PS-10	10 lb (0.05 lb)
PS-20	20 lb (0.1 lb)
PS-30	30 lb (0.2 lb)
PS-50	50 lb (0.25 lb)
PS-100	100 lb (0.5 lb)
PS-1KG	1 kg (5 g)
PS-2KG	2 kg (10 g)
PS-3KG	3 kg (20 g)
PS-5KG	5 kg (25 g)
PS-10KG	10 kg (50 g)
PS-20KG	20 kg (100 g)
PS-30KG	30 kg (200 g)
PS-50KG	50 kg (250 g)
PS-10N	10 N (0.05 N)
PS-20N	20 N (0.1 N)
PS-30N	30 N (0.2 N)
PS-50N	50 N (0.25 N)
PS-100N	100 N (0.5 N)
PS-200N	200 N (1 N)
PS-300N	300 N (2 N)
PS-500N	500 N (2.5 N)

Displacement at full scale capacity is 10mm

line
Special Attachments
line

line

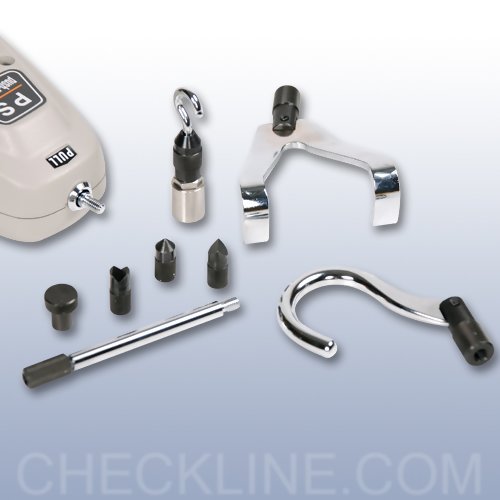

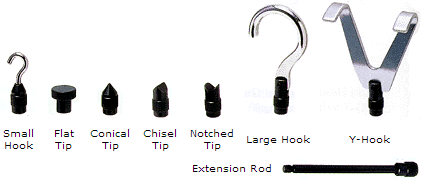

Standard Attachments
line

ABQ

line

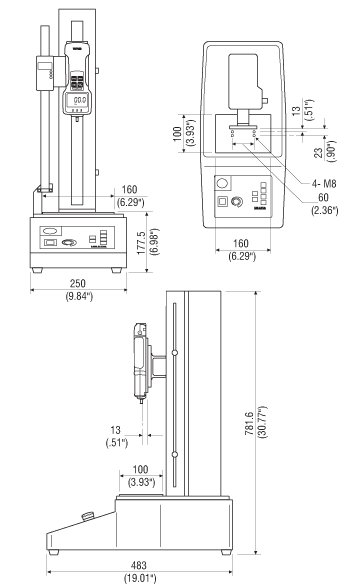

Dimensions
line

dimensions

line

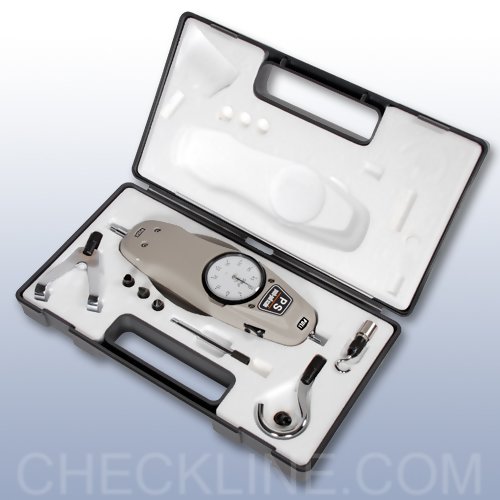

Complete Kit
line

The complete kit includes the gauge, five measuring tips including; flat head, cone, chisel notched, small hook, large hook,Y-hook and three inch extension rod and instruction manual -- all supplied in a fitted hard plastic carrying case.

complete kit

line
Downloads
line

Imada PS High Precision Mechanical Force Gauge - Dimensional Drawing
