Imada FB Economical Mechanical Force Gauge

25 Ranges up 100lbs / 50 Kg / 500 N

Intrinsically Safe for use in hazardous environments

Accuracy of ± 0.3%

Rugged construction and excellent accuracy make these force gauges ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

line
Features
line

Ideal for push / pull measuremnts in all envirements
Real Time force display with peak capture
Free manufacturer´s calibration report
Zero Tare Ring to zero the gauge in each position

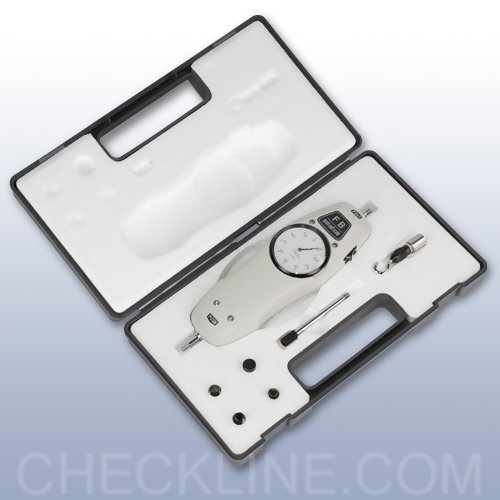

Full set of accessories and carrying case included
Hand-held use or can be mounting a on test stand
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty

line

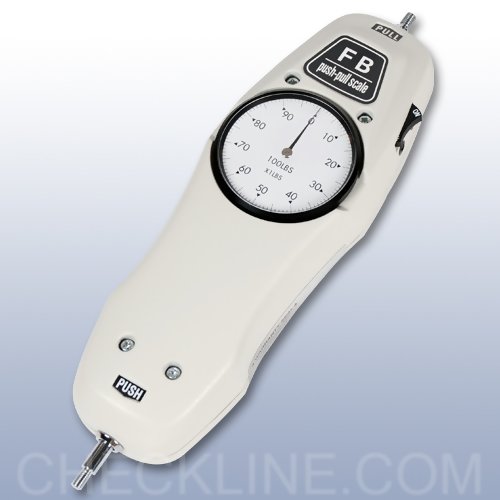

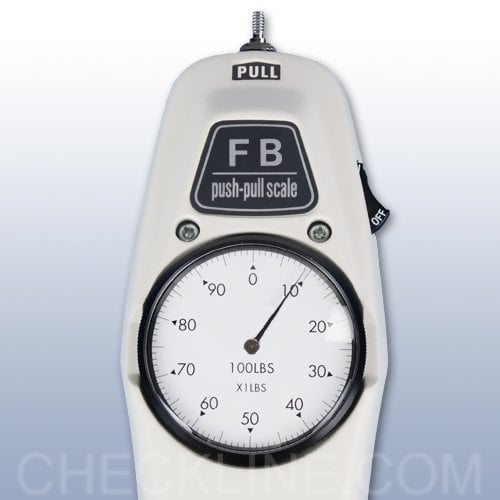

Photo Gallery
line

line
Force Ranges
line

Model	Capacity (resolution)
FB-2	2 lb (0.02 lb)
FB-5	5 lb (0.05 lb)
FB-10	10 lb (0.1 lb)
FB-20	20 lb (0.2 lb)
FB-30	30 lb (0.25 lb)
FB-50	50 lb (0.5 lb)
FB-100	100 lb (1 lb)
FB-150*	150 lb (1 lb)
FB-1KG	1 kg (10 g)
FB-2KG	2 kg (20 g)
FB-3KG	3 kg (25 g)
FB-5KG	5 kg (50 g)
FB-10KG	10 kg (100 g)
FB-20KG	20 kg (200 g)
FB-30KG	30 kg (250 g)
FB-50KG	50 kg (500 g)
FB-10N	10 N (0.1 N)
FB-20N	20 N (0.2 N)
FB-30N	30 N (0.25 N)
FB-50N	50 N (0.5 N)
FB-100N	100 N (1 N)
FB-200N	200 N (2 N)
FB-300N	300 N (2.5 N)
FB-500N	500 N (5 N)

Displacement at full scale capacity is 10mm
*FB-150 accuracy is 0.5% Full Scale

line

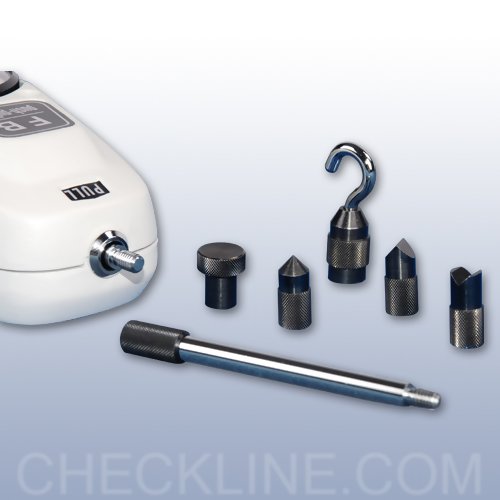

Special Attachments
line

line

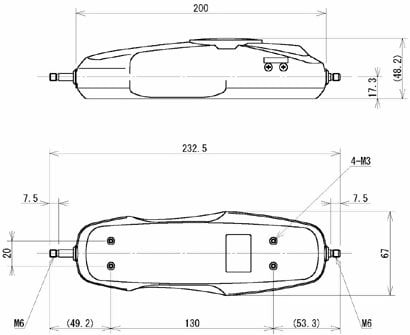

Dimensions
line

dimensions

line
Downloads
line

Imada FB Mechanical Force Gauge - Dimensional Drawing
