Mark-10 Series-2 Economical Digital Force Gauge
Measures Push and Pull Force
±0.5% accuracy
3 Year Warranty
Mark-10 Series-2 Economical Digital Force Gauge are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.
Features
- Calculates peak tension and compression values
- 3 selectable units of measurement
- Ultra-compact, ergonomic housing
- Configurable default measurement unit and mode
- 500 Hz sampling rate
- Large, backlit graphic display with auto-dimming
- Powered by 9V battery or available AC adapter
- Reversible housing for alternate load cell orientation
Force Ranges
| Model | Capacity | Resolution | | M2-2 | 2 lbF |
1 kgF |
10 N | 0.002 lbF |
0.001 kgF |
0.01 N | | M2-5 | 5 lbF |
2.5 kgF |
25 N | 0.005 lbF |
0.002 kgF |
0.02 N | | M2-10 | 10 lbF |
5 kgF |
50 N | 0.01 lbF |
0.005 kgF |
0.05 N | | M2-20 | 20 lbF |
10 kgF |
100 N | 0.02 lbF |
0.01 kgF |
0.2 N | | M2-50 | 50 lbF |
25 kgF |
250 N | 0.05 lbF |
0.02 kgF |
0.2 N | | M2-100 | 100 lbF |
50 kgF |
500 N | 0.1 lbF |
0.05 kgF |
0.5 N |

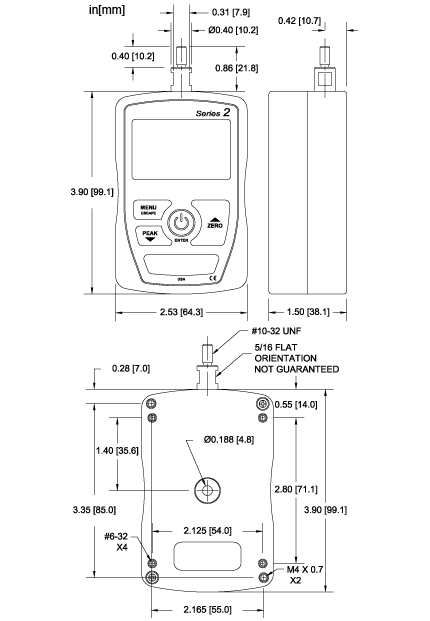

Dimensions

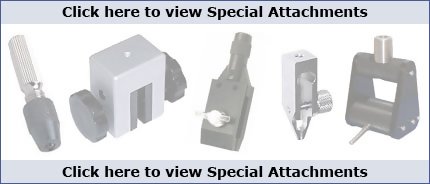

Special Attachments
Related Products
Complete Kit
The Series 2 is supplied with 9V battery, quick-start guide, resource CD, certificate of conformance. Carrying case, attachments, power adapter are SOLD SEPARATELY.
