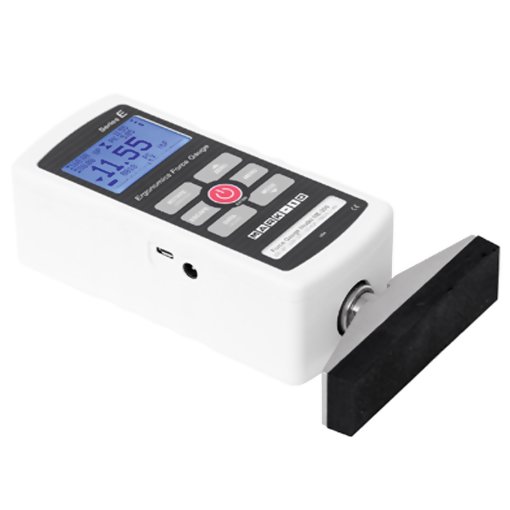

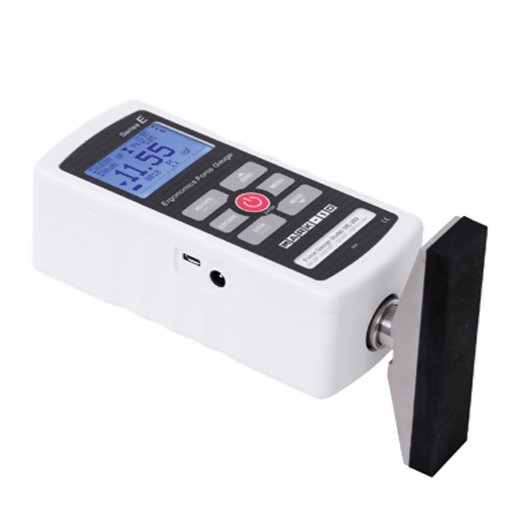

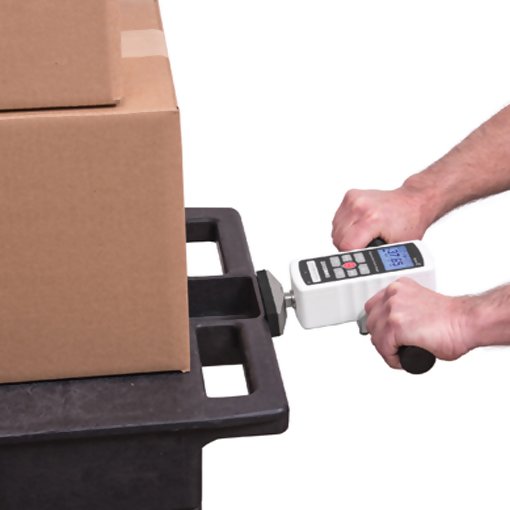

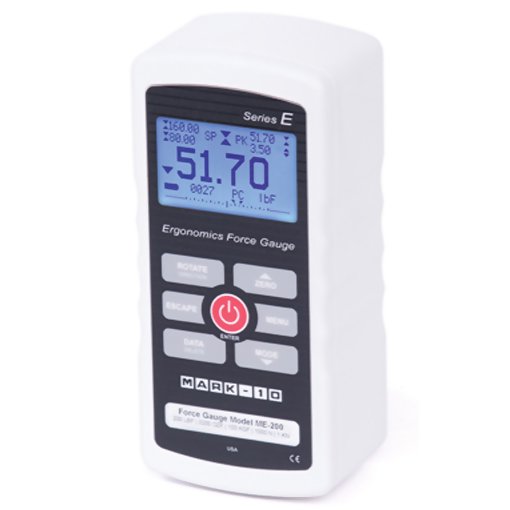

Mark-10 Series-E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs. Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
Photo Gallery
Features
- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)

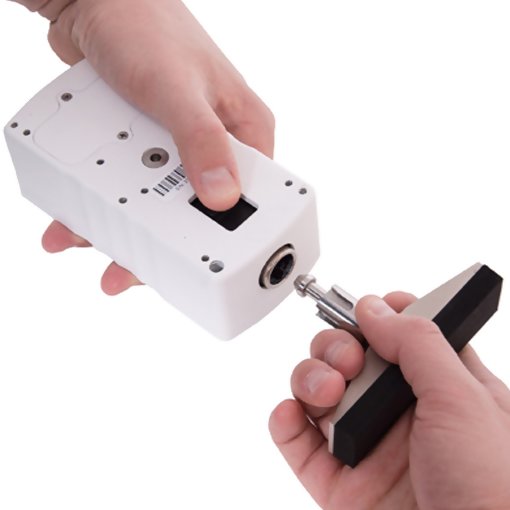

- Click-Lock™ accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
- Statistical calculations for saved data points
Ranges (Capacity / Resolution)
| Model | lbF | ozF | kgF | gF | N | kN |
|---|
| ME-100 | 100
0.002 | 1600
0.5 | 50
0.01 | 50000
10 | 500
0.1 | - | | ME-200 | 200
0.05 | 3200
1 | 100
0.02 | - | 1000
0.2 | 1
0.0002 | | ME-500 | 500
0.1 | 8000
2 | 250
0.2 | - | 2500
0.5 | 2.5
0.0005 |
Kit Contents
Mark-10 Series-E Ergonomics Force Gauges Professional EKE Kits: Mark-10 ME Digital Force Gage, E1002 Square Padded Attachment, E1003 Rectangular Padded Attachment, E1004 Curved Padded Attachment, E1005 Circular Padded Attachment, E1006 Hook, E1007 Chain/Hook Assembly, E1008 Single Handle Grip, E1009 Double Handle Grip, E1010 Pistol Grip and E1001 Large Carrying Case. | |
* Kits include a force gauge with 110V AC adapter.
| EKE-100-1 | Advanced ergonomics kit, 100 lbF / 500 N | | EKE-200-1 | Advanced ergonomics kit, 200 lbF / 1,000 N | | EKE-500-1 | Advanced ergonomics kit, 500 lbF / 2,500 N | | EKE-100-2 | Professional ergonomics kit, 100 lbF / 500 N | | EKE-200-2 | Professional ergonomics kit, 200 lbF / 1,000 N | | EKE-500-2 | Professional ergonomics kit, 500 lbF / 2,500 N |
Accessories
| Model | Description | Advanced Kit* | Professional Kit* | | ME-100
ME-200
ME-500 | ME-100
ME-200

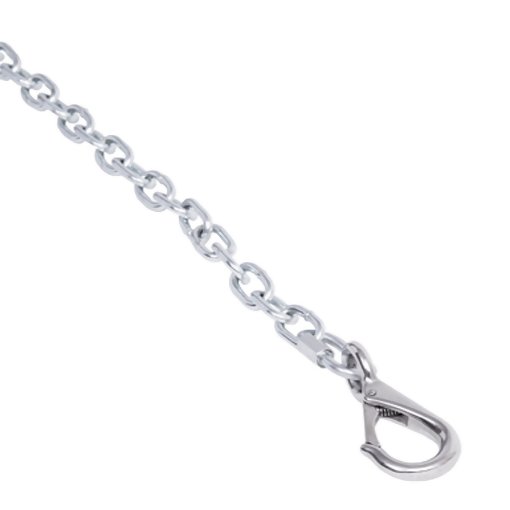

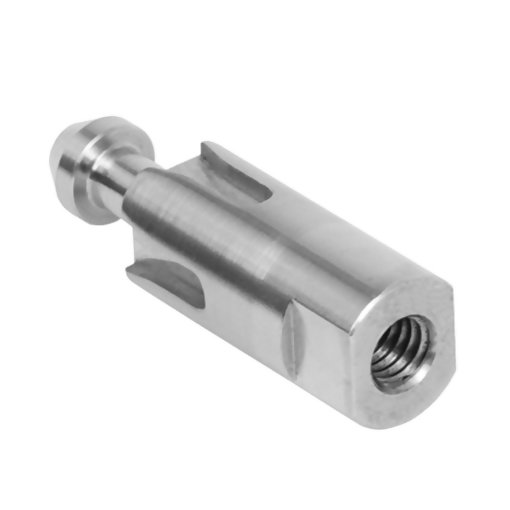

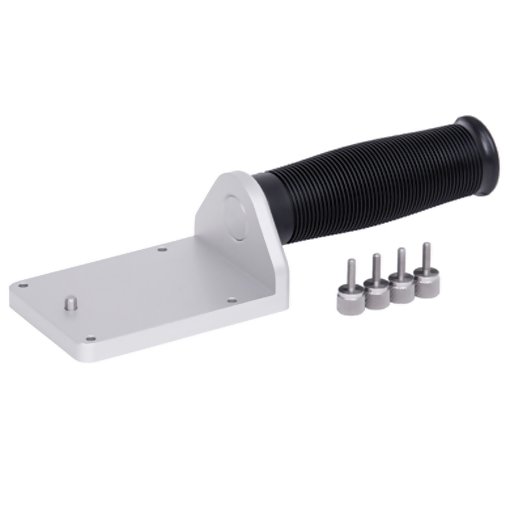

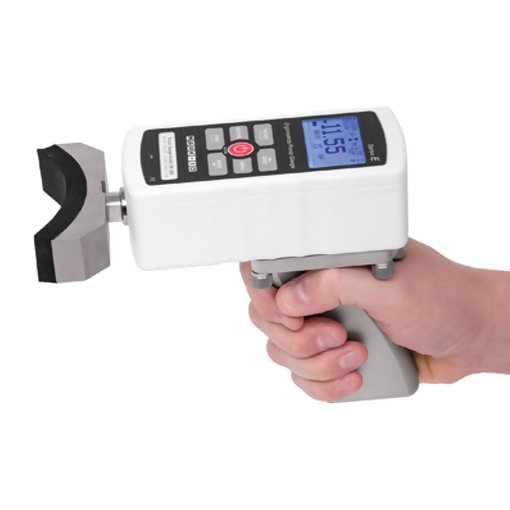

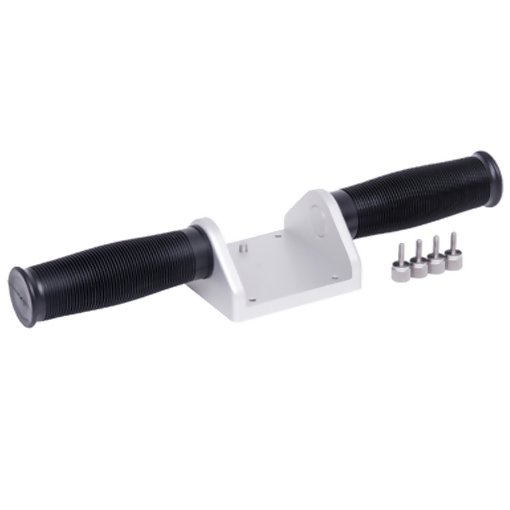

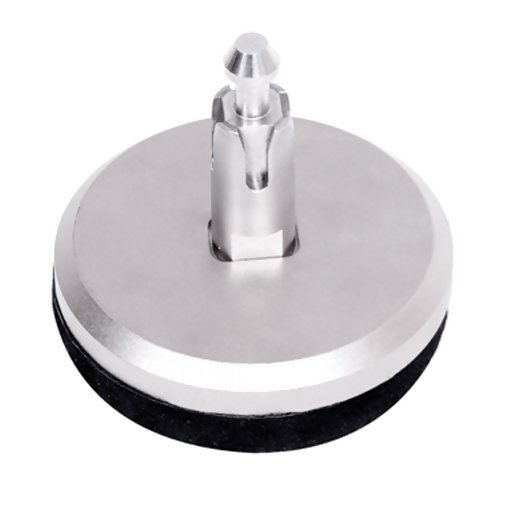

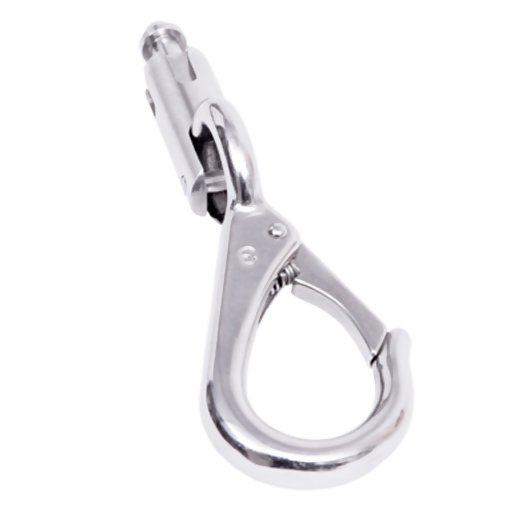

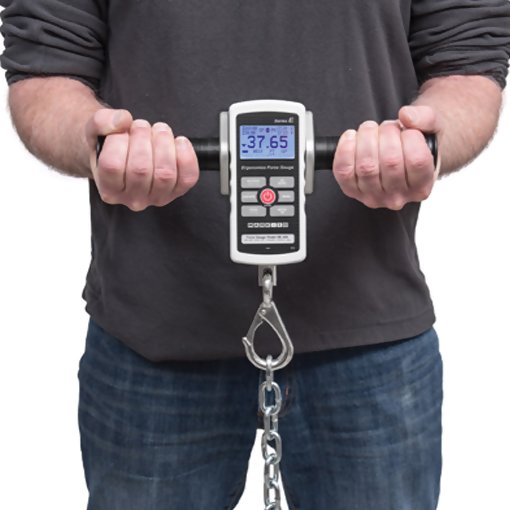

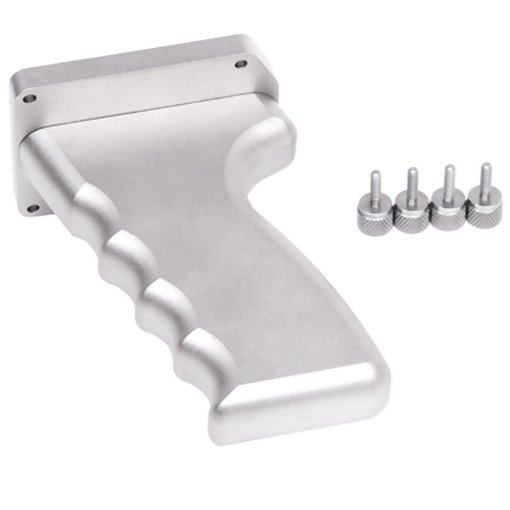

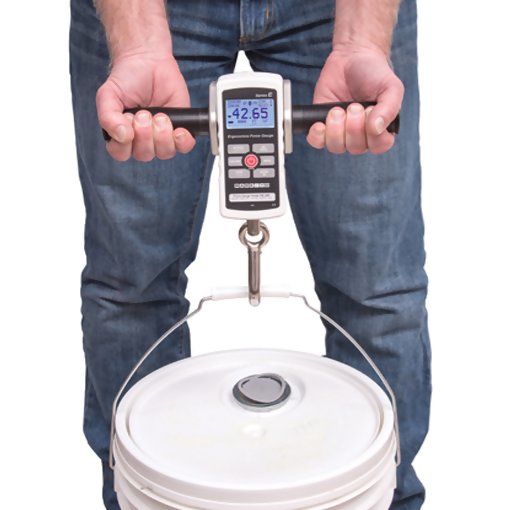

ME-500 | | | | E1002 | Padded attachment, square | | | | E1003 | Padded attachment, rectangular | | | | E1004 | Padded attachment, curved | | | | E1005 | Padded attachment, circular | | | | E1006 | Hook | | | | E1007 | Chain / hook assembly | | | | E1008 | Single handle grip | | | | E1009 | Double handle grip | | | | E1010 | Pistol grip | | | | E1011 | Grip adapter | | | | E1012 | Looped cable** | | | | E1013 | Myometer kit*** | | | | E1000 | Carrying case, small | | | | E1001 | Carrying case, large | | |
Dimensions
Specifications
| Accuracy | ±0.2% of Full Scale | | Sampling rate | 7,000 Hz | | Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | | Battery Life | Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use | | Measurement units | lbF, ozF, gF, kgF, N, kN (depending on model) | | USB Output | Configurable up to 115,200 baud | | Safe overload | 200% of full scale (display shows "OVER" at 110% and above) | | Weight | 1.7 lb (0.8 kg) | | Included items | Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data | | Warranty | 3 years |
Downloads
Buy Now
|

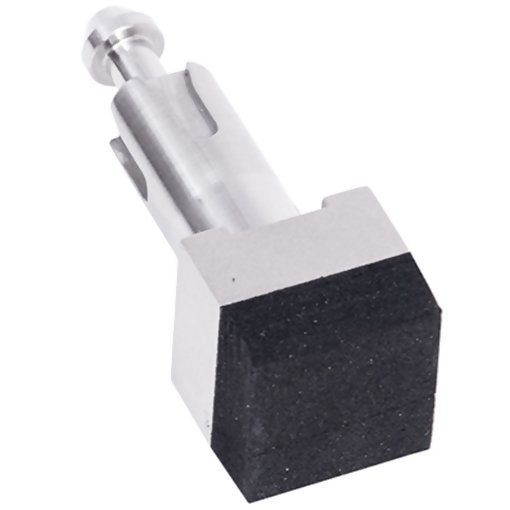

![Square Pad E1002 - Pad dimensions: 1.0 x 1.0 x 0.5 in. [25 x 25 x 13 mm]](https://www.abqindustrial.net/store/images/products/Series-E/e1002-padded-attachment-square-g_thumb.jpg "Square Pad E1002 - Pad dimensions: 1.0 x 1.0 x 0.5 in. [25 x 25 x 13 mm]")

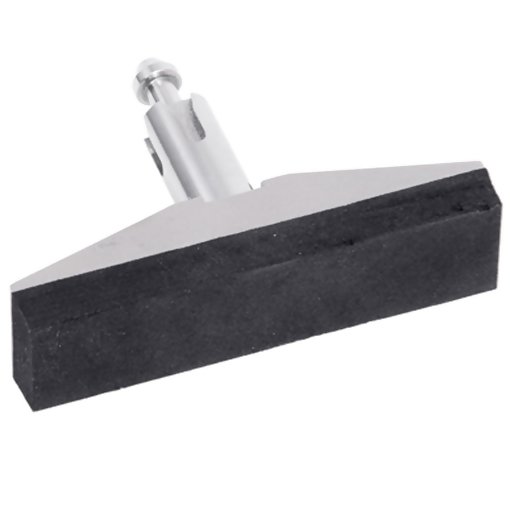

![Rectangular Pad E1003 - Pad dimensions: 4.0 x 1.0 x 0.5 in. [102 x 25 x 13 mm]](https://www.abqindustrial.net/store/images/products/Series-E/e1003-padded-attachment-rectangular-g_thumb.jpg "Rectangular Pad E1003 - Pad dimensions: 4.0 x 1.0 x 0.5 in. [102 x 25 x 13 mm]")

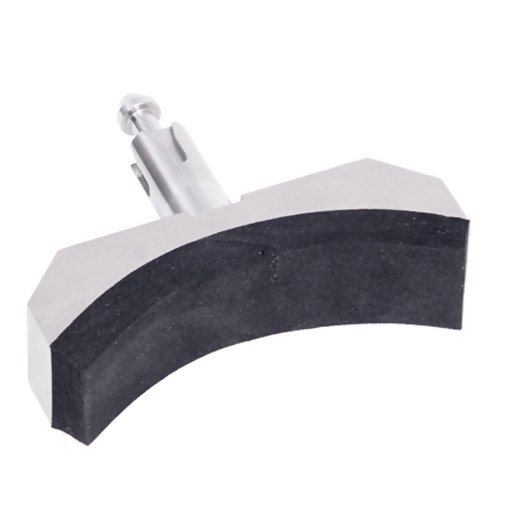

![Curved Pad E1004 - Pad dimensions: 1.0 in. [25 mm] deep / 3.2 in. [81 mm] radius / 0.5 in. [13 mm] thick](https://www.abqindustrial.net/store/images/products/Series-E/e1004-padded-attachment-curved-g_thumb.jpg "Curved Pad E1004 - Pad dimensions: 1.0 in. [25 mm] deep / 3.2 in. [81 mm] radius / 0.5 in. [13 mm] thick")
![Circular Pad E1005 - Pad dimensions: 3.0 in. [76 mm] dia., 0.5 in. [13 mm] thick](https://www.abqindustrial.net/store/images/products/Series-E/e1005-padded-attachment-circular-g_thumb.jpg "Circular Pad E1005 - Pad dimensions: 3.0 in. [76 mm] dia., 0.5 in. [13 mm] thick")
