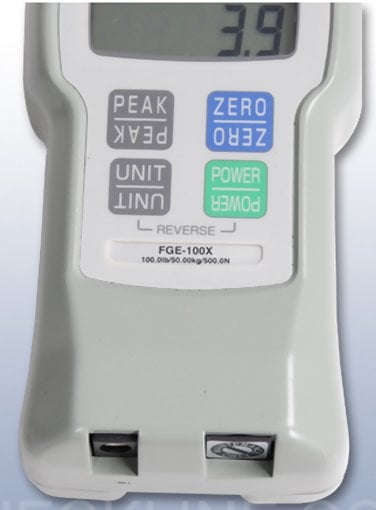

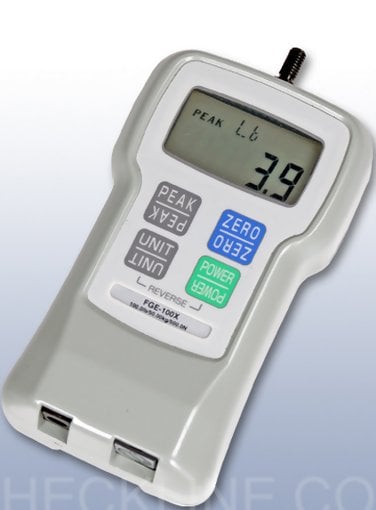

Shimpo FGE-XY Hand-held Digital Force Gauge with 180° reversible display & dual labeled keypad for both push, pull applications. The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement. Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 100 lb ranges providing a large offering for various testing requirements. Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
Features
- Display "real-time" or "peak" force
- Accuracy ± 0.2%
- 200% overload protection
- User-selected units of Pounds, Kilograms or Newtons
- 1 Year Warranty
- Display can be reversed for inverted use
- Includes Traceable Calibration Certificate
- CE Certified
- ROHS Compliant
Photo Gallery
Force Ranges
| Model | Capacity | Resolution |
|---|
| FGE-0.5XY | 8.00 oz
200.0 g
2.000 N | 0.01 oz
0.1 g
0.001 N | | FGE-1XY | 16.00 oz
500.0 g
5.000 N | 0.01 oz
0.1 g
0.001 N | | FGE-2XY | 2.000 lb
1000 g
10.00 N | 0.001 lb
1 g
0.01 N | | FGE-5XY | 5.000 lb
2.000 Kg
20.00 N | 0.001 lb
0.001 kg
0.01 N | | FGE-10XY | 10.00 lb
5.000 Kg
50.00 N | 0.01 lb
0.001 kg
0.01 N | | FGE-20XY | 20.00 lb
10.00 Kg
100.0 N | 0.01 lb
0.01 kg
0.1 N | | FGE-50XY | 50.00 lb
20.00 Kg
200.0 N | 0.01 lb
0.01 kg
0.1 N | | FGE-100XY | 100.0 lb
50.00 Kg
500.0 N | 0.1 lb
0.01 kg
0.1 N | | FGE-200XY | 200.0 lb
100.0 Kg
1000 N | 0.1lb
0.01 kg
1 N |
Dimensions
Note:
FGE-0.5XY & FGE-1XY - Shaft thread is M4
FGE-2XY & Over - Shaft thread is M6
Specifications
| Accuracy | ±0.2% full scale | | Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension | | Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec | | Sampling Rate | 1000 times per second | | Overload Protection | 200% of full scale | | Power | Rechargeable Ni-MH battery or AC through adapter/charger | | Auto Power Shut-Off | Yes (not active if adapter/charge is in use) | | Battery Life | 12 hours (when fully charged) | | Recharge Time | Approximately 18 hours when fully discharged | | Dimensions | 5.8" L x 3.0" W x 1.5" H (147 mm x 75 mm x 38 mm) | | Weight | 1 lb (450 g); FGE-200XY Approx. 1.1 lb (500 g) | | Approvals | CE and ROHS certified | | Warranty | 2 Years |

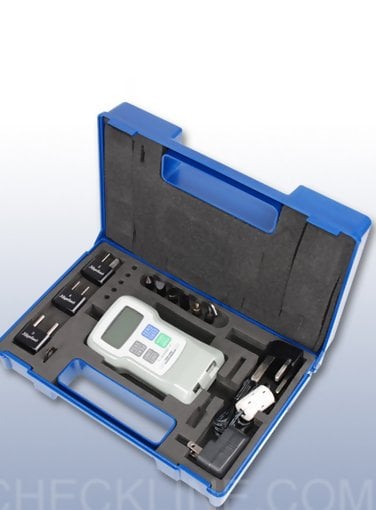

Complete Kit

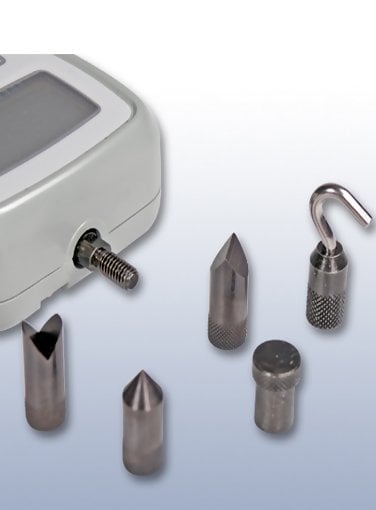

Includes Force Gauge, Universal 100-240V AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head & extension rod in a foam fitted carrying casea.
