High Capacity Force Test System
1000 lb / 500 Kg / 5000 N Capacity
Includes Gauge and Test Stand (FGV-1000HXY + FGS-1000H)
Capacity: 1000lbs The Imada FTS-HD High Capacity Force Test System is a high capacity force test system engineered for precise & repeatable measurements of push or pull forces up to 1000lbs. A smooth operating turn-wheel provides a precise 0.1" travel per revolution. The FTS-HD heavy duty construction provides repeatable and reliable testing for many years. The FTS-HD features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter. The FTS-HD Force Test System includes the FGV-1000HX Digital Force Gauge and FGS-1000H Mechanical Hand-Wheel Test Stand. The system is designed for precise, accurate measurements.
Features
- 1000 lb / 500 kg / 5000 N Capacity
- Accuracy ± 0.2%
- 200% overload protection
- Measures both compression and tension forces
- 200% overload protection
- Heavy-duty load sensor
- User-selected units of Pounds, Kilograms or Newtons
- Measures both compression and tension forces
- Removable hanger
- 1 Year Warranty
- Includes NIST Calibration Certificate

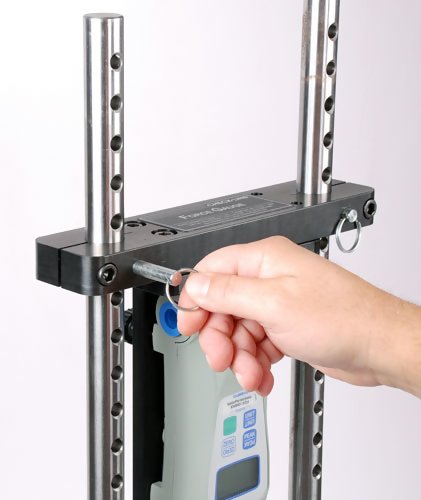

Photo Gallery

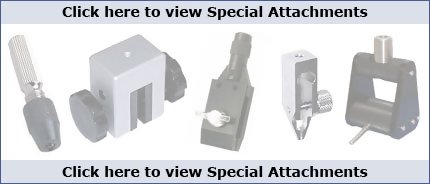

Special Attachments
Specifications
Accuracy | ±0.2% full scale | Resolution | 0.1 lb, 0.1 Kg, 1 N | Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension | Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec | Sampling Rate | 1000 times per second | Overload Protection | 150% of full scale | Power | Rechargeable Ni-Cad battery or AC through adapter/charger | Auto Power Shut-Off | Yes (not active if adapter/charge is in use) | Battery Life | 12 hours (when fully charged) | Recharge Time | Approximately 18 hours when fully discharged | Dimensions | 8.43" L x 3.23" W x 2.15" H (214 mm x 82 mm x 54.5 mm) | Weight | 78 lb (34 Kg) | Approvals | CE approved | Outputs | RS232C & Analog Output ±1 VDC (through a 12 bit D/A converter) | Overload Output | One NPN OC transistor for tension, one NPN OC transistor for compression | Warranty | 1 Year |
