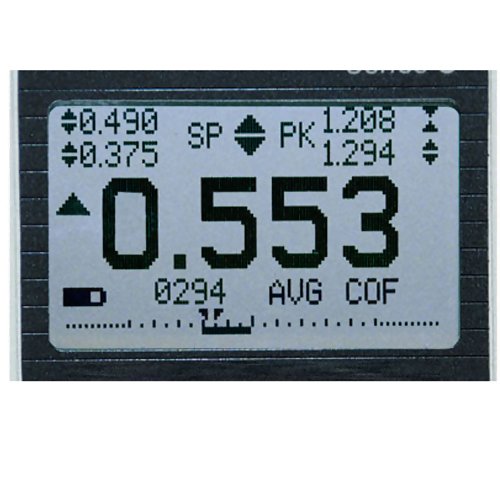

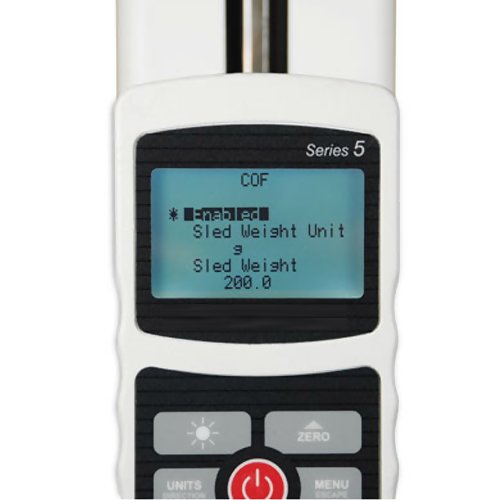

The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

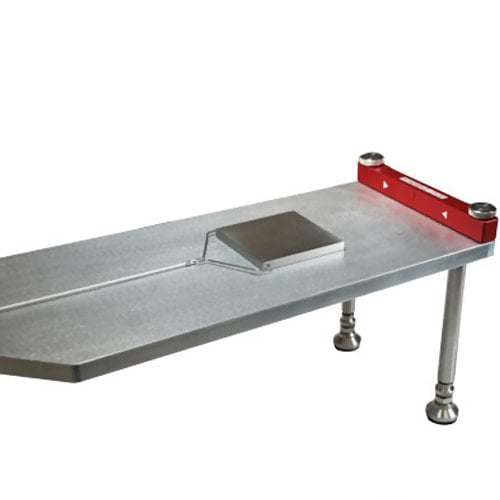

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge and ESM301motorized test stand.

Features

• Table surface material: 6061 T6 aluminum
• Sled material: 303 SS
• Maximum sled travel: 10.5 in (265 mm)

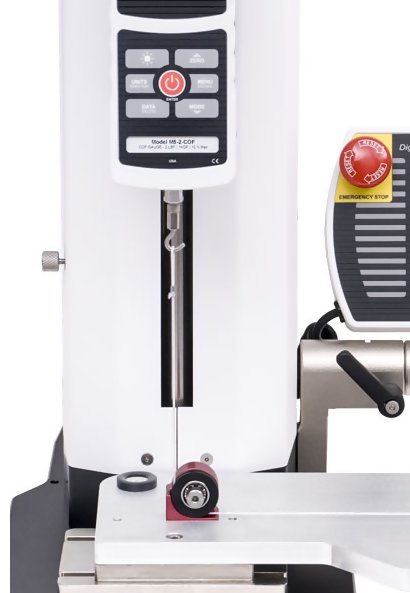

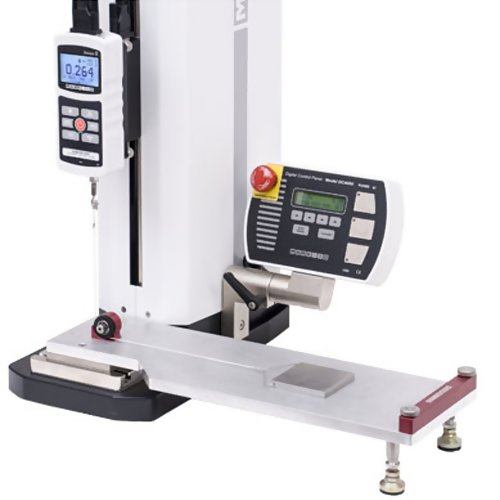

• Mounts directly to the ESM301 motorized test stand

Photo Gallery

Related Products

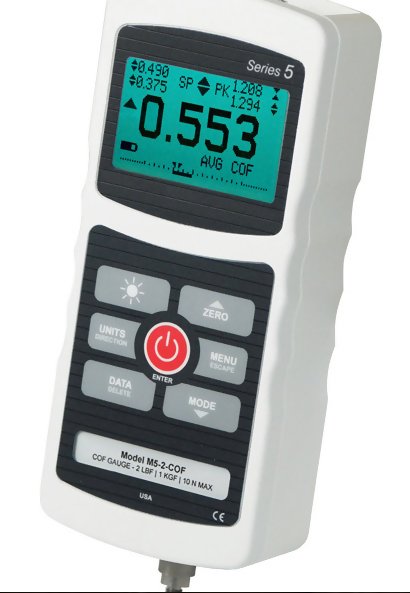

M5-2-COF Coefficient of Friction Gauge Calculates static and kinetic coefficients of friction

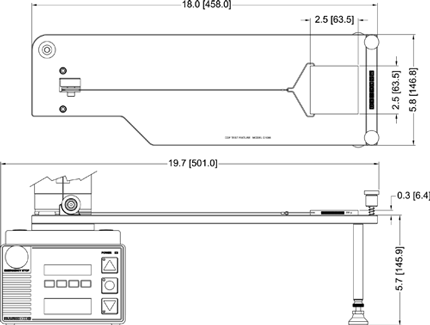

Dimensions
