世联博研公司现货供应Abq Industrial品牌订货号为的Imada FTS-X Force Test System产品

Price:

Imada FTS-X Force Test System with USB Data Output

Available in 5 Ranges up to 110 lbs.

Includes Gauge and Test Stand

The Imada FTS-X Force Test System is a complete Force Test System designed for precision measurement of push / pull force on a wide variety of applications. FTS-X offers USB data output and along with a complete software package to record and analyze your test data.

line
Features
line

1000 Hz Sample Rate captures true peak values even those occurring over very short time intervals
Accuracy of ±0.2% providing superb repeatability
USB, RS-232 & Analog Outputs-- all included! 3 different outputs for data transfer provides maximum flexibility
200% Overload Capacity minimizes the likelihood of costly repairs
Rugged Die Cast Aluminum Housing & Rugged Construction provides exceptional durability even in the toughest field applications
Reversible Display optimized for use as both a handheld gauge or mount upside down on a test stand
Versatile bottom mounting plate accepts standard and custom-made attachments
Precision gear movements
Selectable Auto-Shut Off prolongs battery life, while allowing constant use when powered via supplied AC-adapter
Small Size Ergonomic design provides comfort for hand held testing
Automatic Calculation & Display of Statistics provides immediate results and analysis of your force testing
3 Memory Modes optimize data storage for any application transferring data to PC/Laptop when convenient
Built In User-Set Hi-Lo Alarm Limits perform quick and easy ‘Go-No Go’ testing with visual LCD indicator when "out of tolerance"
Includes calibration certificate
Constant Linear Motion
Sturdy, all steel construction

line

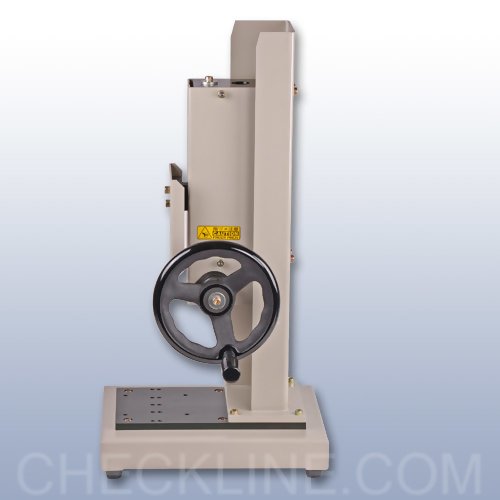

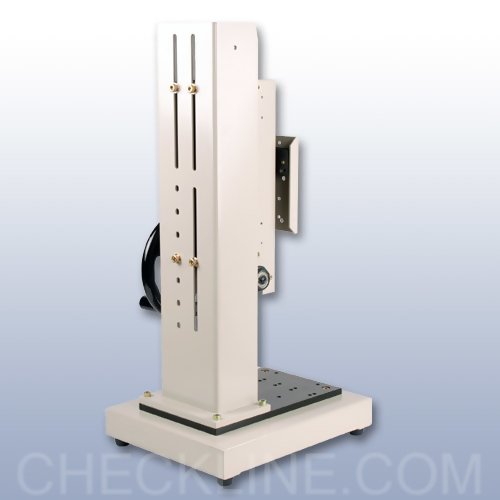

Photo Gallery
line

line
Force Ranges
line

Model	Capacity	Resolution
FTS-5X	5 lb 20 N 2 kg	0.001 lb 0.01 N 0.001 kg
FTS-10X	10 lb 50 N 5 kg	0.01 lb 0.01 N 0.001 kg
FTS-20X	20 lb 100 N 10 kg	0.01 lb 0.1 N 0.01 kg
FTS-50X	50 lb 200 N 20 kg	0.01 lb 0.1 N 0.01 kg
FTS-100X	100 lb 500 N 50 kg	0.1 lb 0.1 N 0.01 kg

line
Standard Attachments
line

line
Special Attachments
line

line
Dimensions
line

dimensions

line
Specifications
line

Capacity	110 lbs (50 kg)
Stroke	5.9" (150 mm)
Travel Rate	3 mm/wheel turn (approximately)
Dimensions	Refer to dimensions above
Measuring Modes	Realtime, Compression Peak, Tension Peak
Display Update Rate	User Selectable: 1, 2, 3, 5, 10, 20 times per second
Sampling Rate	1000 times per second (1000Hz/1KHz)
Accuracy	± 0.2% F.S.
Temperature Drift	Gain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function.
Display	Main display: 4-digits 12mm high, Reversible Units display: 3-digits 7mm high Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold)
Overload	200% of Full Scale
Tracking	User Selectable (ON/OFF)
USB Output	Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output	Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output	± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output	Open-collector output (Max DC30V/5mA).
Power	Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging.
Operating Time	Approximately 8 hours after a full charge. Charging Time: 16 Hours Max.
Auto Power Off	Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.
Memory function	Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation)
Comparator function	User Selectable: HI and LO
Temperature range	0 ~ 40° C (-32 ~ 104° F)
Humidity range	35 ~ 85% RH
Dimensions	147mm (L)x 75mm (W) x 38mm(H)
Weight	Approx. 34 lbs
Accessories (Included)	AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
Application Software	Application software (USB version): Available at www.shimpoinst.com / software for free.
Warranty	1 year
