Shimpo FGE Hand-Held Digital Force Gage
Accuracy ± 0.2%
8 Ranges up to 100lbs
Measure force in lbs, Kgs or N
Reversible display
FGE Standard Force Gauge
8 Ranges up to 100lbs The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of ± 0.2%.
They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use. Optional Handle for FGE / FGV Force Gauge. FG-HANDLE
Features
- Includes NIST Calibration Certificate
- Accuracy ± 0.2%
- User-selected units of Pounds, Kilograms or Newtons
- Display can be reversed for inverted use
- Display "real-time" or "peak" force
- 200% overload protection
- 1 Year Warranty
Photo Gallery
Force Ranges
| Model | Capacity | Resolution | FGE-0.5X
| 8.00 oz
200.0 g
2.000 N | 0.01 oz
0.1 g
0.001 N | FGE-1X
| 16.00 oz
500.0 g
5.000 N | 0.01 oz
0.1 g
0.001 N | FGE-2X
| 2.000 lb
1000 g
10.00 N | 0.001 lb
1 g
0.01 N | FGE-5X
| 5.000 lb
2.000 Kg
20.00 N | 0.001 lb
0.001 kg
0.01 N | FGE-10X
| 10.00 lb
5.000 Kg
50.00 N | 0.01 lb
0.001 kg
0.01 N | FGE-20X
| 20.00 lb
10.00 Kg
100.0 N | 0.01 lb
0.01 kg
0.1 N | FGE-50X
| 50.00 lb
20.00 Kg
200.0 N | 0.01 lb
0.01 kg
0.1 N | FGE-100X
| 100.0 lb
50.00 Kg
500.0 N | 0.1 lb
0.01 kg
0.1 N |

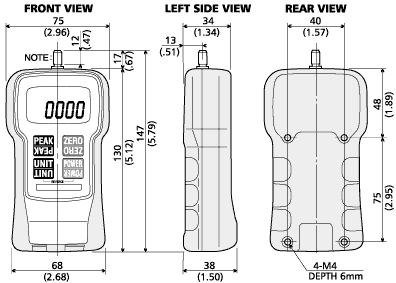

Dimensions
Note:
FGE / FGV-0.5X & FGE / FGV-1X - Shaft thread is M4
FGE / FGV-2X & Over - Shaft thread is M6
Specifications
| Accuracy | ±0.2% full scale | | Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension | | Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec | | Sampling Rate | 1000 times per second | | Overload Protection | 200% of full scale | | Power | Rechargeable Ni-Cad battery or AC through adapter/charger | | Auto Power Shut-Off | Yes (not active if adapter/charge is in use) | | Battery Life | 12 hours (when fully charged) | | Recharge Time | Approximately 18 hours when fully discharged | | Dimensions | 5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm) | | Weight | 1 lb (450 g) | | Approvals | CE approved | | Warranty | 1 Year |
Related Products
MESURgauge
Mesurgauge Load & Travel Analysis Software - Sends data from a force or torque gauge and travel display to a PC for further analysis
| |
Complete Kit
Includes Force Gauge, AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head, extension rod, RS232 CABLE & Toriemon Software (FGV Only) in a foam fitted carrying case

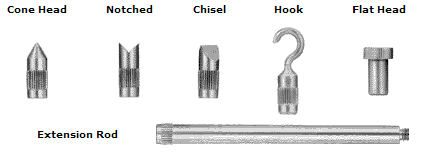

Standard Attachments

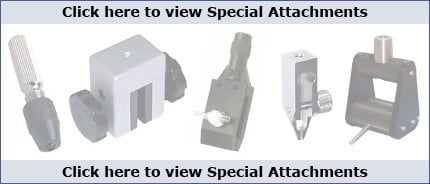

Special Attachments
