Flash Range: 30 - 300,000 FPM (5000Hz, max)
Flash Brightness: up to 3000 Lux (@ 6000 FPM) Designed for maximum performance, portability and ease of use, the DS-2000LED-OT is a hand-held battery powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market. Produces up to 3000 Lux! The DS-2000LED-OT can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard AA-batteries . Keypad controls adjust flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more. Supplied in a high-impact plastic with rubber protective sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, hi-speed motion analysis for speakers or ink-jet printing and more
Photo Gallery
Features
- Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
- Lifetime LEDs do not wear-out or need replacement
- NIST-Traceable Calibration Certificate provided
- Three (3) AA-Batteries provide six hours of continuous use operation
- Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 12")
- Intuitive controls allow user to quickly adjust flash rate and shift phase
- External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT
- User-selected units of Hz or FPM (Flashes Per Minute)
- 2-Year warranty
- IP 65 rated housing provides protection from water jets

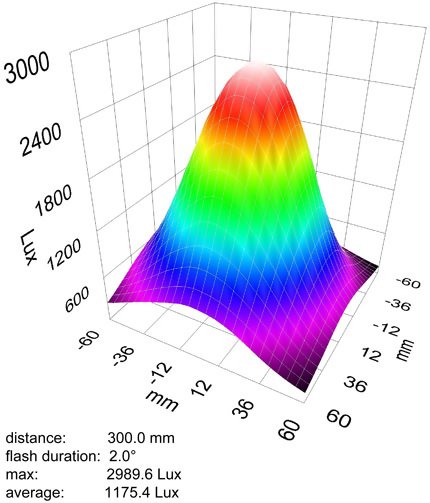

Light Output (LUX) vs Distance
Specifications
| Frequency Range | 30 - 300,000 FPM (0.5 - 5000Hz) | | Flash Duration | Adjustable (1 usec up to 8522 usec) | | Accuracy | ± 0.02% ± 500ns | | Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM 1000+ | | Brightness | 3000 Lux @ 6000 FPM / 30cm (12 inch) | | Protection Class | IP65 (Protection from Dust and Water Jets) | | Display | LCD, multiple lines | | Certification | CE (as per EU norms) | | Flash Color | Approx. 6.500 K | | Power Supply | 3x AA size batteries or 3x NiMH rechargeable batteries | | Housing Material | Aluminum / ABS Heavy duty design | | Dimensions | 191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch | | Weight Approx | 400g (including batteries) | | Temperature Range | 0° - 45° C / 32° - 113° F | | Battery Life | NiMH: approx 11h at 6.000 FPM
Disposable: approx 6 h at 6.000 FPM | | Warranty | 2 Years | | Trigger Input | 3 - 32 V, NPN + PNP
Low Level: < 1 V
Principle: Optocoupler, voltage-free | | Trigger Output | Level: max. NPR, max 32V
Pulse Length: Adjustable
Maximum current: 50mA
Reverse voltage protection: Yes
Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated | | Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 |

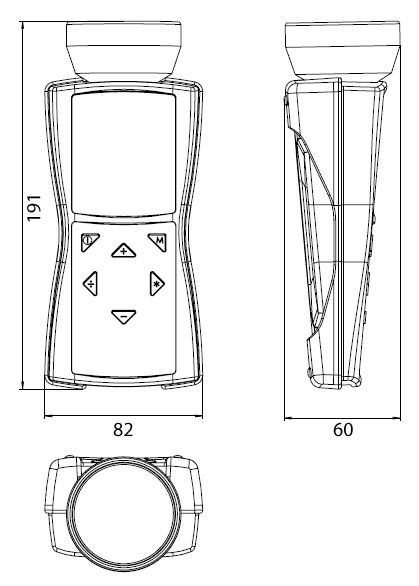

Dimensions
Complete Kit
DS-2000LED-OT Strobe is supplied in foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), connector for external trigger signal and 3 meter/10ft. trigger cable, Traceable Calibration Certificate and Operating Instruction Manual
