The DS-2000LED-UV is a battery powered hand-held LED blacklight stroboscope designed for inspecting UV ink on labels, security tags, watermarks and more
7 High-Powered LEDs produce peak brightness of 3000 Lux
Flash range of 30 - 300,000 fpm (0.5-5000 Hz)
IP65-rated housing is extremely water resistant
UV LED Stroboscope with external trigger input/output The DS-2000LED-UV is a battery powered hand-held Blacklight LED stroboscope designed for inspecting UV ink on labels, security tags, watermarks and more. Seven state-of-the-art, super-bright UV LEDs mounted in a precision-machined aluminum head with optimized optics, provide the superior light output.

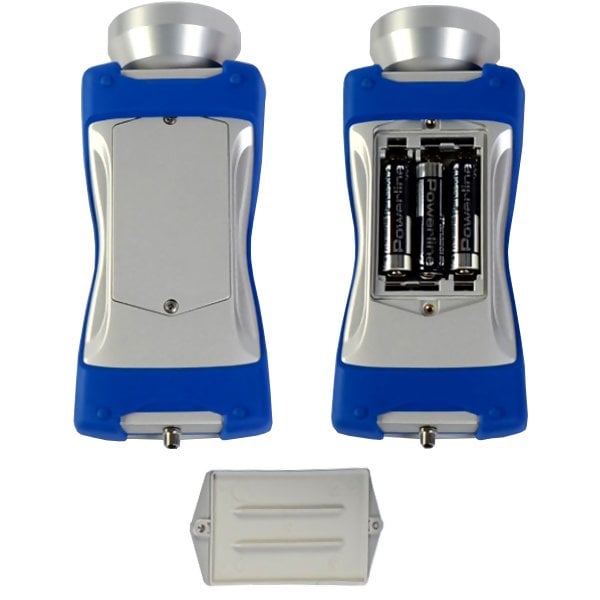

Powered by 3 AA batteries, the DS-2000LED-UV can operate even at the highest flash rates for up to six hours. An easy-to-use interface allows the operator to quickly adjust the flash speed to sync to the moving process.
A high-impact plastic housing with rubber sleeve provides additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use in harsh printing environments.
Photo Gallery
Features
- Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
- Lifetime LEDs do not wear-out or need replacement
- Three (3) AA-Batteries provide six hours of continuous use operation
- Intuitive controls allow user to quickly adjust flash rate and shift phase
- User-selected units of Hz or FPM (Flashes Per Minute)
- 2-Year warranty
- IP 65 rated housing provides protection from water jets

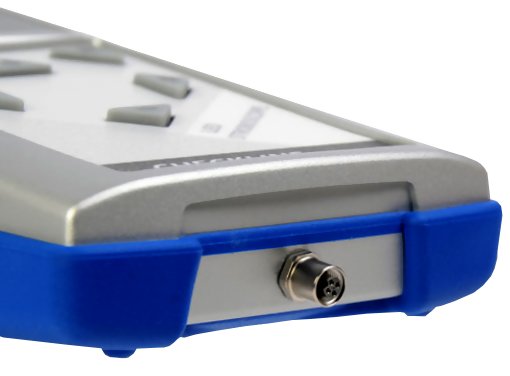

- An External Trigger Inpup signal can be used to externally control the flash rate
- The Trigger Output provides a frequency output signal which can be used by data collection devices to record flash rate
Complete Kit

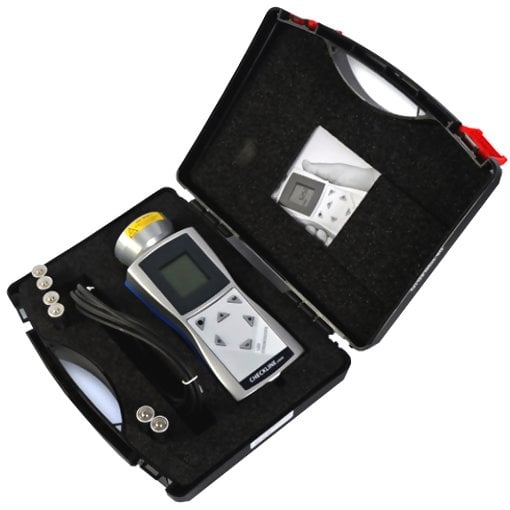

DS-2000LED-UV Strobe is supplied in foam-fitted plastic carrying case with 6x AA batteries
Specifications
| Frequency Range | 30 - 300,000 FPM (0.5 - 5000Hz) | | Flash Duration | Adjustable (1 usec up to 8522 usec) | | Accuracy | ± 0.02% ± 500ns | | Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM 1000+ | | Protection Class | IP65 (Protection from Dust and Water Jets) | | Display | LCD, multiple lines | | Certification | CE (as per EU norms) | | Power Supply | 3x AA size batteries or 3x NiMH rechargeable batteries | | Housing Material | Aluminum / ABS Heavy duty design | | Dimensions | 191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch | | Weight Approx | 400g (including batteries) | | Temperature Range | 0° - 45° C / 32° - 113° F | | Battery Life | NiMH: approx 11h at 6.000 FPM
Disposable: approx 6 h at 6.000 FPM | | Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 | | Trigger Input | 3 - 32 V, NPN + PNP
Low Level: < 1 V
Principle: Optocoupler, voltage-free | | Trigger Output | Level: max. NPR, max 32V
Pulse Length: Adjustable
Maximum current: 50mA
Reverse voltage protection: Yes
Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated | | Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 | | Warranty | 2 Years |
