世联博研公司现货供应Abq Industrial品牌订货号为的Checkline LS-3-LED Inspection Strobe Light for process and narrow web inspection产品

Price:

40 Hi-powered LEDs produces peak brightness of 5000 Lux

LED Inspection Stroboscope, 5 Inch Width covers web widths up to 10" / 25cm

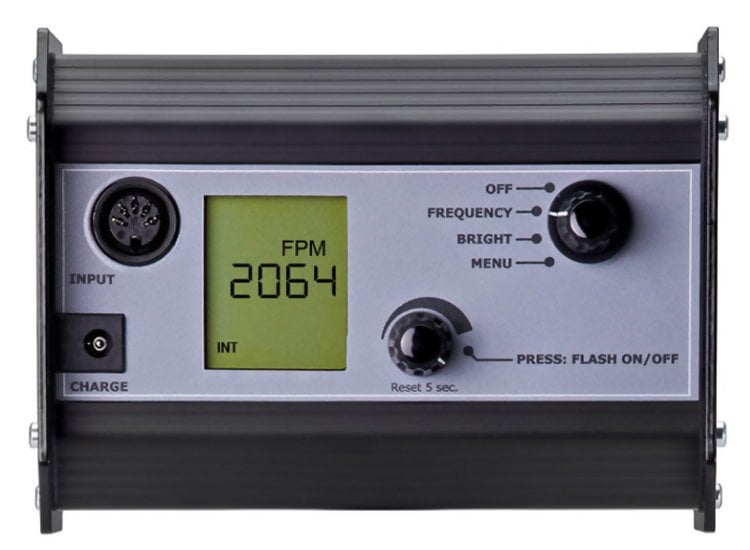

Built-in Flash Control

Adjustable brightness and image sharpness allows optimal setting for each application

LED Inspection Strobe Light for process and narrow web inspection

The new LS-3-LED is a high-performance LED stroboscope designed for inspection of webs up to 10"/25cm. Built-in strobe control allows for easy adjustment of flash rate, brightness, phase and more. External input allows syncing the strobe with a remote sensor.

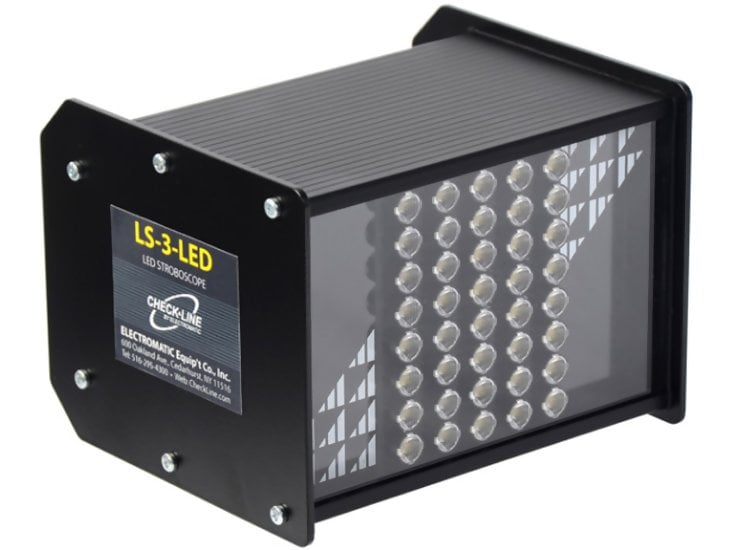

The LS-3-LED features a rugged aluminum housing with forty, high performance LEDs providing a peak brightness of 5000 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters. A convenient tripod mount allows for easy installation on a range of equipment.

line
Photo Gallery
line

line
Features
line

40 High Power LEDs produce 5000 Lux Peak Brightness
Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz, FPM, 1/MIN
Adjustable flash duration allows for optimal tuning of brightness and image sharpness
External trigger input for flash control via external sensor
Designed for fixed-mounting using 1/4"-20 Tripod Mount or 2 M5 Threaded Inserts
Supplied with AC-Adapter (100 - 265V AC)
"Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" (External Trigger Mode only)
"PRO Mode" provides additional functions including Multiplier, Delay and Memory (5 User-set Values)
Threaded mounting holes for fixed mount applications
CE Certified with 1-Year Warranty
Options include Screw-On Handle for Hand-Held use, Strobe Guards for added protection and foam-fitted plastic carrying case

line
Overview of LED Strobe Models
line

Model	LEDs	Array Size	Brightness (peak)	Housing Width	Price (US$)
LS-3-LED	40	10 x 4	5000 Lux	150 mm (6 inch)	795
LS-5-LED	80	10 x 8	6000 Lux	150 mm (6 inch)	1295
LS-9-LED	120	15 x 8	7500 Lux	230 mm (9 inch)	1995
LS-9-LED-WB	120	5 x 8 (3x)	7500 Lux	440 mm (17 inch)	2395
LS-18-LED	200	25 x 8	9000 Lux	440 mm (17 inch)	2995
LS-36-LED	480	60 x 8	14000 Lux	948 mm (37 inch)	6995

line
Complete Kit
line

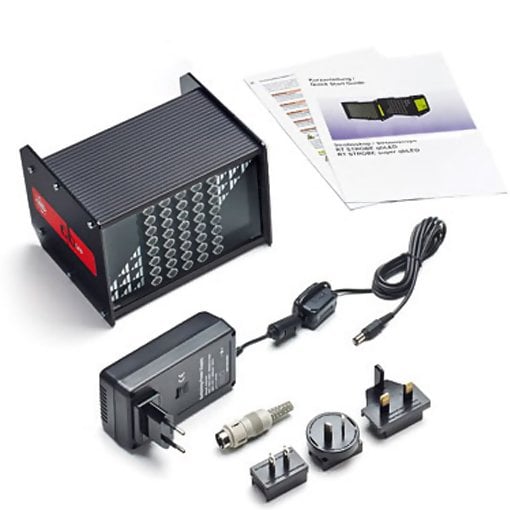

The LS-3-LED is supplied with the strobe, universal AC adapter with USA, EURO and UK plugs and DIN Connector (for use when externally triggering from sensor).

line
Specifications
line

LEDs	40 Hi-Powered LEDs in a 5x8 array
Frequency Range	30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration	Adjustable (1 usec up to 2000 usec)
Accuracy	± 0.02% (± 1-digit/±0.025usec)
Resolution	± 0.1 FPM (30 - 999) ± 1 FPM (1000 - 9999) ± 10 FPM (10,000-300,000)
Brightness	5000 Lux @ 6000 FPM / 30cm (12 inch) - and 3° Sharpness
Flash Color	Approx. 5,000 - 8000 K
Display	LCD, multiple lines
External Trigger Input	3...30 V / max. 5 mA Potential-free optocoupler DIN 41524 5-pin standard plug Uout = Uin, max. 200 mA switchable trigger input
Trigger Output	not available
Material	Aluminum
Housing Protection	IP30
Dimensions	6.0" x 5.1" x 4.4" (150 x 130 x 112mm)
Weight	2.09 lbs
Ambient temperature	0°...40°C (32°...114°F)
Storage temperature	-25°C...70°C (-10°...125°F)
Humidity	max. 95% not condensing
Certifications	Certificate of CE conformity
Warranty	1 Year

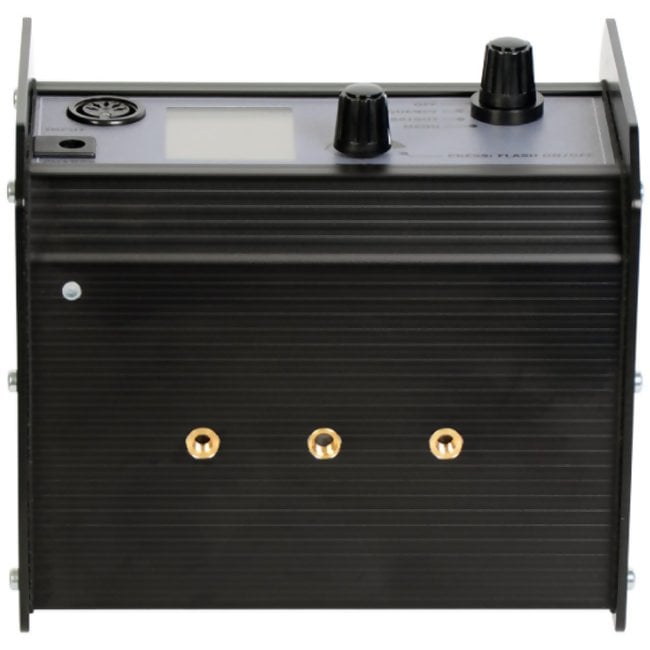

Mounting Holes	Located on underside of housing: (1) 1/4 - 20UNC in center (2) M5 Threaded Inserts (60 mm c:c) outer
Power	24V DC supplied via Universal AC Wall Plug Adapter (100-240V AC), supplied with USA, Euro and UK Plug Adapters
Default Settings	FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)
