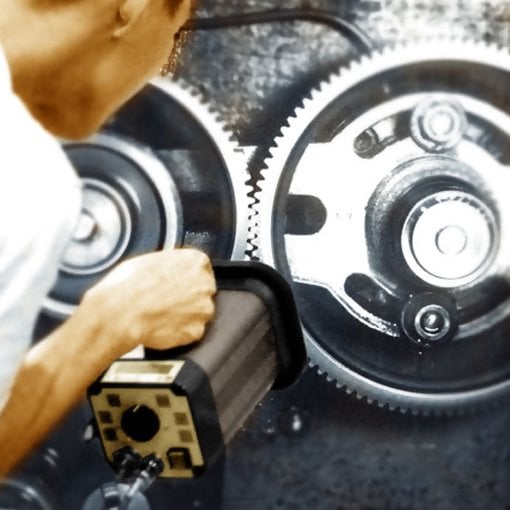

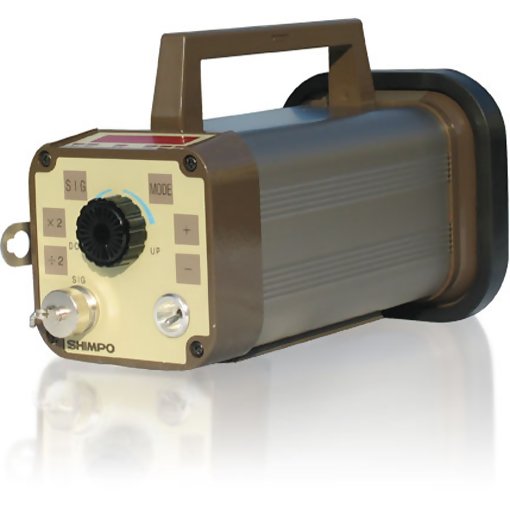

The Shimpo DT-315P NEMA 4X Stroboscope for Harsh Usage Battery Powered, NEMA 4X Stroboscope for Harsh Applications. The DT-315P is a rugged, sealed NEMA 4X (IP65) Stroboscope suitable for working in areas without AC power. The DT-315P works just like the DT-315A battery operated strobe. Equipped with Phase shifting in angle of delay (0-359 degrees) and flash time delay, (0-300 mSEC) the DT-315P is engineered for checking timing and wear on rotating and reciprocating machinery. With its rugged, metal body and NiCd rechargeable battery, the DT-315P provides the maintenance and quality professional a rugged, accurate strobetach for inspection on presses, conveyers, gear reducers, chain drives, fuel injectors, paint spray patterns, and many other harsh environment, industrial applications.
Photo Gallery
Features
- Extruded aluminum, NEMA 4X construction: Extraordinary durability yields long service life
- Internal battery supply: Lightweight; enables easy portability
- Repeatable accuracy (± 0.01% of reading): Fully meets the strictest tolerances
- Phase shift (in degrees of delay time): Enables visual analysis of rotating/reciprocating objects through all points of motion/time/angle
- Flash timer control: Prolongs flash tube life
- Manual flash controller knob: Permits easy/accurate adjustments to flash rate
- Continuous duty cycle: Eliminates downtime waiting for unit to cool
- Highly polished focused reflector: Prevents "blind" viewing areas
Specifications
| Display | 5 digit, 7 segment red LED (Character height 10mm) | | Flashtube | Xenon lamp TFU-100B-A32 | | Flashtube Power | Max. 10W | | Flashing Time | Approx. 30 µ sec | | Power | Battery: Nicd battery, 8KR – 2000 sce SANYO, Operating time: Approx. 1 hour (full charge at 3000 FPM); Battery Charge Time: Approx. 10 hours Do not operate over 10 hours continuously
External power: Disconnect the built-in battery before operating instrument by external power)
DC9 14.5V, Max. 24W (current consumption is 24W/input voltage) or operate by provided adapter; AC115V 10%, 50/60 Hz Max. 40VA | | Operating Temperature | 32 to 104 ° F (0 to 40 °C) | | Power Requirement | Power Plug & Cable for Recharging Battery Included | | Dimensions | 5.11" W x 6.22" H x 10.20" L (130 W x 158 H x 259 L mm) | | Weight | 4.6 lbs (2.1 kg) | | Warranty | 2 Years | | Included Accessories | Input/Output signal plug, rechargeable battery with AC adapter, protective case | | Internal Mode |
|---|
| Flashing Range | 60.0 ~ 3,000 FPM | | Display Accuracy | ±0.01% | | Drift | ± 0.01 (at 0 ~ 40 °C) | | Phase Shift | Use +/- push buttons (360° in 6 seconds) | | Display Update Time | 0.2 sec approx | | Output Signal | Approx. 12V | | Other Functions | ÷2. x2 Flashings, Phase shift adjustment | | External Mode |
|---|
| Flashings | Synchronous Mode: 60.0 ~ 3,000FPM
Delay mode: 200 ~ 3,000 FPM | | Delay Angle Setting Range | Delay Mode: 0 ~ 359°, Set by 1° | | Display | RPM, Synchronous mode: 60.0 ~ 3000FPM
Delay Angle, Delay mode: 0 ~ 359° or 0 ~ 300mS conversion display | | Display Accuracy | Synchronous mode: ± 0.01% plus ± 1 digit
Delay mode:+ 0 -0.2mS plus ± 1 digit | | Update Time | 1 per second | | Input Signal | H Level:2.5 ~ 12V L level:0 ~ 0.4V 50 μs or over for H.L. level Trigger at rising edge Approx. 10Ω impedance | | Sensor Power | Battery:6.8 ~ 11.0V Adapter:10.2 ~ 12.2V DC:9 ~ 14.5V : 7.8 ~ 14.1V Max. 40mA (including max 0.6V Ripple) | | Setter | Flashing, Delay angle: Jog Shuttle Mode, Display Unit: Tact Switch |
