Black Light LED Strobe for UV Inks
Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz), user adjustable
"x2" and "1/2" keys to quickly "double" or "half" the flash
1/4-20 UNC threaded bushing for permanent mount applications
AC and Battery-powered models are available

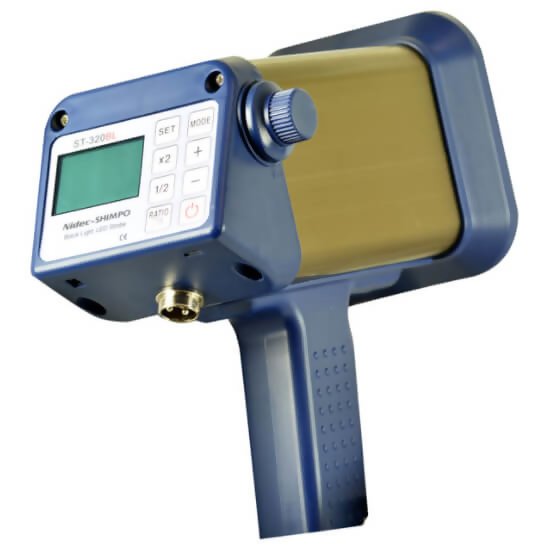

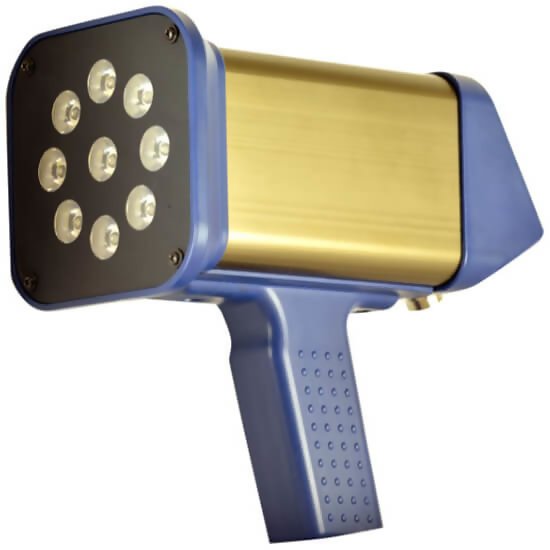

The new ST-320BL Black Light LED Stroboscope provides light in the Ultraviolet spectrum required to illuminate UV Inks used in security tags, watermarks, labels and more. The ST-320BL can be used as a hand-held portable strobe or fixed-mounted for continuous use. It features long-life LEDs that provide even light distribution and don't require replacement like conventional xenon type strobes.

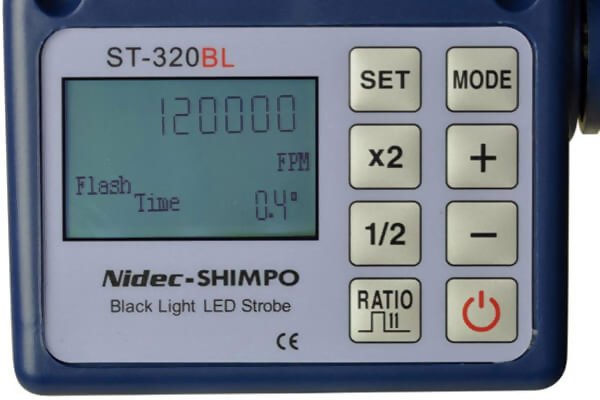

Operation is simple using an 8-button keypad and quick rate adjustment dial, combined with large, backlit LCD display. Phase shift, flash duration and flash rate are all quickly adjustable. It also features "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency. The unit can be externally-triggered from a remote sensor. The Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application.
Three models are offered; the ST-320BL-2 battery-powered version if offered with built-in rechargeable batteries supplied with a universal charger for use world wide, the ST-320BL-1 is AC-Powered for use on 115V AC and the ST-320BL-1-230V for use on 230V AC.
Features

- Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz)
- Flash rate can be set via controls on strobe or externally-triggered from a remote sensor
- "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency
- 1/4-20 UNC threaded bushing for permanent mount applications (remove trigger handle)
- User selectable units of FPM (Flashes/Min) or Hz
- Backlit LCD Dispay useful in low ambient lighting conditions
- User-selected flash durations provides optimal settings for image sharpness/brightness
- Battery-powered model ST-320BL-2 can operate continuously from supplied AC-Adapter/Charger

Specifications
 Flash Rate Range | 60 to 120,000 Flashes/Min (1-2000 Hz) | Accuracy | 0.01%±1 digit of F.S. @ 77° F (25°C) | Lamp Lifetime | Approximately 3~5 years depending on usage | Display | Backlit LCD | Resolution | 60 ~ 12,000 FPM = 0.1 FPM
12,001 ~ 120,000 FPM = 1 FPM
1 ~ 200 HZ = 0.01 Hz
201 ~ 2000 = 0.1 Hz | Flash Duration | 0.1°- 2.5° | Phase Shift | 0-359° | Power Required | ST-320BL-1 (115V AC)
ST-320BL-1-230V (230V AC)
ST-320BL-2 (Rechargeable Battery supplied with Universal Charger 100-240V AC) | Battery (ST-320BL-2) | Lithium DC 10.8V 2000mA | Battery Life (ST-320BL-2) | Approx. 12 hrs depending on setting | Input Signal | 12 V Pulse Input; 3 pin M-12 | Input Signal Range | 60-120,000 FPM (1-2000 Hz) | Input Pulse Width | Over 50 μs | Input Signal Flash Delay | 0-999 ms; 0-359° (user-set) | Temperature Limits | 32-95°F (0-35°C) | Humidity Limits | 35 to 85% RH | Approvals | CE | Warranty | 1-Year | Included Accessories | Carrying Case, ST-320BL-1: 6.5’ (2 m) AC power cord; ST-320BL-2: Power Recharging Adapter with cord |

Photo Gallery


Complete Kit

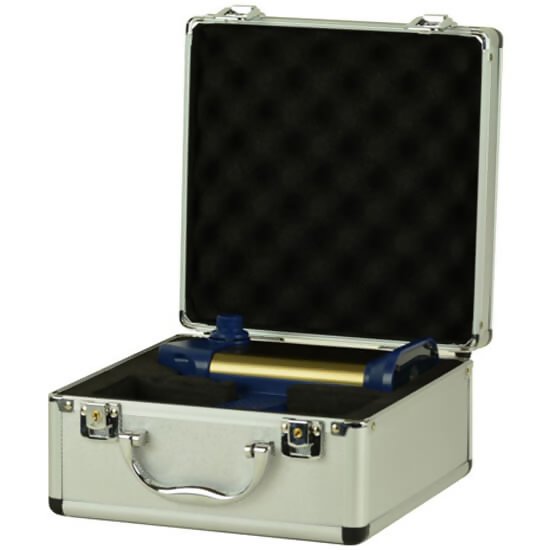

The ST-320BL is supplied as a complete kit including the strobe, foam-fitted aluminum carrying case with latches/handle and instruction manual. AC-models provided with power cord. Battery-powered model ST-320BL-2 supplied with Universal AC Battery Charger (100 - 240V AC).
