Magnetic Pick-Up Sensor
Provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole
Model Shimpo MP-10 Magnetic Pick-Up Sensor a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output volate is directly proportional to the change in magnetic flux intensity over the change in time.
Mounting
Unit will mount in a 5/8" threaded hole and is provided with 2 jam nuts to secure the sensor.
Adjustment
Pickup should be adjusted for a typical clearance of .01" between sensor and gear. This adjustment will provide excellent sensitivity and resolution.
Temperature Range
-40° F to 221° F
Connections | Lead Wire | Shield | White | Black |
|---|
Tachometer
Terminal | E | SIG | OV |
Bare: Sensor cable shield
White: Signal output lead
Black: Sensor common

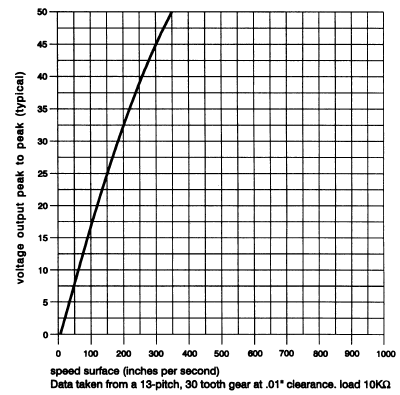

Speed vs. Voltage

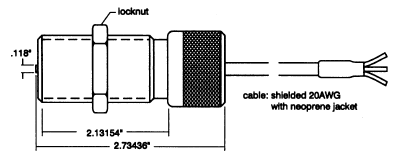

Dimensions
