Optex Thermo-Hunter PT-U80
Portable Non-Contact Infrared Thermometer with USB Output
Measuring Range:
-30.0 to +600.0ºC
-22.0 to +1112.0ºF
Features
EL (electroluminescence) back light
Coaxial laser marker
High/Low alarm
Emissivity adjustment: 0.3 to 1.20 in 0.01 increments
PC connection: USB output
Continuous measurement function
Field-Of-View:
30/1000mm (D:S = 33:1)
Large LED indicator
Max/Min display
Includes protective carrying case
35-point memory
Clock and Time Alarm

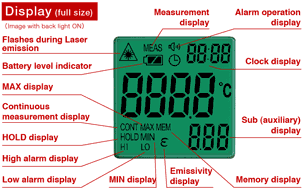

Display
Applications
Checking for abnormal
heating in bearings
Checking for hot spots in an electrical panel
Specifications
Measuring Range
-30 to 600ºC (-22 to +1112ºF
Field-Of-View
30mm/1000mm (D:S=33:1)
Optics
Si lens
Sensing Element /
Wavelength
Thermopile/8 to 14 µm
Response Time
0.5s/90%
Accuracy (e=0.95)
-30.0 to 0°C:3°C,0.1°C to 200°C:2°C,201°C to 600°C:1%
Display Resolution
-30.0 to 199.9ºC (-22.0 to 391.8ºF): 0.1ºC/ºF
200 to 600ºC (392 to 1112ºF): ±1%
Repeatability
±1ºC (2ºF) of reading value
Sighting method
Coaxial Laser Marker (Class 2)
HOLD time
15s
Continuous
Measurement Mode
On/Off Selectable
USB Output
Available (cable included)
Data Storing
35-point Memory
Back-light function
EL back light
Emissivity adjustment
0.3 to 1.20 in 0.01 steps
Hi / Lo Alarm
LED / Buzzer
Alarm LED, Buzzer (On/Off Selectable)
Display Functions
NOR/MAX/MIN
Power supply
2 (two) AA alkaline batteries (included)
Battery life
(alkaline)
15 hours (with max load)
Ambient temperature
0 to 50ºC (32 to 122ºF)
Ambient humidity
35 to 85% RH (no condensation)
Storage temperature
-10 to 60ºC
Material
ABS/TEEE
Dimensions
182 x 56 x 38 mm (7.16" x 2.2" x 1.5")
Weight
(incl. batteries)
230 g (8 oz)
Related Products
HB-250 Black Tape
The emissivity conversion black adhesive tape is designed for more accurate measurement of target objects with high reflectance (shiny) surfaces. Apply HB-250 on the surface of the target and measure the area covered by HB-250 with an emissivity setting of 0.95. Usable to 480ºF (250ºC)
