Combination Contact / Non-Contact Tachometer with USB Output
Continuous Data-Logging, Optional Windows Software
Measuring Range:
Non-Contact - 1.00 - 99,999 rpm
Contact - 1.00 - 25,000 rpm
Warranty: 2 Years

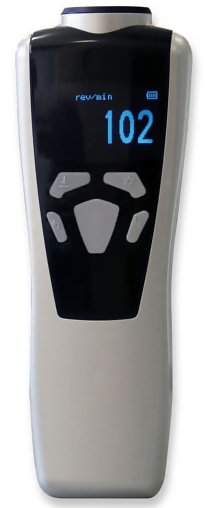

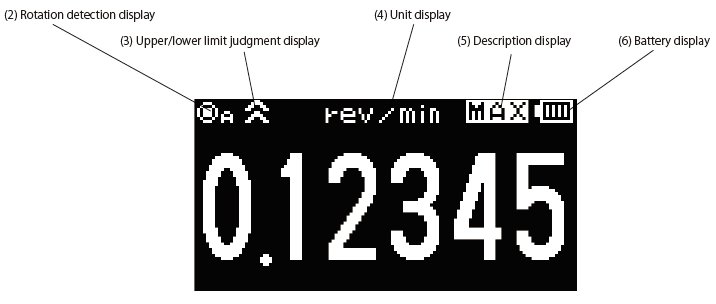

The Shimpo DT-2100 Tachometer with USB Output is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.
In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.

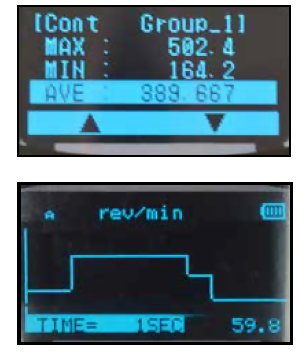

Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100's display or download to a computer using the optional PC Software.

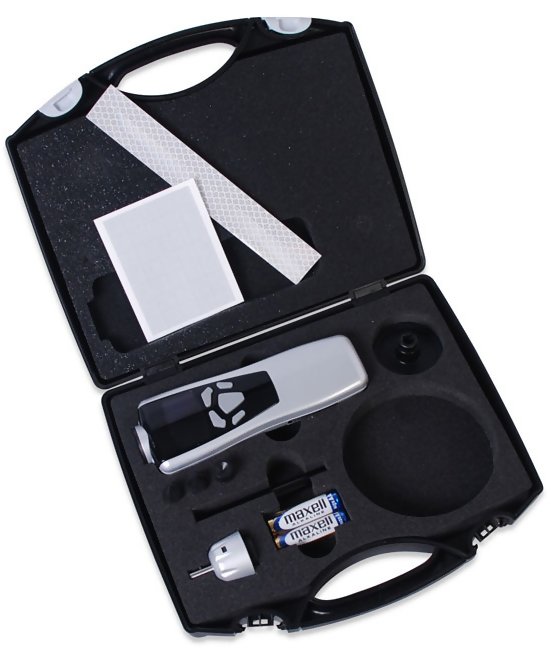

The DT-2100 is supplied as a complete kit with 2 cone tip adapters, funnel tip adapter, shaft extension, 6 inch circumference surface speed wheel, reflective tape, 2 AA batteries ... all supplied in a foam-fitted carrying case. An NIST-Traceable Calibration Certification is optionally available.
Photo Gallery
Features
Data Logging with Continous, Single Unit or Statistics modes
View data and statistics on tachometer display or with optional Windows software
Built-in Memory with USB Data Output
Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
Non-Contact length measuring mode (requires reflective tape or edge of roller)
Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
On-screen hi-lo limits for pass/fail analysis
Auto-detection of contact adapter
Reversible Display
1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod
Video
Specifications
Range
6-99,999 rpm Non-contact
0.8-25,000 rpm Contact
Accuracy
±0.006% of reading ±1 least significant digit
Measuring Units
Speed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph
Distance: cm, m, km, in, ft, yd
Memory
Continuous Mode: 1000
Single Mode: 100
Statistics Mode: 100
Laser Sensing Distance
2 inches up to 13.1 Feet (5 to 400 cm)
Display
Graphical Blue Light OLED, reversible
Display Update Time
Selectable: 100 ms, 500 ms, 1 sec, 5 sec
Power
2 AA 1.5V batteries or USB
Battery Life
Approx: 20 hours with brightness set to 20%
Temperature Limits
32º - 113ºF (0º - 45ºC) Non-Condensing
Construction
Polycarbonate
Dimensions
6.1” x 2.2” x 1.4” (155 x 55 x 35 mm)
Product Weight
4.14 oz (125 g)
Approvals
CE, RoHS, PSC, FDA, IEC/EN 60825-1 : 2007
Warranty
2-Year
Included Accessories
2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case
Complete Kit
The DT-2100 is supplied as a complete kit with tachometer, 2 cone adapters, funnel adapter, 3.5” extension shaft, surface speed wheel (6” circumference), reflective tape, 2 AA batteries, contact adapter in a foam-fitted carrying case
