DT-205LR LCD Display with 6" Circumference Measuring Wheel
DT-205LR-12 LCD Display with 12" Circumference Measuring Wheel
DT-207LR LED Display with 6" Circumference Measuring Wheel
DT-207LR-12 LED Display with 12" Circumference Measuring WheelThe Shimpo DT-205LR DT-207LR Handheld Tachometer NSN 6680-01-378-6490 combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation. NSN 6680-01-378-6490
Features
- High-precision laser measures from distances up to 14 feet
- LCD Version for use in sunlight and for longest battery life
- LED version for use in poorly lit or dark environments
- Includes 6" circumference surface speed wheel
- Built-in memory for last, maximum, minimum and 10 separate readings
- Includes Traceable calibration Certificate
- DT-205LR NSN: 6680-01-378-6490
Photo Gallery

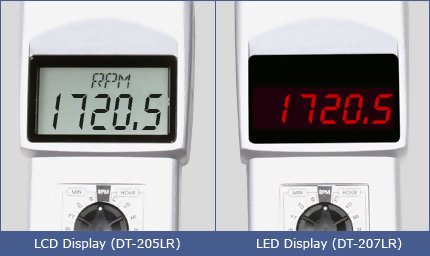

LCD Display vs LED Display
Complete Kit
All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries and an operating instruction manual - all supplied in a foam-fitted carrying case.
Note: On DT-205LR-12 and DT-207LR-12 models 12" circumference wheel is supplied instead of 6" version
Specifications
| Measuring Range | Non-Contact - 6 to 99,999 rpm
Contact - 0.8 to 25,000 rpm | | Accuracy | 6 to 8,299 rpm: ±1 rpm
8,300 to 24,999 rpm: ±2 rpm
25,000 to 99,999 rpm: ±0.006% rpm | | Resolution | Non-Contact Mode: 1 RPM
Contact Mode: 0.1 RPM | | Display | DT-205LR: (LCD MODEL) 5 digit 0.47" (12mm) high
DT-207LR: (LED MODEL) 5 digit 0.4" (10mm) high | | Measurement Units | Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters | | Measuring Distance | 14 feet (4.2 m) maximum | | Detection | Laser Diode, Class II | | Memory | 13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements) | | Over-Range Indicator | Flashing numerals | | Update Time | 1 second (typical) | | Batteries | 2 - 1.5 V AA | | Battery Life | DT-205LR Approx 40 hrs
DT-207LR Approx 25 hrs | | Low Voltage Indicator | DT-205LR Flashing "LO BAT" display
DT-207LR "B" display | | Operating Temp | 32 to 113° F (0 to 45° C) | | Construction | Die-cast aluminum housing | | Weight | 0.8 pounds (365 grams) | | Dimensions | 6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7) | | Warranty | 2 years |
