Intrinsically Safe Tachometer
Type: Combination Contact & Non-Contact
Measuring Range:
Non-Contact - 3.00 - 99,999 rpm
Contact - 3.00 - 99,999 rpm
Display Type: LCD
Housing Material: High Flow ABS - Metalised
Warranty: 1 year

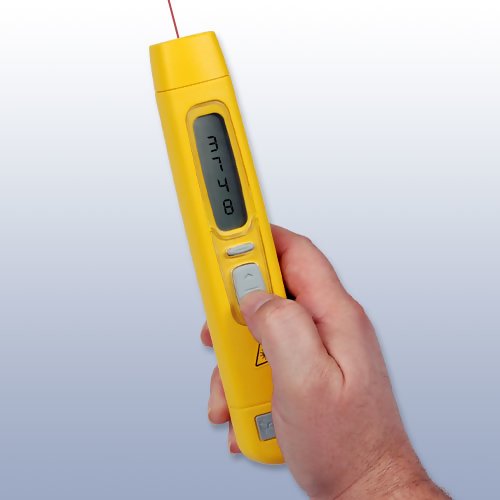

The new Compact ET-2109LSR Intrinsically Safe Handheld Tachometer explosion proof handheld tachometer is certified EEx ia IIC T4 - ATEX II 2 G to allow for use in a wide range of hazardous environments including petrochemical, Gas & volatile materials processing industries. The ET-2109LSR is not certified for use in Mines
Features
- Explosion-Proof Housing
- Vertical display with 180° inversion capability
- Includes calibration certificate
- Memory holds last reading for 1 minute
Photo Gallery
Accessories
Specifications
| Measuring Range | 3.0 - 99,999 rpm
0.3 - 1,500.0 Meters or Yards/min
(4,500 ft/min) or seconds | | Resolution | .001 rpm | | Accuracy | 0.05% ±1 digit | | Optical Sensing Range | 2 - 80" / 50 - 2000mm | | Update Time | 0.8 sec | | Capture Mode | 0.1 Sec | | Count | 0-99999 revs or length in linear | | Time Interval | 0-99999 seconds (auto) | | Memory Hold | Holds last reading for 1 minute | | On Target Indicator | Yes | | Housing Material | High Flow ABS - Metalised | | Batteries | 4xAAA supplied | | Dimensions | 21 L x 4 W x 3.5 D - cm | | Measuring Wheel | Included, 0.1 meter circumference | | Weight (kit) | 0.4 Kg | | Warranty | 1 year | | Sensing Distance | 1 meter (39 inches) | | Battery Life | 6 hours continuous (shorter when using rechargeable type | | Display Update Rate | 0.8 seconds/update (0.1 sec for Max Value capture) |
Complete Kit
The ET-2109 handheld tachometer is supplied as a complete kit with the tachometer, reflective tape, contact adapter, calibration certificate, instruction manual, 4xAAA batteries all in a hard plastic carrying case.

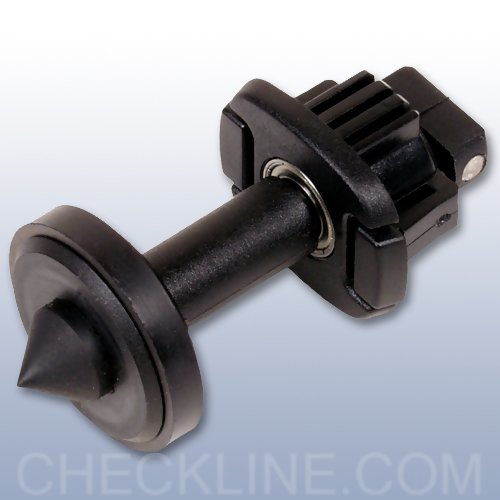

Combination Contact Adapter/Surface speed & length Adapter Included.
