产品名称 Checkline QH2 Portable Leeb Hardness Tester for Steel
产品货号
产品价格 现货询价,电话:010-67529703
产品规格
产品品牌 Abq Industrial
产品概述
产品详情 Description
Price:
Portable Leeb Hardness Tester for Steel
± 4 HLD Accuracy

QH2 Leeb hardness testers are used to conduct quick and precise measurements on all types of parts and structures made out of steel, stainless steel and alloy tool steel with immediate conversions to the most common hardness units.

Applications

  • Measure large parts in-situ
  • Conduct checks in production
  • Verify finished products
  • Classify materials
  • Identify material types

line
Features
line

  • Accuracy of ± 4 HLD
  • Conversions to HB, HRC,HRB, HV, HS
  • Measuring range of up to 647 HB and 68HRC
  • Measures in all directions
  • Large graphic LCD with LED backlight
  • Transfer data to a PC via USB ( QH2 DLS )
  • High impact ABS enclosure
  • 5 Year Warranty

line
Model Comparison
line

Model Comparison QH2 SQH2 DLS
Measure Steel, Stainless Steel and Alloy Tool Steel
Measure Steel, Stainless Steel and Alloy Tool Steel
Transfer Data to a PC


line
Units and Measuring Ranges
line

SteelStainless SteelAlloy Tool Steel
B80 - 64785 - 655-
HV80 - 94085 - 80280 - 935
HRB38 - 9946 - 101-
HRC20 - 6820 - 6220 - 67
HS32 - 99--


line
DataCenter Software
line

DataCenter is software used to transfer data stored in the unit memory to a PC using a USB cable (model QH2 DLS)

line
Specifications
line

Measuring PrincipleLeeb rebound method
Impact deviceUniversal type D
Impact directionsAll angles
Accuracy± 4 HLD
Measuring range150 ~ 990 HLD
AlarmsMinimum and maximum
Power supply2 AA 1.5v batteries
Battery lifetime100 hours
Operating temperature0°C to +50°C
Dimensions69 x 115 x 28 mm
Weight200g with batteries


line
Related Products
line

QH5
Leeb Hardness Tester, Rebound Hardness

  • Meets ASTM A-956 standards
  • Converts from HL to selected hardness units
related

line

QH7
Heavy Duty Portable Hardness Tester

related

line
Complete Kit
line

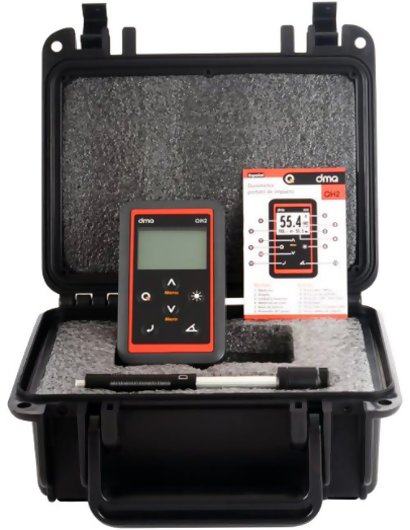

The QH2 comes complete with impact device, quick users guide, certificate of conformity and carrying case. DOES NOT include HLD test block. The QH2 DLS include a USB cable and DataCenter.
