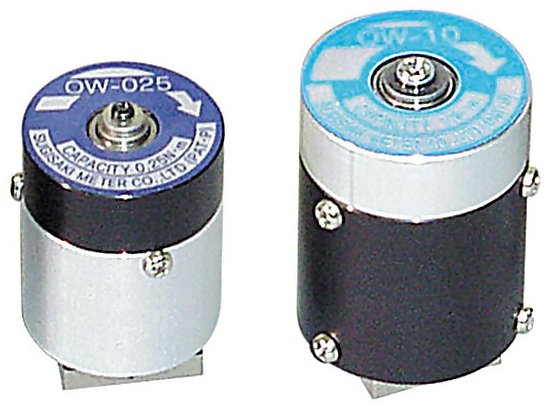

The Cedar Series I Digital Torque Testers measure the peak torque of non-impact electric/air drivers. Under tightened bolts and screws do not generate sufficient clamp force and can lead to loosening and assembly failure. Over tightening, past the yield point, permanently deforms the screw joint and can also lead to failure which is why proper tightening torque is so important. Manual torque wrenches can also be calibrated. Unique Smart Adapters
The unique Smart Adapters simulate the screw joint and do not need to be backed-off after each test. This features increases testing efficiency and ease of use by reducing the time between each test. Results can be downloaded through the USB port for analysis with data acquisition software. The Series i torque calibrators are compatible with SW-1SV-USB software. The peak torque or peak down torque in breakaway tests is captured automatically. The Series i torque calibrator displays Max, Min and Avg statistics. The tester can read values in lbf-in, kgf-cm, N-cm and N-m. What’s Included All series i torque testers are sold in kit form complete with tester, hard carrying case, 2 driver adapters and AC charger/adapter. All testers come with a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge. Do not use with impact or air tools (Ask for DI-1M impact wrench torque tester).

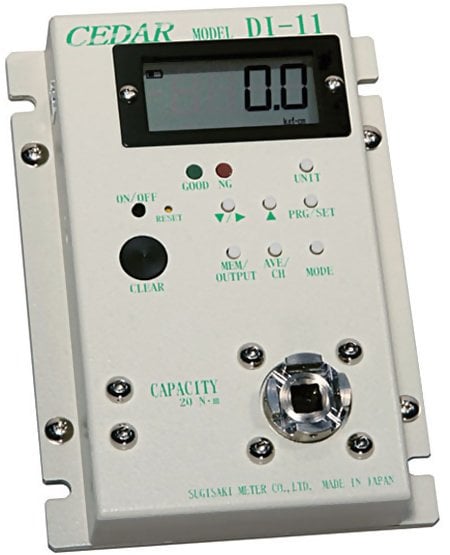

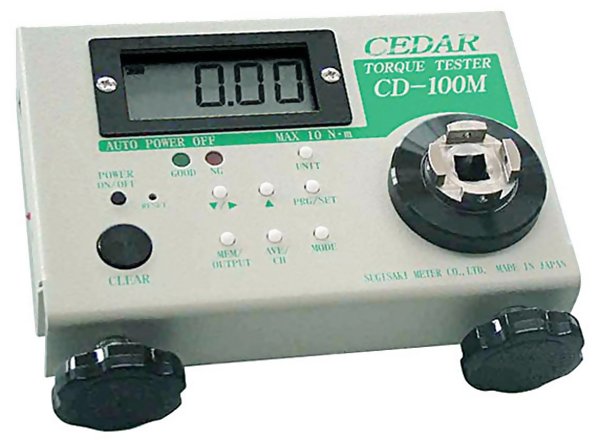

Photo Gallery
Features
- Capacities up to 174 lb-in / 20 Nm
- Selectable units lbf-in, Kgf-cm, N-cm and N-m
- Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
- 2 – driver adapters included: i-8 & i-80 come with smart adapters, CD-150 & DI-11 come with spring adapters
- Peak, Real Time and Peak Down measuring modes (selectable)
- Measure both clockwise and counterclockwise
- USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
- Statistics: number of data, Max, Min, Avg
- Heavy-duty metal construction
- Runs on internal NiCad batteries or AC adapter
- 3/8 drive for socket wrenches
Force Ranges
| Model | Capacity | Resolution |
|---|
| i-8 | 7 lb-in
8 kg-cm
78.6 N-cm | 0.001 lb-in
0.001 kg-cm
0.01 N-cm | | i-80 | 70 lb-in
80 kg-cm
7.86 Nm | 0.01 lb-in
0.01 Kg-cm
0.001 Nm | | CD-150M | 130 lb-in
150 kg-cm
15 Nm | 0.1 lb-in
0.1 Kg-cm
0.01 Nm | | DI-11 | 174 lb-in
200 kg-cm
20 Nm | 0.1 lb-in
0.1 Kg-cm
0.01 Nm |
Accuracy: ±0.5% F.S., ±1 LSD

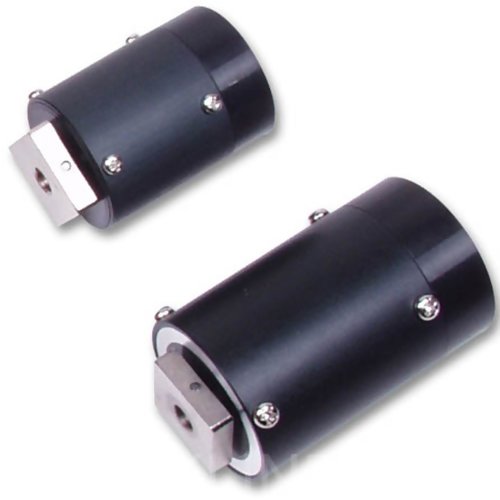

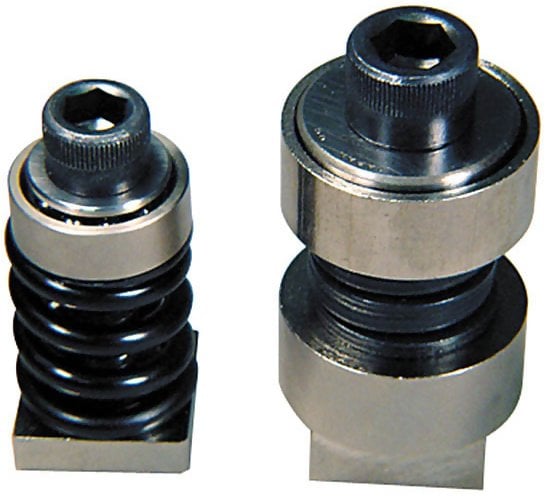

Standard Adapters
Specifications – Standard Driver Adapters (2 included) | i-8 | i-80 | CD-130 | | Adapter | Smart Adapters | Spring Adapters | | Smart Adapters OW-025E, OW-10E, OW-20E, OW-60E | Spring Adapter SJ-50, SJ-100 | | Model | OW-025E | OW-10E | OW-20E | OW-60E | SJ-50 | SJ-100 | | Range lb-in | 2 | 9 | 18 | 53 | 8 ~ 50 | 50 ~ 130 | | Mechanical life | 10,000 hrs. | 8,000 hrs. | 5,000 hrs. | 5,000 hrs. | 2500 times | | Screw on top | 6-32 | 6-32 | 8-32 | 1/4-20 | 5/16-18 | 3/8-16 | | Plug to socket | 3/8" square x 5/32" (20 mm square x 4 mm) |
Optional Metric Smart Driver Adapters | Model number | OW-025 | OW-10 | OW-20 | OW-60 | | Range | 25 N-cm | 100 N-cm | 200 N-cm | 600 N-cm | | Screw on top | M2P0.4 | M3P0.5 | M4P0.7 | M6P1 |
Complete Kit

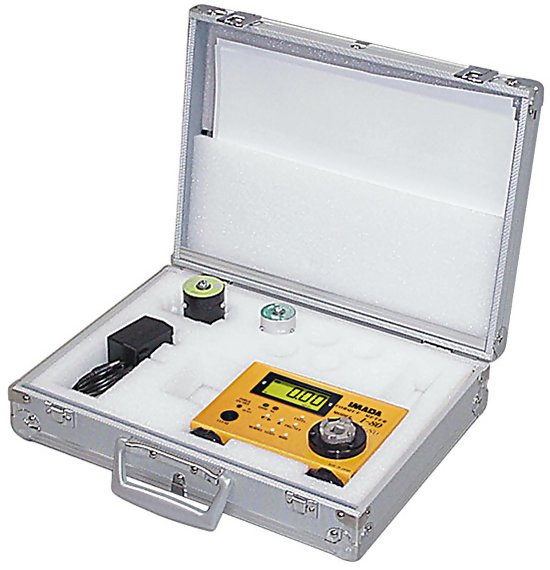

The Series I is supplied as complete kit in a foam fitted aluminum carrying case, including 2 smart adapters, ac adapter, NIST-Traceable Calibration certificate and instruction manual.
