The Z2S-LM are high performance digital force gauges that feature a separate sensor that is designed for measuring compression. A standard six foot cable connects the gauge to the sensor. The Z2S-LM unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint. Store up to 1,000 values in memory, which can be displayed or transmitted using the serial, or optional USB output port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons
Features
- Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
- Reversible display
- RS-232C, Digimatic and Analog outputs
- 1,000 Data memory for computer download
- lbf, kgf, and N units are push button selectable
- Runs on internal NI-MH batteries or AC adapter
- Ergonomic design with non-slip rubber grip, heavy duty metal construction
- Overload capacity 200% of F.S.
- Real time and peak mode (selectable)
- Overload alarm and output signal
- Low battery indicator
- External switch display hold and clear
- USB Output offered on model ZPS-LM-xxxx, select option USB Output
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- 2 Year Warranty
Force Ranges
| Model | Capacity | Resolution | | Z2S-LM-0.4 | 7.00 oz
200 g
2 N | 0.01 oz
0.1 g
0.001 N | | Z2S-LM-1 | 18 oz
500 g
5 N | 0.01 oz
0.1 g
0.001 N | | Z2S-LM-4 | 4.4 lb
2 Kg
20 N | 0.001 lb
0.001 Kg
0.01 N | | Z2S-LM-11 | 11 lb
5 Kg
50 N | 0.01 lb
0.001 kg
0.01 N | | Z2S-LM-44 | 44 lb
20 Kg
200 N | 0.01 lb
0.01 Kg
0.1 N | | Z2S-LM-110 | 110 lb
50 Kg
500 N | 0.1 lb
0.01 kg
0.1 N | | Z2S-LM-220 | 220 lb
100 Kg
1000 N | 0.1 lb
0.1 Kg
0.1 N | | Z2S-LM-440 | 440 lb
200 Kg
2000 N | 0.1 lb
0.1 Kg
1 N | | Z2S-LM-1100 | 1100 lb
500 Kg
5000 N | 1 lb
0.1 Kg
1 N | | Z2S-LM-2200 | 2200 lb
1000 Kg
10000 N | 1 lb
1 Kg
10 N | | Z2S-LM-4400 | 4400 lb
2000 Kg
20000 N | 1 lb
1 Kg
100 N |

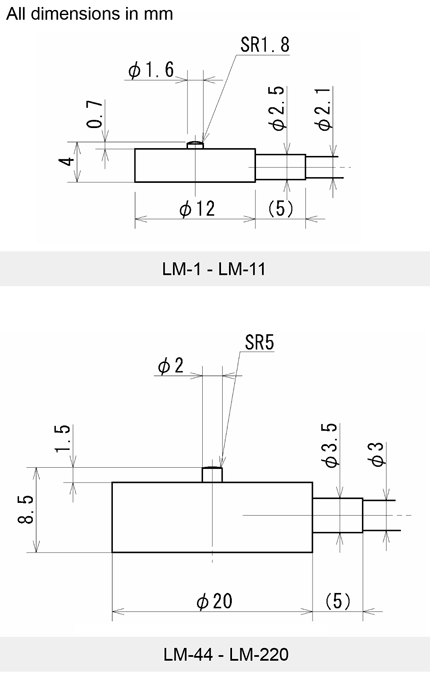

Dimensions
Complete Kit
The Z2S-LM Includes 6' cable, AC adapter/charger and carrying case
Specifications
| Accuracy | | | Selectable units | Pounds, Kilograms or Newtons | | Display | 4 digit, 12 mm high | | Overload capacity | 200% of F.S.
(Overload indicator flashes beyond 108% of F.S.) | | Zero adjustment (Tare) | 10% Full scale | | A/D Converter | 14 bit | | Output signal | RS 232 C (8, 1, N, 2400),
analog ± 1 V DC,
Mitutoyo Digimatic
USB - Optional | | Temperature range | 32° to 100°F (0° to 40°C) | | Air humidity | 85% RH, max. | | Low battery indicator | Display flashes when battery is low | | Power supply | Rechargeable NiCd battery pack
and/or 230 AC Adapter | | Housing dimension | 215 x 65 x 51 mm (L x W x H) | | Weight, net (gross) | approx. 100% g (1300 g) | | Warranty | 2 Years |
Related Products
MESURgauge
Mesurgauge Load & Travel Analysis Software - Sends data from a force or torque gauge and travel display to a PC for further analysis
| |
