The Z2S-DPU are high performance digital force gauges that feature a separate sensor that is ideal for confined spaces or difficult to reach measurements. All standard sensors are good for both compression and tension. A standard six foot cable connects the gauge to the sensor. The Z2S-DPU unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint. Store up to 1,000 values in memory, which can be displayed or transmitted using the serial, or optional USB output port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf or Newtons.
Features
- Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
- RS-232C, Digimatic and Analog outputs
- 1,000 Data memory for computer download
- lbf, kgf, and N units are push button selectable
- Real time and peak mode (selectable)
- Overload alarm and output signal
- Low battery indicator
- Reversible display
- Overload capacity 200% of F.S. (push/pull)
- Runs on internal NI-MH batteries or AC adapter
- External switch display hold and clear
- Z2S-DPU model provides data output in RS-232 format
- ZPS-DPU model provides data output in USB format
- To order ZPS-DPU model in BUY NOW section, select option USB-OUT
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- 2 Year Warranty

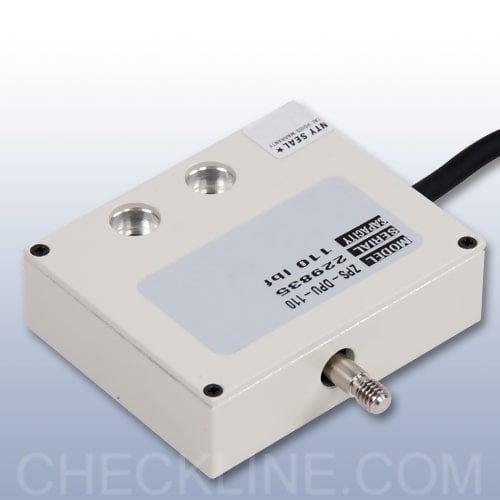

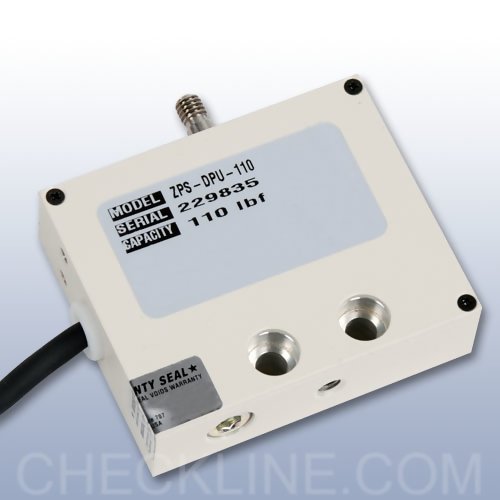

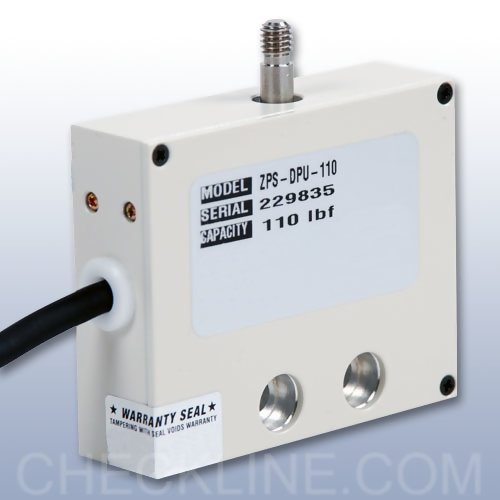

Photo Gallery
Force Ranges
| Model | Capacity | Resolution | | Z2S-DPU-0.4 | 7.00 oz
200 g
2 N | 0.01 oz
0.1 g
0.001 N | | Z2S-DPU-1 | 18 oz
500 g
5 N | 0.01 oz
0.1 g
0.001 N | | Z2S-DPU-4 | 4.4 lb
2 Kg
20 N | 0.001 lb
0.001 Kg
0.01 N | | Z2S-DPU-11 | 11 lb
5 Kg
50 N | 0.01 lb
0.001 kg
0.01 N | | Z2S-DPU-44 | 44 lb
20 Kg
200 N | 0.01 lb
0.01 Kg
0.1 N | | Z2S-DPU-110 | 110 lb
50 Kg
500 N | 0.1 lb
0.01 kg
0.1 N | | Z2S-DPU-220 | 220 lb
100 Kg
1000 N | 0.1 lb
0.1 Kg
0.1 N | | Z2S-DPU-440 | 440 lb
200 Kg
2000 N | 0.1 lb
0.1 Kg
1 N | | Z2S-DPU-1100 | 1100 lb
500 Kg
5000 N | 1 lb
0.1 Kg
1 N | | Z2S-DPU-2200 | 2200 lb
1000 Kg
10000 N | 1 lb
1 Kg
10 N | | Z2S-DPU-4400 | 4400 lb
2000 Kg
20000 N | 1 lb
1 Kg
100 N |
All Ranges Are Available for Z2S (RS232 Output) or ZPS (USB Output)
Specifications
| Accuracy | ± 0.2% Full scale ± 1 digit | | Selectable units | Pounds, Kilograms or Newtons | | Display | 4 digit, 12 mm high | | Overload capacity | 200% of F.S.
(Overload indicator flashes beyond 108% of F.S.) | | Zero adjustment (Tare) | 10% Full scale | | A/D Converter | 14 bit | | Output signal | RS 232 C (8, 1, N, 2400),
analog ± 1 V DC,
Mitutoyo Digimatic
USB - Optional | | Temperature range | 32° to 100°F (0° to 40°C) | | Air humidity | 85% RH, max. | | Low battery indicator | Display flashes when battery is low | | Power supply | Rechargeable NiCd battery pack
and/or 230 AC Adapter | | Housing dimension | 215 x 65 x 51 mm (L x W x H) | | Weight, net (gross) | approx. 100% g (1300 g) | | Warranty | 2 Years |
Related Products
SW-1
Data Acquisition Software for Force Gauges & Torque Gauges - Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
| |
ZP Recorder
Force Data Analysis Software
- Process 1,000 data/second not just the peak
- Zoom in to examine important details
- Generate statistics for all or part of the graph
| |
Z2S-LM
Digital Force Gauge with Remote Compression Sensor
| |
MESURgauge
Mesurgauge Load & Travel Analysis Software
- Sends data from a force or torque gauge and travel display to a PC for further analysis
| |
Complete Kit
The Z2S-DPU Includes 6' cable, AC adapter/charger and carrying case
