Mark-10 High Capacity Wire Terminal Grip
2000 lb capacity
Accommodates wire diameters up to 0.46 (11.8)
Capacity of 2000 lb (900 Kg/9 kN) The grip secures wire terminals, cables, connectors, and other samples for high capacity wire terminal pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.46 in. (11.8 mm). The wheel is machineable for larger samples.
To operate, simply rotate the turret wheel to the desired size. For unique sample shapes and sizes, the wheel may be machined as required.

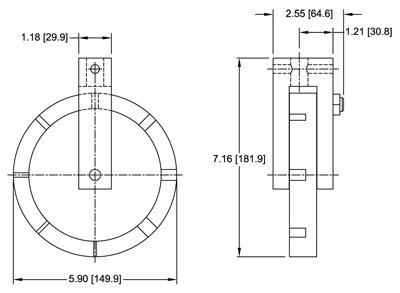

Dimensions
Specifications
| Groove sizes | 0.08 (2.0), 0.12 (3.0), 0.16 (4.0), 0.20 (5.0), 0.24 (6.0), 0.31 (8.0), 0.39 (10.0), 0.46 (11.8) | | Capacity | 2,000 lbF (9 kN) | | Weight | 6.4 lb (2.9 kg) |
