Used to determine the opening force of flat folded cartons along their score lines. Ideal for numerous applications in the packaging, food and beverage, medical device, consumer products, and many other industries

Upper and lower fixtures are easily removable.

Use this grip with a choice of test stand and force gauge to create a complete opening force testing system.

Mounts directly to the following test stands: ESM, ESM301, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional 14-1068 mounting plate). A motorized test stand is recommended.

Features

• Set of upper lower dies provided to accommodate various sized packaging materials
• Maximum force: 50 lbF (250 N)
• Fixtures are easily removable
• Weight:
  • Upper die:0.10 lb [0.05 kg]
  • Lowe die:0.06 lb [0.03 kg]

Photo Gallery

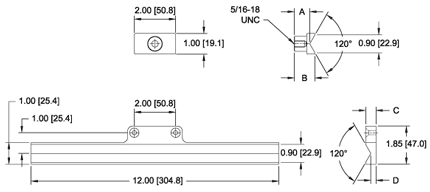

Dimensions
