Rugged "S-beam" force sensor

8 Ranges up to 10,000 lbs

Measures tensile and compressive forces

The Mark-10 R01 S-Beam Force Sensoris a rugged S-Beam force measurement sensor for tensile and compressive forces up to 10,000 lb. Durable S-Beam architecture allows for many applications and setups. Solid steel construction ensures many years of use in factory or laboratory environments.

line
Features
line

Unique Plug & TestTM connector holds all calibration and configuration data
Measures tensile and compressive forces
NIST-traceable certificate of calibration included
Warranty: 3 years

line
Photo Gallery
line

line
Force Ranges
line

Model	lbf	ozf	gf	kgf	N
MR01-50	50 0.02	800 0.5	25000 10	25 0.01	250 0.1
MR01-100	100 0.05	1600 1	50000 20	50 0.02	500 0.5
MR01-200	200 0.1	3200 2	-	100 0.05	1000 0.5
MR01-500	500 0.2	8000 5	-	250 0.1	2500 1
MR01-1000	1000 0.5	16000 10	-	500 0.2	5000 2
MR01-2000	2000 1	32000 20	-	1000 0.5	10000 5
MR01-5000	5000 2	-	-	2500 1	25000 10
MR01-10000	10000 5	-	-	5000 2	50000 25

line
Specifications
line

Accuracy	± 0.15% of full scale ±1 digit + indicator
Weight	From 1.9 lbs (0.9 kg) to 3 lbs (1.4)
Warranty	3 Years

line
Related Products
line

Series-3I
Advanced Force/Torque Indicator

Interchangeable force and torque sensors through Plug & Test™technology
USB data output

line

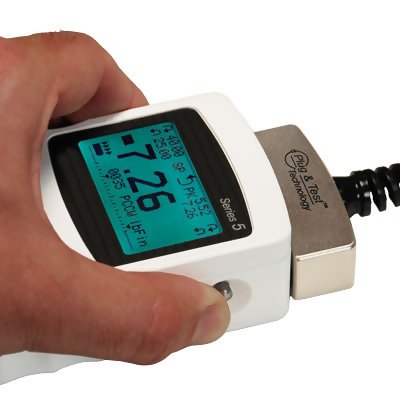

Series-5I
Advanced Force/Toruqe Indicator

Interchangeable force and torque sensors through Plug & Test™ technology
1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

line
Downloads
line

R01 S-Beam Force Sensor - Data Sheet
